8020 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1970) MODEL 8020 WITH GRASSCATCHER SELF-PROPELLED SPECIAL MOWER PARTS LIST Parts Diagram

Walk-Behind Mower

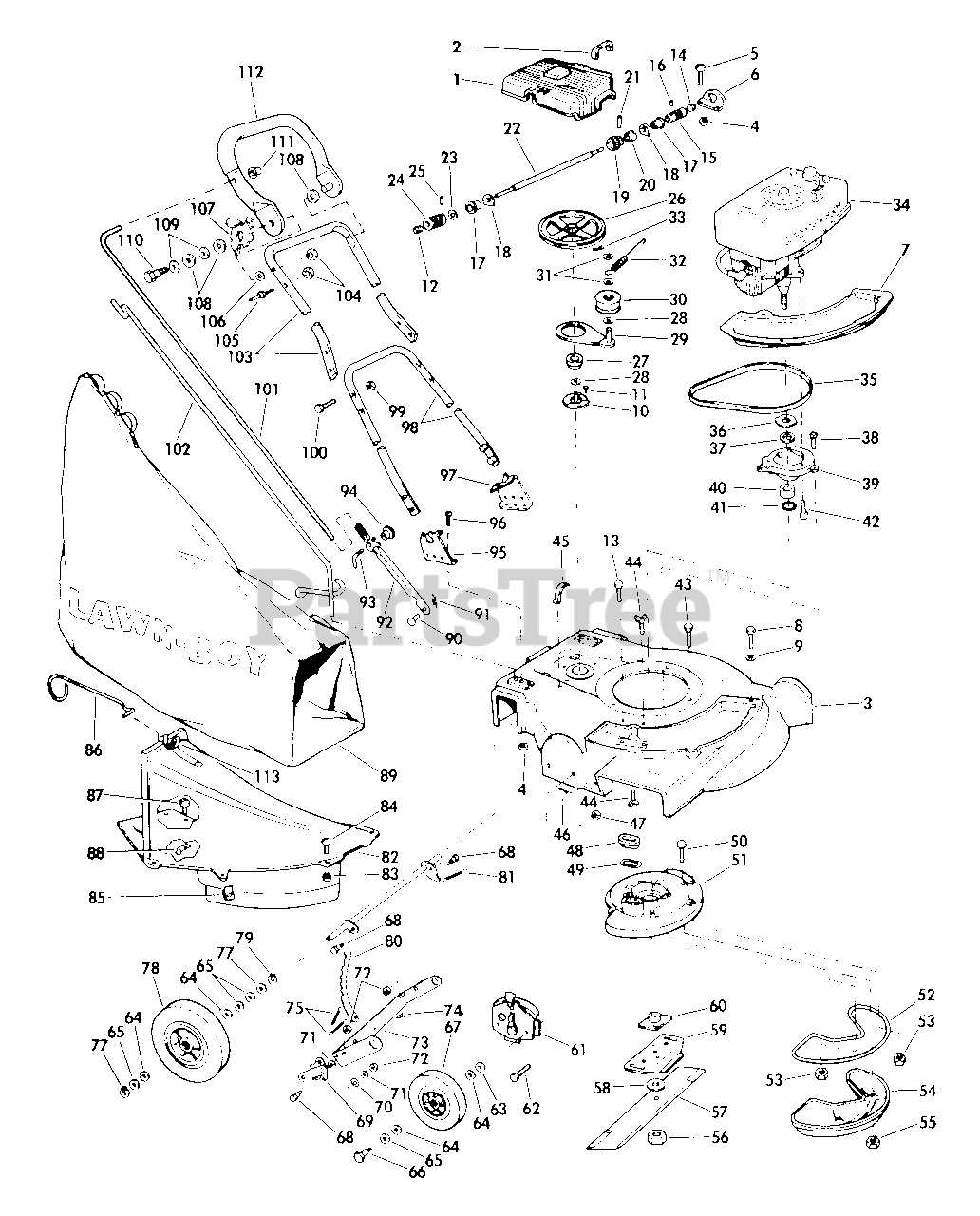

MODEL 8020 WITH GRASSCATCHER SELF-PROPELLED SPECIAL MOWER PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 605098

Cover-Pulley

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

2

Lawn-Boy 602940

Seal-Dust, Cover

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

3

Lawn-Boy 679384

Housing, Drive Shaft Bracket Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

4

Lawn-Boy 603477

Nut-Nylok

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

5

Lawn-Boy 602480

Screw-Machine, Drive Shaft Brkt.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

6

Lawn-Boy 602917

Bracket-Drive Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

7

Lawn-Boy 678505

Cover-Chute Opening

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

8

Lawn-Boy 606452

Hex Head

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

9

Lawn-Boy 604604

Grommet-Plastic
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$0.99

$

In Stock, Qty 16

0

10

Lawn-Boy 677478

Cup, Pin & Rivet Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

11

Lawn-Boy 304723

Rivet

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

12

Lawn-Boy 604214

Speed Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

13

Lawn-Boy 603012

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

14

Lawn-Boy 602926

Plug-Grease, Roller

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$12.99

$

In Stock, Qty 6

0

15

Lawn-Boy 677919

Roller-Drive Shaft, Left

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

16

Lawn-Boy 604718

Screw-Set

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

17

Lawn-Boy 678782

Sleeve & Brg. Assy. Drive Shaft
(Superseded to 681904)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

18

Lawn-Boy 602923

Seal-Drive Shaft Cover

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

19

Lawn-Boy 678251

Gear-Drive Shaft & Sleeve Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

20

Lawn-Boy 604649

Sleeve-Drive Shaft Gear

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

21

Lawn-Boy 603102

Pin-Spiral

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

22

Lawn-Boy 602920

Drive Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

23

Lawn-Boy 603037

Washer-Drive Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

24

Lawn-Boy 677918

Roller-Drive Shaft, Right

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

25

Lawn-Boy 604718

Screw-Set

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

26

Lawn-Boy 678252

Pulley Assembly, Complete

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

27

Lawn-Boy 604650

Felt-Oiler (Cup)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

28

Lawn-Boy 604563

Shim, .025

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

28

Lawn-Boy 602913

Shim, .010

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

28

Lawn-Boy 602914

Shim, .020

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

29

Lawn-Boy 677406

Idler Arm & Pin Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

30

Lawn-Boy 677407

Idler Pulley & Brg. Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

31

Lawn-Boy 602971

Washer-Idler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

32

Lawn-Boy 604066

Spring-Idler, Tension

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

33

Lawn-Boy 120356

Pin-Cotter

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

34

Lawn-Boy 678276

Engine, Model D-420

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

35

Lawn-Boy 602957

Belt-"V", 31", Class 3L, Fractional H.P.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$55.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 603333

Washer-Felt, Seal Retainer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

37

Lawn-Boy 603114

Seal-Sub-base, Felt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

38

Lawn-Boy 602941

Screw-Sub-base Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

39

Lawn-Boy 677770

Sub-base & Bearing Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

40

Lawn-Boy 603614

Bearing-Needle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

41

Lawn-Boy 602960

Seal-Sub-base

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

42

Lawn-Boy 603014

Bolt-C'case to Sub-base

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 604862

Screw-Muffler Pl. to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

44

Lawn-Boy 604213

Wing Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

45

Lawn-Boy 603035

Clip-Spring, Cover

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

46

Lawn-Boy 603036

Pin-Cotter, Spring Clip

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

47

Lawn-Boy 602830

Nut-Nylok

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

48

Lawn-Boy 602717

Sleeve-Muffler Gasket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 15

0

49

Lawn-Boy 604624

Gasket-Exhaust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$9.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 604036

Scr.-Muffler to Muffler Plate
(Superseded to 607847)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

51

Lawn-Boy 604023

Plate Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

52

Lawn-Boy 604516

Gasket Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

53

Lawn-Boy 602830

Nut-C'case to Muffler Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

54

Lawn-Boy 604024

Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

55

Lawn-Boy 602315

Nut-Muffler Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$4.49

$

In Stock, only 2 left!

0

56

Lawn-Boy 603164

Nut-Blase
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.99

$

In Stock, only 1 left!

0

57

Lawn-Boy 603703

Blade, 21"
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$29.99

$

In Stock, Qty 6

0

58

Lawn-Boy 605058

Washer-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.49

$

In Stock, Qty 12

0

59

Lawn-Boy 603541

Blade Stiffener

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

60

Lawn-Boy 677525

Collar & Plate Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$23.99

$

In Stock, only 1 left!

0

61

Lawn-Boy 678462

Height Adjustment Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

62

Lawn-Boy 605101

Screw-Height Adjustment

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

63

Lawn-Boy 603620

Washer-Wheel, Front

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.49

$

In Stock, Qty 20+

0

64

Lawn-Boy 605255

Washer, Felt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.49

$

In Stock, Qty 20+

0

65

Lawn-Boy 605256

Washer (See Note #1)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. Note #1: Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels.

$2.99

$

In Stock, Qty 20+

0

66

Lawn-Boy 603441

Bolt-Shoulder, Wheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$7.99

$

In Stock, Qty 19

0

67

Lawn-Boy 678636

Wheel & Tire Assy. 6"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$25.99

$

In Stock, only 1 left!

0

68

Lawn-Boy 602984

Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

69

Lawn-Boy 677425

Clutch Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

70

Lawn-Boy 603123

Washer-Lock Comp. Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

71

Lawn-Boy 603093

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

72

Lawn-Boy 602201

Nut-Nylok

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

73

Lawn-Boy 602986

Bracket-Axle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

74

Lawn-Boy 602936

Pin-Height Adj. Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

75

Lawn-Boy 602937

Spring-Height Adjustment

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

76

Lawn-Boy 677523

Axle & Torque Lug Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

77

Lawn-Boy 603147

Ring-Retaining, Axle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

78

Lawn-Boy 678638

Wheel & Tire Assy. 8"
(Superseded to 682972)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$26.99

$

In Stock, only 2 left!

0

79

Lawn-Boy 303259

Washer-Axle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.99

$

In Stock, Qty 8

0

80

Lawn-Boy 604064

Lever-Height Adjustment

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

81

Lawn-Boy 603003

Spring-Torque Lug

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

Lawn-Boy 679074

Chute Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

82

Lawn-Boy 679056

Skirt Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

83

Lawn-Boy 133079

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

Usually ships in 3-6 days

0

84

Lawn-Boy 602063

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

85

Lawn-Boy 604227

Speed Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

86

Lawn-Boy 678723

Wheel Guard Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

87

Lawn-Boy 604986

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

88

Lawn-Boy 605664

Speed Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

89

Lawn-Boy 678254

Grass Bag

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

90

Lawn-Boy 604856

Pin-Control Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

91

Lawn-Boy 603019

Hair Pin
(Superseded to 1-806003)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.49

$

In Stock, Qty 20+

0

92

Lawn-Boy 677426

Control Lever Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

93

Lawn-Boy 602993

Screw-Control Lever
(Superseded to 603699)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

94

Lawn-Boy 602992

Nut-Control Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

95

Lawn-Boy 604596

Handle Bracket, Right

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

96

Lawn-Boy 602192

Screw-Handle Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$8.49

$

Usually ships in 3-6 days

0

97

Lawn-Boy 678224

Handle Bracket, Left

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

98

Lawn-Boy 678884

Handle and Pin Assy.
(Superseded to 678280)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

99

Lawn-Boy 603477

Nut-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

100

Lawn-Boy 602480

Screw-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

101

Lawn-Boy 605513

Control Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

102

Lawn-Boy 678002

Rod Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

103

Lawn-Boy 606153

Handle Section-Center

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

104

Lawn-Boy 603477

Nut-Nylok

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

105

Lawn-Boy 606141

Lockout Pin Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

106

Lawn-Boy 302474

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

107

Lawn-Boy 605514

Clip-Lockout

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

108

Lawn-Boy 306359

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

109

Lawn-Boy 303254

Wave Washer
(Superseded to 121-4605)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$4.49

$

In Stock, only 1 left!

0

110

Lawn-Boy 606144

Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

111

Lawn-Boy 605546

Palnut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.49

$

In Stock, Qty 10

0

112

Lawn-Boy 678652

Handle and Grip-Top

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

113

Lawn-Boy 679356

Clip-Plastic Chute

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

113

Lawn-Boy 678024

Clip-Metal Chute

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available
