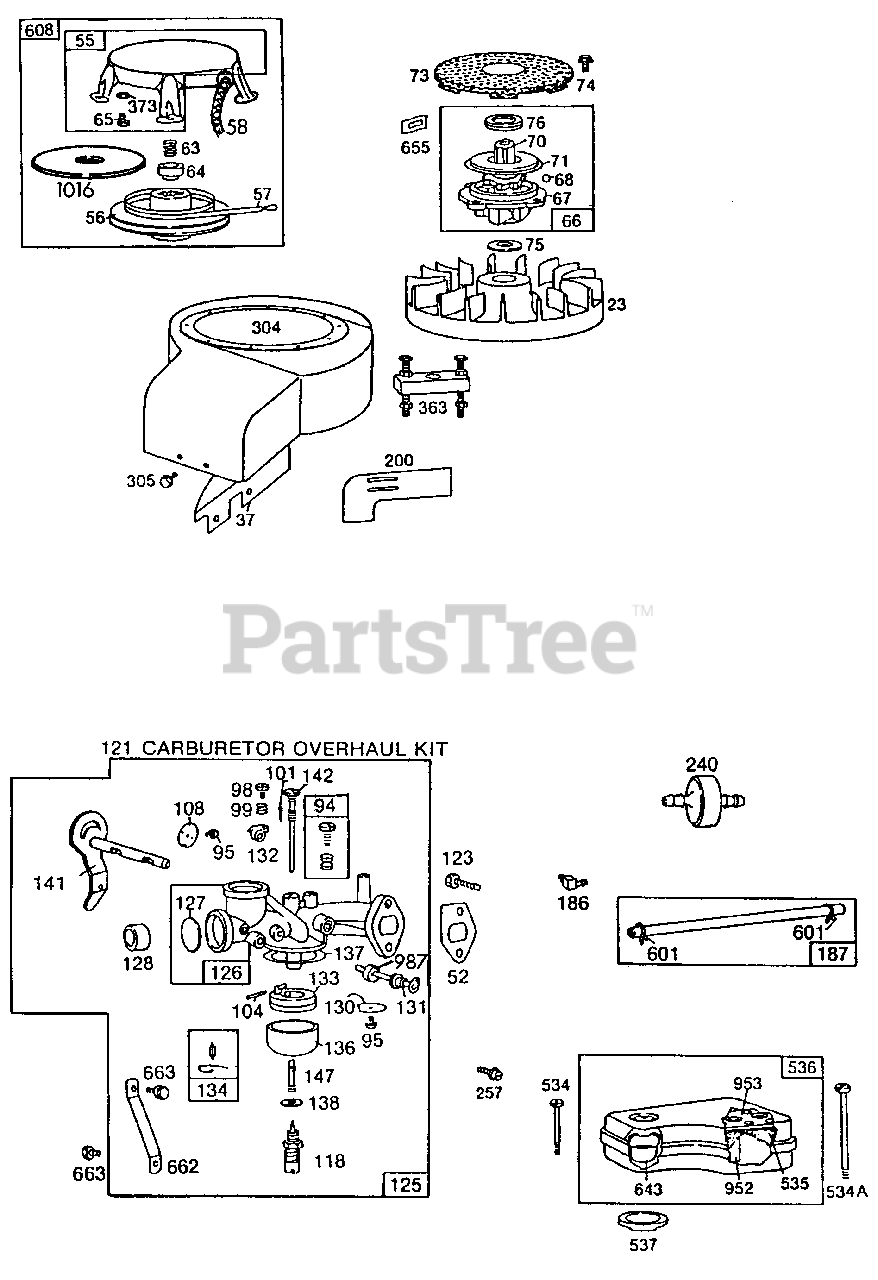

802 (137-513-100) - Cub Cadet Rear-Engine Riding Mower Engine (1987) B&S 8.0 HP-190702-2202-01 Part 2 Parts Diagram

Rear-Engine Riding Mower Engine

B&S 8.0 HP-190702-2202-01 Part 2 Parts Diagram

  • Title

23

Cub Cadet BS-298260

Flywheel-Magneto

$

$

Not available

37

Cub Cadet BS-222475

Guard-Flywheel

$

$

Not available

52

Cub Cadet BS-270538

Gasket-Carburetor Mounting

$5.49

$

In Stock, only 1 left!

0

55

Cub Cadet BS-393576

Housing-Rewind Starter

$85.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-295871

Pulley-Rewind Starter

Note: Note: Includes 63" Rope.

$14.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$

$

Not available

58

Cub Cadet BS-66884

Rope-Rewind Starter
(Superseded to BS-692188)

$8.49

$

In Stock, only 1 left!

0

63

Cub Cadet BS-260414

Spring-Ratchet

$

$

Not available

64

Cub Cadet BS-230543

Adapter-Ratchet
(Superseded to BS-691920)

$11.99

$

In Stock, Qty 5

0

65

Cub Cadet BS-93067

Screw-Stamped Steel Rewind Starter Housing Mounting

$

$

Currently unavailable

66

Cub Cadet BS-394558

Clutch Assembly-Rewind Starter
(Superseded to BS-399671)

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing-Rewind Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet-Rewind Starter Clutch
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-221653

Washer-Retainer

$

$

Currently unavailable

73

Cub Cadet BS-221796

Screen-Rewind Starter

$

$

Not available

74

Cub Cadet BS-93042

Screw-Sem

$

$

Currently unavailable

75

Cub Cadet BS-220865

Washer-Spring

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer-Ratchet Sealing

$

$

Not available

94

Cub Cadet BS-292681

Valve Assembly-Carburetor Idle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$11.99

$

In Stock, only 1 left!

0

95

Cub Cadet BS-93499

Screw-Throttle and Choke Valve Mtg. Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

98

Cub Cadet BS-91920

Screw-Machine, Fill. Hd. 8-32 x 518"

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring-Throttle Adjustment
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

101

Cub Cadet BS-93043

Pin-Throttle Stop

$

$

Not available

104

Cub Cadet BS-230896

Pin-Float Hinge

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

108

Cub Cadet BS-222010

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

118

Cub Cadet BS-396568

Valve-Needle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$20.99

$

Usually ships in 2-12 days

0

121

Cub Cadet BS-394698

Carburetor Overhaul Kit

$32.99

$

In Stock, Qty 14

0

123

Cub Cadet BS-93357

Screw-Carburetor Mounting

$

$

Not available

125

Cub Cadet BS-390411

Carb. Ass'y.

$

$

Not available

126

Cub Cadet BS-299851

Body Ass'y.-Lower Carburetor

$94.99

$

Usually ships in 2-12 days

0

127

Cub Cadet BS-221997

Plug-Welch

$4.99

$

In Stock, only 1 left!

0

128

Cub Cadet BS-211682

Venturi-Carburetor

$

$

Currently unavailable

130

Cub Cadet BS-221986

Valve-Throttle

$

$

Currently unavailable

131

Cub Cadet BS-490017

Shaft and Lever-Throttle
(Superseded to BS-491006)

$21.99

$

In Stock, only 2 left!

0

132

Cub Cadet BS-211712

Stop-Throttle
(Superseded to BS-691708)

$8.99

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-299707

Float-Carburetor

$

$

Not available

134

Cub Cadet BS-394681

Valve-Fuel Inlet

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$7.99

$

In Stock, only 1 left!

0

136

Cub Cadet BS-221995

Bowl-Float

$8.99

$

In Stock, Qty 6

0

137

Cub Cadet BS-270511

Gasket-Float Bowl

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.49

$

In Stock, Qty 19

0

138

Cub Cadet BS-222014

Washer-Float Bowl
(Superseded to BS-690618)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.99

$

In Stock, Qty 9

0

141

Cub Cadet BS-299647

Shaft and Lever-Manual Choke

$16.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-299740

Nozzle-Carburetor

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$15.99

$

In Stock, only 2 left!

0

147

Cub Cadet BS-231323

Screw-Nozzle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$24.99

$

Usually ships in 2-12 days

0

186

Cub Cadet BS-67218

Connector-Fuel Pipe

$

$

Not available

187

Cub Cadet BS-393815

Pipe-Fuel

$11.99

$

Usually ships in 2-12 days

0

200

Cub Cadet BS-221760

Guide-Air

$

$

Not available

240

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$

$

Not available

257

Cub Cadet BS-93543

Screw-Fil. Hd. Sem

$

$

Not available

304

Cub Cadet BS-299853

Housing-Blower
(Superseded to BS-491596)

$

$

Not available

305

Cub Cadet BS-93158

Screw-Blower Housing Mtg. Sem

$

$

Not available

363

Cub Cadet BS-19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Cub Cadet BS-92987

Nut-Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

534

Cub Cadet BS-93622

Screw-Air Cleaner

$6.49

$

In Stock, Qty 10

0

534A

Cub Cadet BS-93323

Screw-Air Cleaner

$7.49

$

In Stock, only 1 left!

0

535

Cub Cadet BS-270528

Element-Air Cleaner
(Superseded to BS-270528S)

$15.99

$

In Stock, Qty 13

0

536

Cub Cadet BS-390379

Cleaner Ass'y.-Air

$

$

Not available

537

Cub Cadet BS-270539

Gasket-Air Cleaner

$8.99

$

In Stock, only 1 left!

0

601

Cub Cadet BS-93053

Clamp-Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-390391

Starter Ass'y.-Rewind
(Superseded to BS-693900)

$131.99

$

In Stock, Qty 9

0

643

Cub Cadet BS-222149

Cup-Air Cleaner

$

$

Not available

655

Cub Cadet BS-222598

Anchor-Spring

$

$

Not available

662

Cub Cadet BS-222027

Bracket-Carburetor

$

$

Not available

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

952

Cub Cadet BS-222495

Spacer-Air Cleaner

$3.49

$

Usually ships in 2-12 days

0

953

Cub Cadet BS-222022

Screen-Air Cleaner

$15.99

$

Usually ships in 2-12 days

0

987

Cub Cadet BS-398970

Lip Seal
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

1016

Cub Cadet BS-490817

Spacer

$9.49

$

In Stock, Qty 5

0
