802 (137-513-100) - Cub Cadet Rear-Engine Riding Mower (1987) Parts For Riding Mower Part 1 Parts Diagram

Rear-Engine Riding Mower

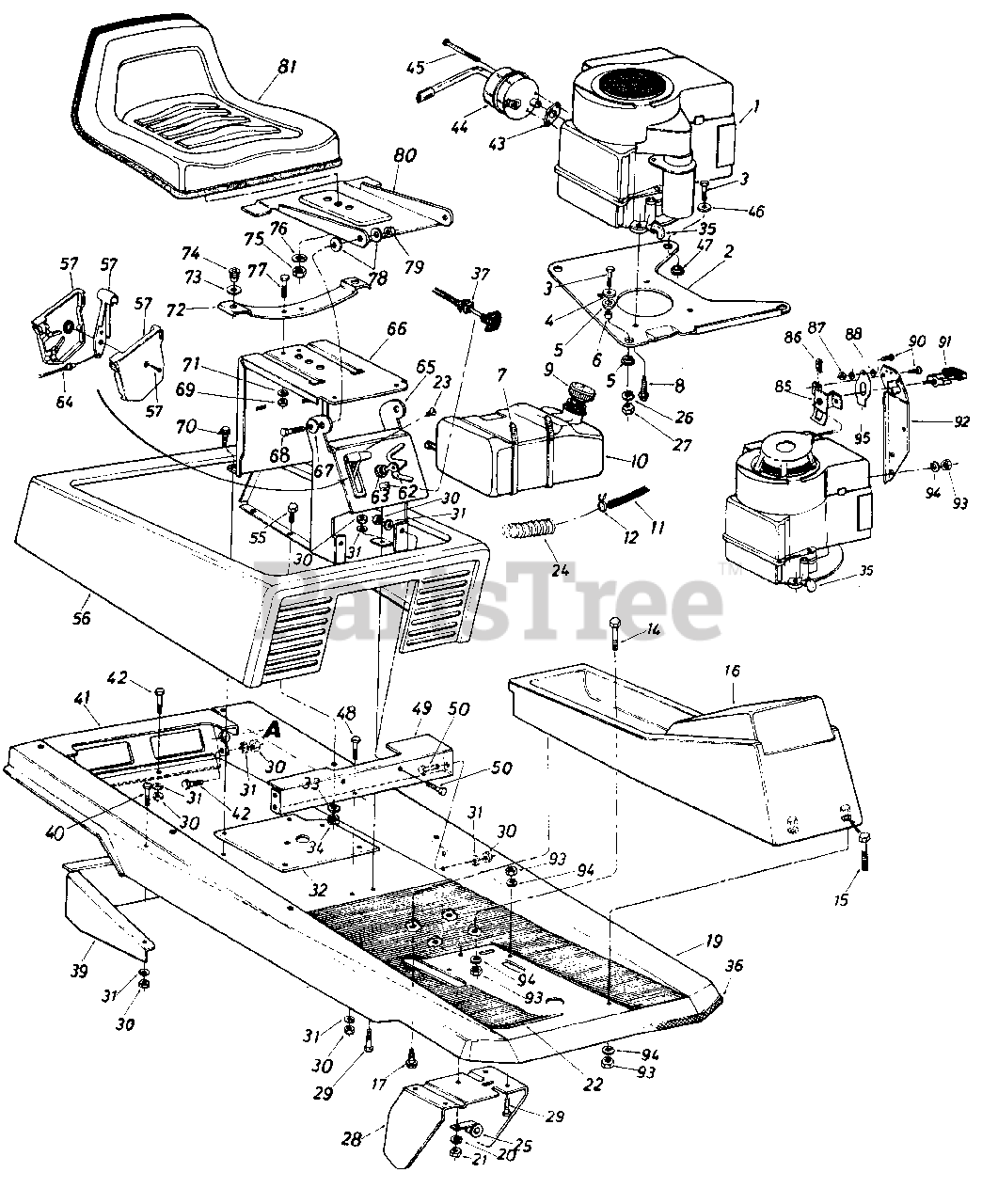

Parts For Riding Mower Part 1 Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 15572

Engine Mounting Plate
(Superseded to 15572A-0637)

$

$

Not available

3

Cub Cadet 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

4

Cub Cadet 736-0231

Fl-Wash. .330" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 750-0539

Spacer .315" I.D. x .50" O.D. x .520" Lg.
(Superseded to 950-0539)

$

$

Not available

7

Cub Cadet 726-0209

Cable Tie 30.6 Lg.
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 723-0155

Gas Gauge

$

$

Not available

10

Cub Cadet 751-0368

Fuel Tank
(Superseded to 751-0368C)

$

$

Not available

11

Cub Cadet 751-0173

Gas Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

12

Cub Cadet 726-0207

Hose Clamp-.406" Dia.

$

$

Not available

14

Cub Cadet 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.*
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0116

Hex Bolt 5/16-18 x 2.0" Lg.*
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 731-0712

Front Console

$

$

Not available

17

Cub Cadet 710-0906

Plastite Scr. 5/8 x 1.25"
(Superseded to 710-0323)

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 15978

Main Frame

Note: Color Code 498

$

$

Not available

20

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 735-0220

Floor Mat

$

$

Not available

23

Cub Cadet 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 731-0757

Convoluted Conduit

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 726-0175

Clamp

$

$

Not available

26

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

28

Cub Cadet 15562

Clutch-Brake Pedal Ass'y.

$

$

Not available

29

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 15588

Mounting Brkt. Variable Speed Pulley

$

$

Currently unavailable

33

Cub Cadet 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

34

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

35

Cub Cadet 737-0125

90ø Elbow Male To Female

$

$

Not available

36

Cub Cadet 731-0511

Trim Strip 18" Lg.

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 746-0614

Choke Control
(Superseded to 746-0614A)

$24.99

$

In Stock, only 1 left!

0

39

Cub Cadet 15553

Transaxle Support Ass'y.

$

$

Not available

40

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 15571

Rear Frame Panel

Variations

Cub Cadet 15571-0498

PANEL-FRAM - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15571-0629

PANEL-FRAM - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15571-0638

PANEL-FRAM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

Cub Cadet 710-0621

Hex Bolt 5/16-18 x .50" Lg.*
(Superseded to 710-3039)

$

$

Not available

43

Cub Cadet 721-0207

Exhaust Gasket (8 H.P.)
(Superseded to BS-692237)

$5.49

$

In Stock, only 2 left!

0

Cub Cadet 721-0208

Exhaust Gasket (11 H.P.)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

44

Cub Cadet 751-0412

Muffler Ass'y. (8 H.P.)

$

$

Not available

Cub Cadet 751-0425

Spark Arrester For 8 H.P. Muffler

$

$

Not available

Cub Cadet 751-0413

Muffler Ass'y. (11 H.P.)

$

$

Not available

Cub Cadet 751-0426

Spark Arrester For 11 H.P. Muffler
(Superseded to 951-0544)

$

$

Not available

45

Cub Cadet 738-0635

Shld. Bolt (8 H.P.)
(Superseded to 938-0635)

$

$

Not available

Cub Cadet 738-0636

Shld. Bolt (11 H.P.)
(Superseded to 938-0636)

$

$

Not available

46

Cub Cadet 736-0343

Fl-Wash. .330" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

47

Cub Cadet 736-0392

Flange Wash. .320" I.D. x .750" O.D.

$

$

Not available

48

Note: Purchase Locally

$

$

Not available

49

Cub Cadet 15604

Seat Support & Frame Brkt.

$

$

Not available

50

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.**
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

56

Cub Cadet 15975

Engine Cover Ass'y.

Note: Color Code 499

$

$

Not available

57

Cub Cadet 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

62

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

63

Cub Cadet 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

64

Cub Cadet 746-0503

Throttle Control Wire
(Superseded to 946-0503)

$

$

Not available

65

Cub Cadet 16483

Front Seat Bracket

$

$

Not available

66

Cub Cadet 15606

Rear Seat Bracket

$

$

Not available

67

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 710-0601

Hex Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

72

Cub Cadet 732-0431

Seat Spring

$

$

Currently unavailable

73

Cub Cadet 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

74

Cub Cadet 731-0555

Grommet

$

$

Not available

75

Cub Cadet 710-0623

Hex Wash. Hd. Tap Scr. 3/8-16 x 3/4" Lg.

$4.49

$

In Stock, Qty 20+

0

76

Cub Cadet 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

77

Cub Cadet 710-0118

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

80

Cub Cadet 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 757-0343

Seat Ass'y. Comp.

$

$

Currently unavailable

85

UNKNOWN

$

$

Not available

86

UNKNOWN

$

$

Not available

87

UNKNOWN

$

$

Not available

88

UNKNOWN

$

$

Not available

90

UNKNOWN

$

$

Not available

91

UNKNOWN

$

$

Not available

92

UNKNOWN

$

$

Not available

95

UNKNOWN

$

$

Not available

93

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

94

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
