802 (137-513-100) - Cub Cadet Rear-Engine Riding Mower (1987) 30" Rear Discharge Mowing Deck Parts Diagram

Rear-Engine Riding Mower

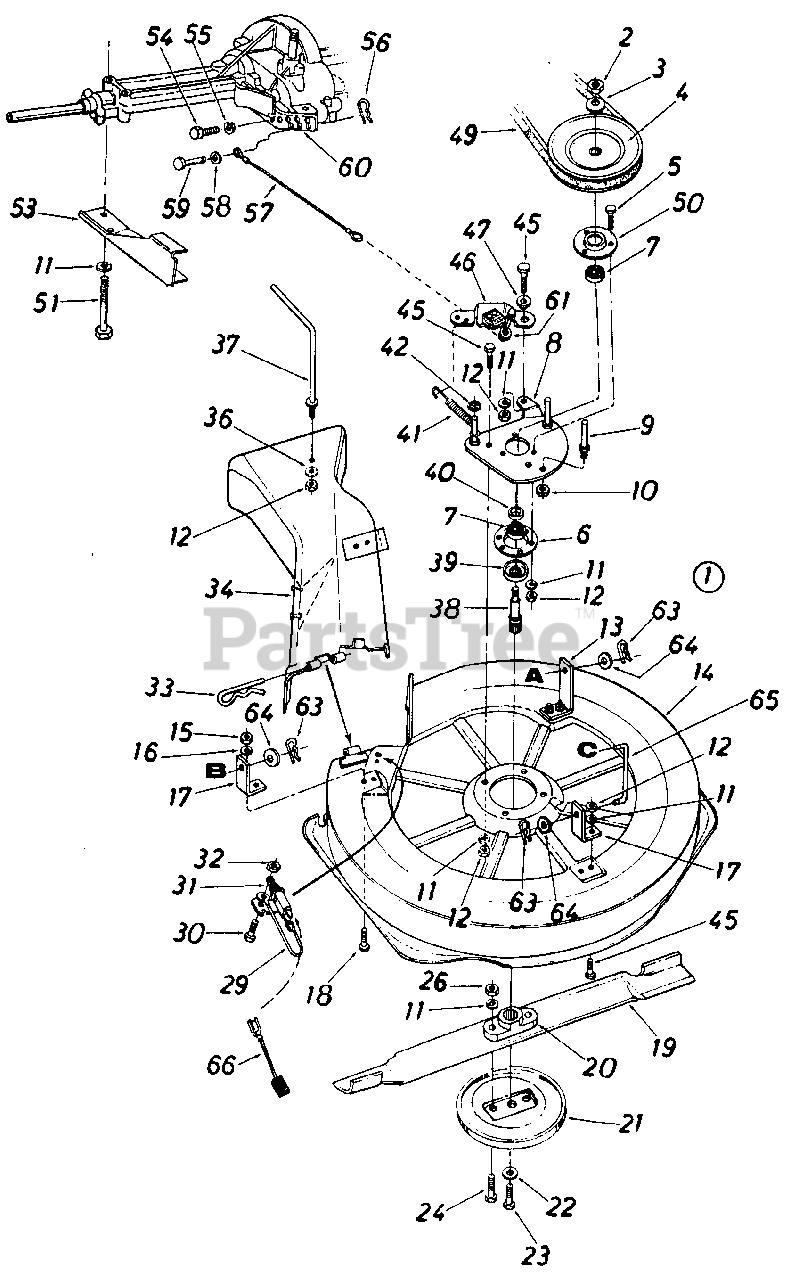

30" Rear Discharge Mowing Deck Parts Diagram

  • Title

1

Cub Cadet 15900

30" R.D. Deck Ass'y. Comp.

$

$

Not available

2

Cub Cadet 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

3

Cub Cadet 736-0317

Bell-Wash. .630" I.D. x 1.25"

$7.99

$

In Stock, Qty 20+

0

4

Cub Cadet 756-0430

5/8 V-Pulley .75" I.D. x .7"

$100.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0259

Hex Sems 5/16-18 x .62" Lg.

$

$

Not available

6

Cub Cadet 08253

Brg. Housing 1.85" I.D.
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

7

Cub Cadet 741-0919

Ball Brg. .787" I.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

8

Cub Cadet 15919

Spindle Mtg. Plate

$

$

Currently unavailable

9

Cub Cadet 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

13

Cub Cadet 15916

Hanger Brkt. 2.92"

$

$

Currently unavailable

14

Cub Cadet 15906

30" R.D. Deck Ass'y.

Variations

Cub Cadet 15906-0483

DECK ASSEMBLY-30IN RD - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 15906-0637

DECK ASSEMBLY-30IN RD (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15906-0638

DECK ASSEMBLY-30IN RD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

15

UNKNOWN

$

$

Not available

16

UNKNOWN

$

$

Not available

17

Cub Cadet 15915

Hanger Brkt. 1.92"

$

$

Not available

18

Cub Cadet 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 742-0280

30" High Lift Blade

$

$

Not available

20

Cub Cadet 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

21

Cub Cadet 07919

Scalp Plate (Optional)
(Superseded to 07919B-0637)

$

$

Not available

22

Cub Cadet 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.0
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

29

Cub Cadet 725-0765

Electrical Wire

$

$

Not available

30

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

31

Cub Cadet 725-0269

Safety Switch
(Superseded to 925-0269)

$

$

Not available

32

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 714-0174

Internal Cotter Pin

$

$

Not available

34

Cub Cadet 731-0715

R.D. Chute Deflector
(Superseded to 96094A)

$

$

Not available

36

Cub Cadet 736-0271

L-Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

37

Cub Cadet 747-0474

90ø Rod 5/16-18 Thd.

$

$

Not available

38

Cub Cadet 738-0577

Blade Spindle 5.20

$

$

Not available

39

Cub Cadet 13703

Bearing Shield

$

$

Not available

40

Cub Cadet 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 732-0157

Extension Spring

$14.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 726-0201

Push Speed Nut

$6.99

$

In Stock, only 2 left!

0

45

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" *
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 16053

Blade Brake Brkt. Ass'y.

$

$

Not available

47

Cub Cadet 748-0234

Shoulder Spacer .500" Dia.

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 754-0264

"V"-Belt 1/2" X 52" Lg.
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 15296

Open Brg. Housing
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

51

Cub Cadet 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

53

Cub Cadet 15625

Lower Outside Belt Guard

$

$

Not available

54

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

56

Cub Cadet 714-0104

Int. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 727-0290

Brake Cable 11.75" Lg.
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 736-0142

Fl-Wash. .281 I.D. x .501'

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 711-0701

Clevis Pin 1/4" Dia.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

60

Cub Cadet 15626

Lower Inside Belt Guard
(Superseded to 15626B-0637)

$

$

Not available

61

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 714-0145

Int. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

65

Cub Cadet 747-0428

Deck Link 3.9" Lg.

$

$

Currently unavailable

66

Cub Cadet 725-1037

Wire Lead

$

$

Not available
