80109977 (1697475) (1697487) - Snapper 18V Twin Chainsaw Twin Chainsaw Parts Diagram

18V Twin Chainsaw

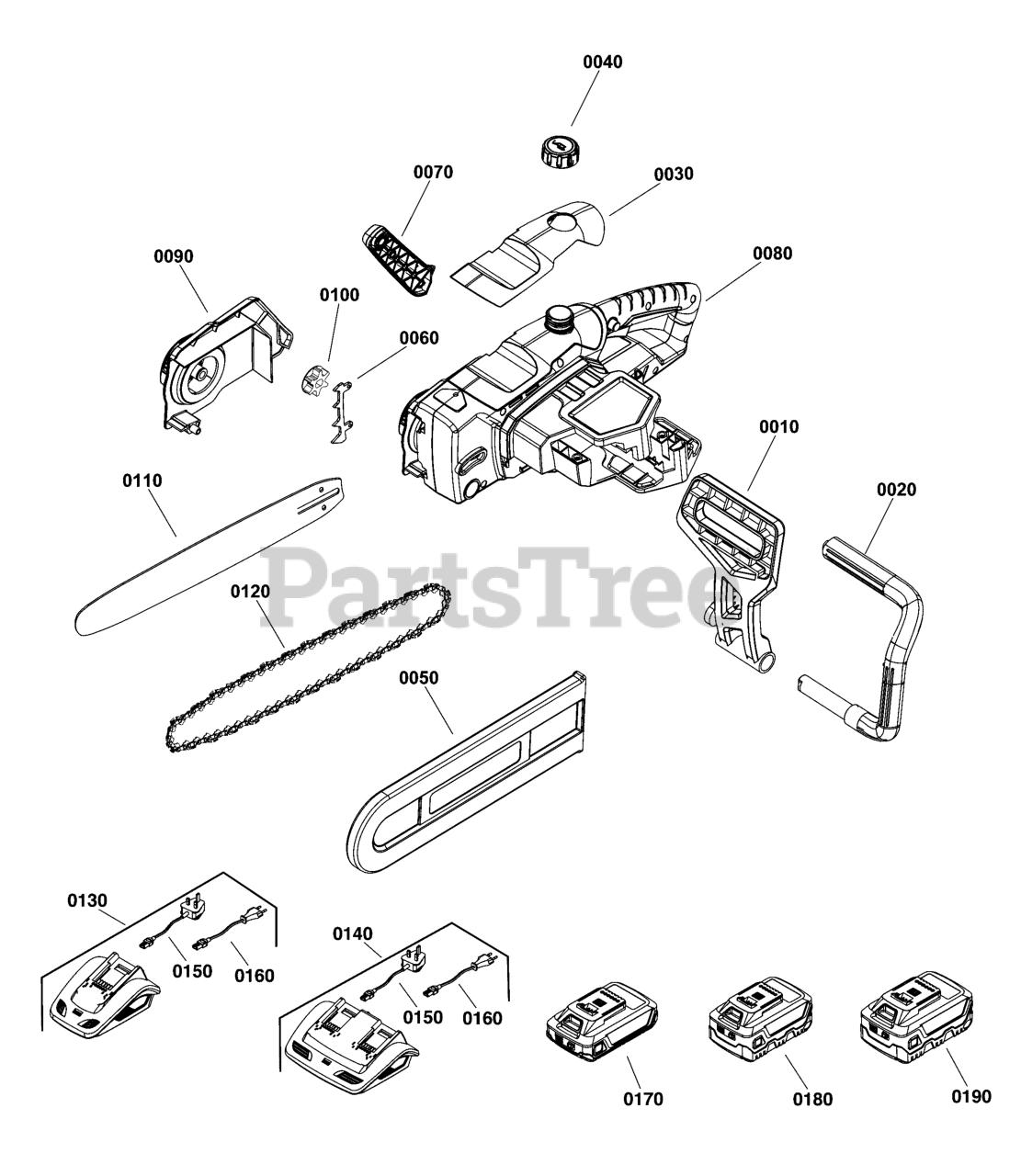

Twin Chainsaw Parts Diagram

  • Title

0010

Snapper BP20562A

BRAKE, Chain

$

$

Currently unavailable

0020

Snapper BP20563A

HANDLE, Front

$

$

Currently unavailable

0030

Snapper BP20565A

COVER, Top

$

$

Currently unavailable

0040

Snapper BP20567A

OIL CAP - 18V  CHAINSAW

$

$

Currently unavailable

0050

Snapper BP20598A

COVER, Bar

$

$

Currently unavailable

0060

Snapper BP20571A

FELLING DOGS

$

$

Currently unavailable

0070

Snapper BP20572A

HANDLE, Front, Side Bracket

$

$

Currently unavailable

0080

Snapper BP20574A

POWERHEAD, Murray

Note: (Includes Ref. Nos. 0010, 0020, 0030, 0040, 0060, 0070 & 0100)( Does not include Guide Bar & Chain)

$

$

Currently unavailable

0090

Snapper BP20577A

COVER, Chain

$

$

Currently unavailable

0100

Snapper BP20579A

SPROCKET

$

$

Currently unavailable

0110

Snapper BP20569A

GUIDE BAR, 18V Twin Chainsaw

$

$

Currently unavailable

0120

Snapper 90PX052E_AAB

CHAIN, 18V Twin Chainsaw

$

$

Currently unavailable

0130

Snapper 1697083

CHARGER, 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0140

Snapper 1697084

CHARGER, Twin 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0150

Snapper BP20190A

ELECTRICAL CORD UK, 18V Charger

Note: (Option)

$

$

Currently unavailable

0160

Snapper BP20189A

ELECTRICAL CORD EU, 18V Charger

Note: (Option)

$

$

Currently unavailable

0170

Snapper 883251

BATTERY, 18V, 2.5 Ah

Note: (Option)

$

$

Currently unavailable

0180

Snapper 883252

BATTERY, 18V, 4.0 Ah

Note: (Option)

$

$

Currently unavailable

0190

Snapper 883253

BATTERY, 18V, 5.0 Ah

Note: (Option)

$

$

Currently unavailable
