80109817 - Snapper 18V Hedge Trimmer Hedge Trimmer Parts Diagram

18V Hedge Trimmer

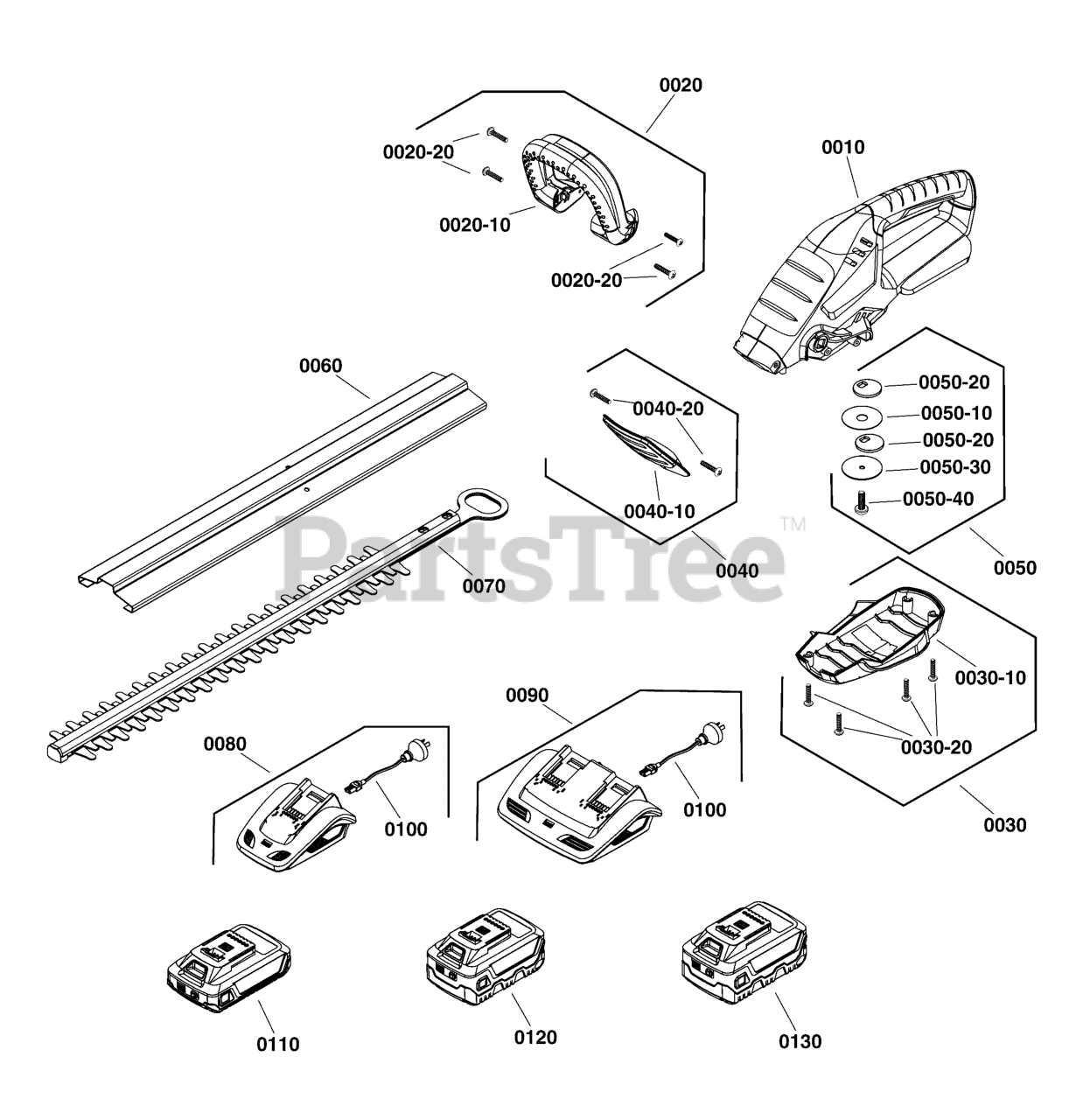

Hedge Trimmer Parts Diagram

  • Title

0010

Snapper BP20116A

POWER HEAD, Hedge Trimmer, 18V

$

$

Currently unavailable

0020

Snapper BP20152A

FRONT HANDLE ASSEMBLY

Note: (Includes Ref. Nos. 0020-10 & 0020-20)

$

$

Currently unavailable

0020-10

HANDLE, Hedge Trimmer

$

$

Not available

0020-20

SCREW, ST2.9 x 10, Tamper Proof

$

$

Not available

0030

Snapper BP20153A

BOTTOM COVER ASSEMBLY

Note: (Includes Ref. Nos. 0030-10 & 0030-20)

$

$

Currently unavailable

0030-10

COVER, Bottom

$

$

Not available

0030-20

SCREW, ST2.9 x 10, Tamper Proof

$

$

Not available

0040

Snapper BP20117A

HAND GUARD ASSEMBLY

Note: (Includes Ref. Nos. 0040-10 & 0040-20)

$

$

Currently unavailable

0040-10

GUARD, Hand

$

$

Not available

0040-20

SCREW, ST2.9 x 10, Tamper Proof

$

$

Not available

0050

Snapper BP20160A

KIT, Washer, Hedge Trimmer

Note: (Includes Ref. Nos. 0050-10 through 0050-40)

$

$

Currently unavailable

0050-10

SPACER

$

$

Not available

0050-20

WASHER, Cam

$

$

Not available

0050-30

WASHER, Flat

$

$

Not available

0050-40

BOLT

$

$

Not available

0060

Snapper BP20119A

COVER, Blade

$

$

Currently unavailable

0070

Snapper BP20118A

BLADE BAR ASSEMBLY

$

$

Currently unavailable

0080

Snapper 883248

CHARGER, Single, 18V

Note: (Option, Includes Ref. Nos. 0090)

$

$

Currently unavailable

0090

Snapper 883249

CHARGER, Twin, 18V

Note: (Option, Includes Ref. Nos. 0090)

$

$

Currently unavailable

0100

Snapper BP20113A

ELECTRICAL CORD AU, 18V Charger

Note: (Option)

$

$

Currently unavailable

0110

Snapper 883251

BATTERY, 18V, 2.5 Ah

Note: (Option)

$

$

Currently unavailable

0120

Snapper 883252

BATTERY, 18V, 4.0 Ah

Note: (Option)

$

$

Currently unavailable

0130

Snapper 883253

BATTERY, 18V, 5.0 Ah

Note: (Option)

$

$

Currently unavailable
