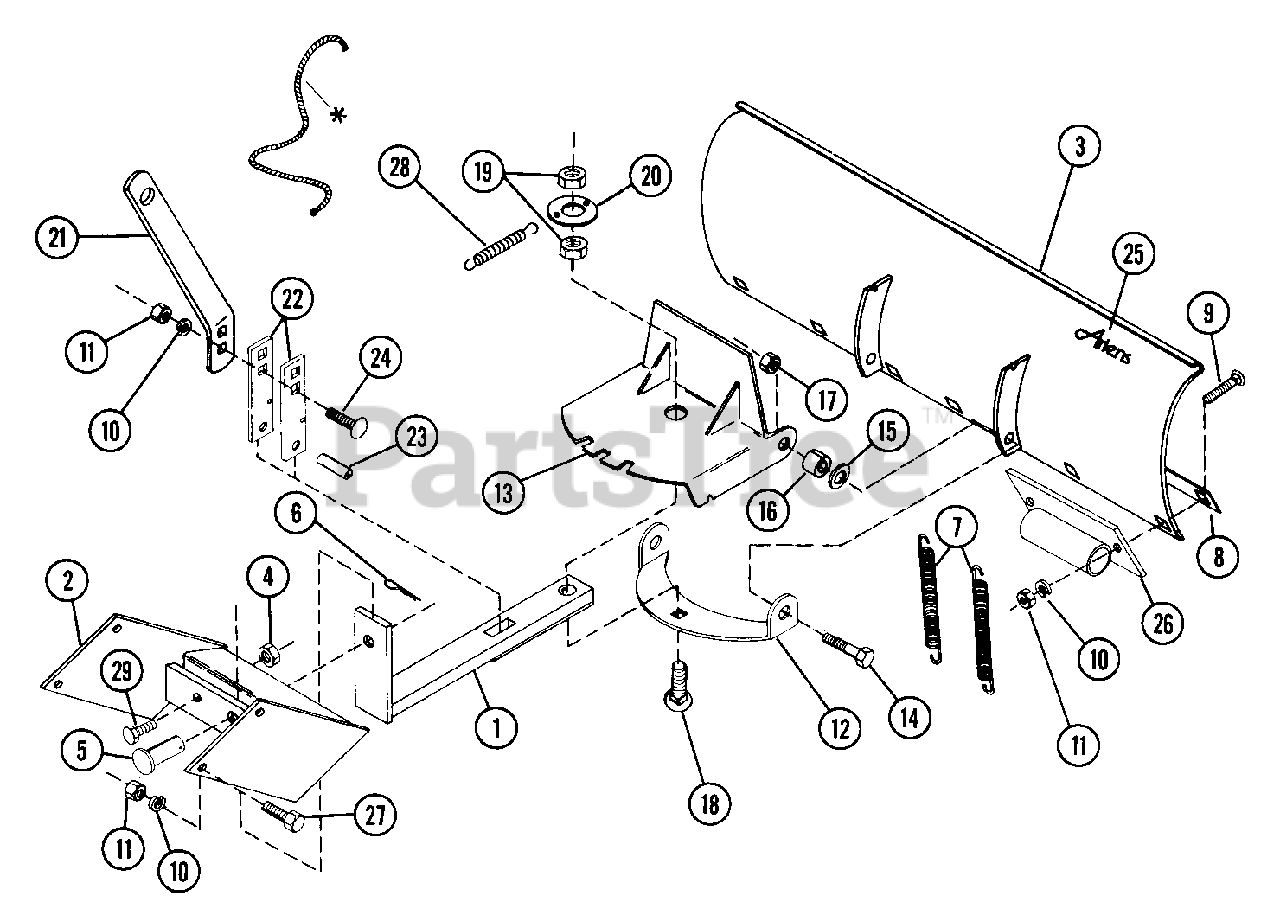

801001 - Ariens Dozer Blade (SN: 000101 & Above) Snow Blade Kit Parts Diagram

Dozer Blade

Snow Blade Kit Parts Diagram

  • Title
1

Ariens 00119900

DOZER BLADE FRAME

$

$

Not available

2

Ariens 02521600

40 INCH SNOW BLADE

$

$

Not available

3

Ariens 02521800

PUSH TUBE ASSEMBLY

$

$

Not available

4

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 01331500

CLEVIS PIN
(Superseded to 06805500)

$

$

Not available

6

Ariens 06901300

CONDUIT NUT

$

$

Not available

7

Ariens 08305100

SG-TENS .125X.81X6.50 WLD 10

$

$

Not available

8

Ariens 02521700

WEAR BAR

$

$

Not available

9

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 2 left!

0

11

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 01314500

LOWER PIVOT PLATE

$

$

Not available

13

Ariens 01314400

UPPER PIVOT PLATE

$

$

Not available

14

Ariens 05901000

BLT-HEX .50-13X1.50 PL GR2
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

15

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 02522300

PIVOT BUSHING

$

$

Not available

17

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

18

Ariens 06202500

BLT-RDHDSQNK .75-10X3.0

$

$

Not available

19

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

20

Ariens 01315100

LATCH SPRING WASHER

$

$

Not available

21

Ariens 02522100

PIVOT BLOCK EXTENSION

$

$

Not available

22

Ariens 01314900

BAR PIVOT LOCK

$

$

Not available

23

Ariens 05800600

PIN-ROLL .250X1.00

$1.99

$

Usually ships in 4-12 days

0

24

Ariens 06201600

BLT-RDHDSQNK .38-16X1.25 PL
(Superseded to 06224100)

$2.49

$

In Stock, only 4 left!

0

25

Ariens 07814400

ARIENS SCRIPT DECAL
(Superseded to 07875900)

$

$

Not available

26

$

$

Not available

27

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 08305200

SG-TENS .106X.56X2.75 WLD 10

$

$

Not available

29

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0
