80086366 (1697264, 1697225) - Murray 18V Twin Chainsaw Twin Chainsaw Parts Diagram

18V Twin Chainsaw

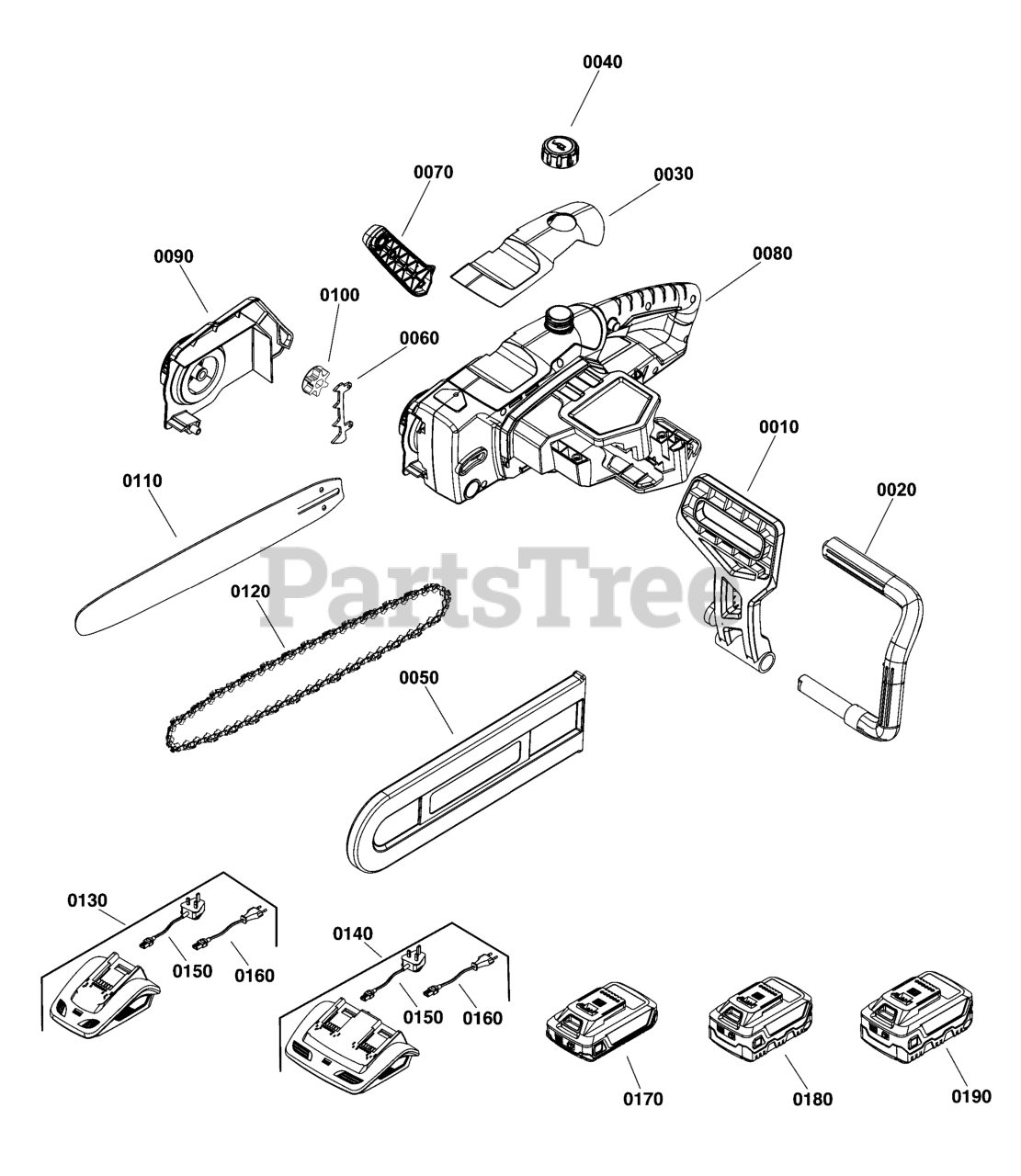

Twin Chainsaw Parts Diagram

  • Title

0010

Murray BP20562A

BRAKE, Chain

$

$

Currently unavailable

0020

Murray BP20563A

HANDLE, Front

$

$

Currently unavailable

0030

Murray BP20565A

COVER, Top

$

$

Currently unavailable

0040

Murray BP20567A

OIL CAP - 18V  CHAINSAW

$

$

Currently unavailable

0050

Murray BP20598A

COVER, Bar

$

$

Currently unavailable

0060

Murray BP20571A

FELLING DOGS

$

$

Currently unavailable

0070

Murray BP20572A

HANDLE, Front, Side Bracket

$

$

Currently unavailable

0080

Murray BP20574A

POWERHEAD, Murray

Note: (Includes Ref. Nos. 0010, 0020, 0030, 0040, 0060, 0070 & 0100)( Does not include Guide Bar & Chain)

$

$

Currently unavailable

0090

Murray BP20577A

COVER, Chain

$

$

Currently unavailable

0100

Murray BP20579A

SPROCKET

$

$

Currently unavailable

0110

GUIDE BAR, 18V Twin Chainsaw (Oregon 144MLEA041)

Note: (Not a serviceable part)

$

$

Not available

0120

CHAIN, 18V Twin Chainsaw (Oregon 90PX052X)

Note: (Not a serviceable part)

$

$

Not available

0130

Murray 1697083

CHARGER, 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0140

Murray 1697084

CHARGER, Twin 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0150

Murray BP20190A

ELECTRICAL CORD UK, 18V Charger

Note: (Option)

$

$

Currently unavailable

0160

Murray BP20189A

ELECTRICAL CORD EU, 18V Charger

Note: (Option)

$

$

Currently unavailable

0170

Murray 883251

BATTERY, 18V, 2.5AH

Note: (Option)

$

$

Currently unavailable

0180

Murray 883252

BATTERY, 18V, 4.0 Ah

Note: (Option)

$

$

Currently unavailable

0190

Murray 883253

BATTERY, 18V, 5.0AH

Note: (Option)

$

$

Currently unavailable
