80085986, 80085982 (1697223, 1688106) - Murray 18V Pole Saw & Hedge Trimmer Combo Hedge Trimmer Parts Diagram

18V Pole Saw & Hedge Trimmer Combo

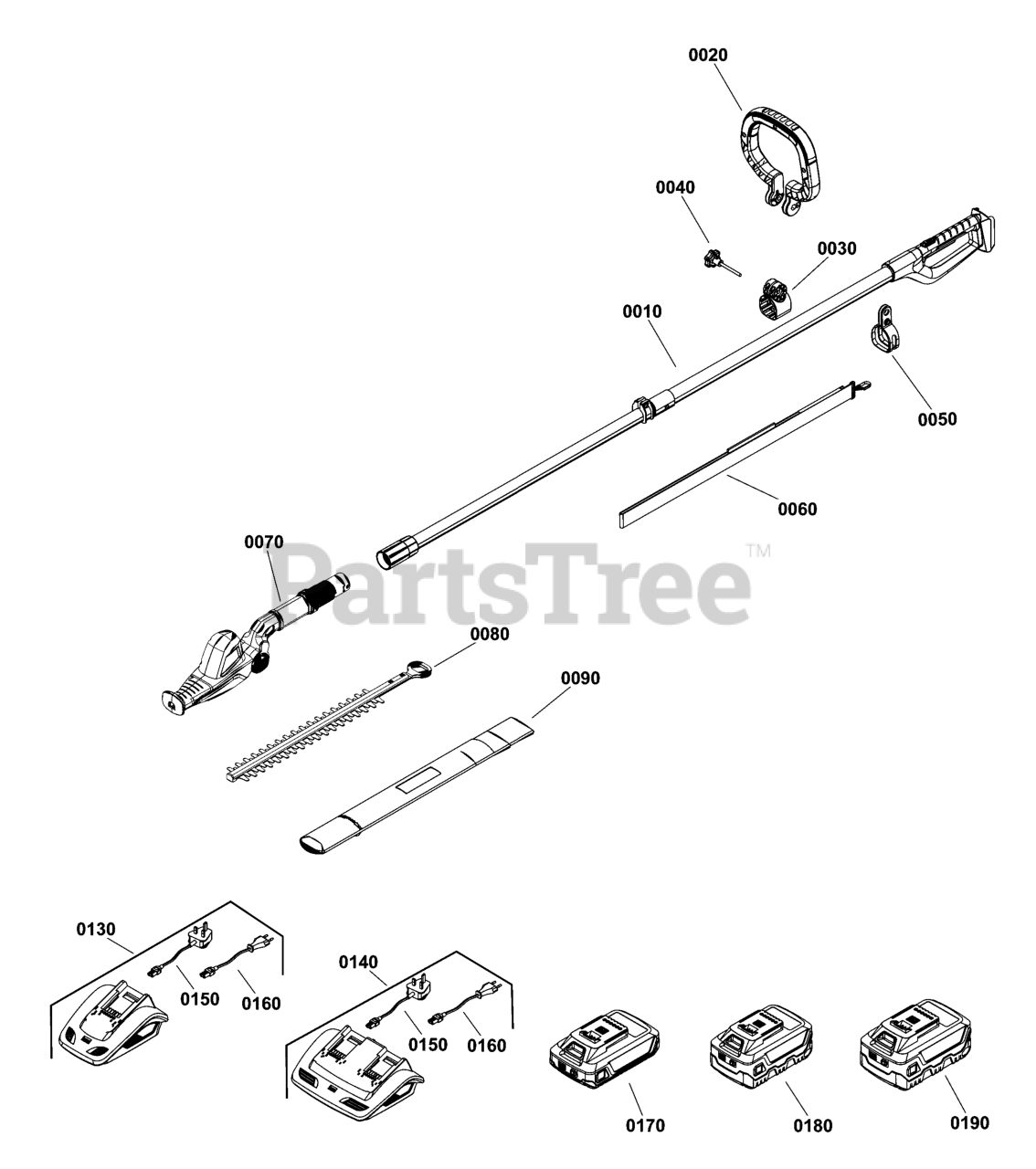

Hedge Trimmer Parts Diagram

  • Title

0010

Murray 80092297

POLE HANDLE ASSEMBLY

$

$

Currently unavailable

0020

Murray BP20584A

HANDLE, Front

$

$

Currently unavailable

0030

Murray BP20585A

BRACKET, Front Handle

$

$

Currently unavailable

0040

Murray BP20586A

KNOB, Front Handle

$

$

Currently unavailable

0050

Murray BP20369A

LATCH, Harness

$

$

Currently unavailable

0060

Murray BP20374A

HARNESS

$

$

Currently unavailable

0070

Murray 80092293

POWER HEAD, Murray

Note: (Includes Ref. Nos. 0080)

$

$

Currently unavailable

0080

Murray BP20491A

BLADE ASSEMBLY

$

$

Currently unavailable

0090

Murray BP20588A

COVER, Blade

$

$

Currently unavailable

0130

Murray 1697083

CHARGER, 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0140

Murray 1697084

CHARGER, Twin 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0150

Murray BP20190A

ELECTRICAL CORD UK, 18V Charger

Note: (Option)

$

$

Currently unavailable

0160

Murray BP20189A

ELECTRICAL CORD EU, 18V Charger

Note: (Option)

$

$

Currently unavailable

0170

Murray 883251

BATTERY, 18V, 2.5AH

Note: (Option)

$

$

Currently unavailable

0180

Murray 883252

BATTERY, 18V, 4.0 Ah

Note: (Option)

$

$

Currently unavailable

0190

Murray 883253

BATTERY, 18V, 5.0AH

Note: (Option)

$

$

Currently unavailable
