80040 - Lawn-Boy 25" Power Mulch Rear-Engine Riding Mower (SN: 003900001 - 003999999) (1993) TRANSMISSION PEERLESS MODEL 700-025 Parts Diagram

25" Power Mulch Rear-Engine Riding Mower

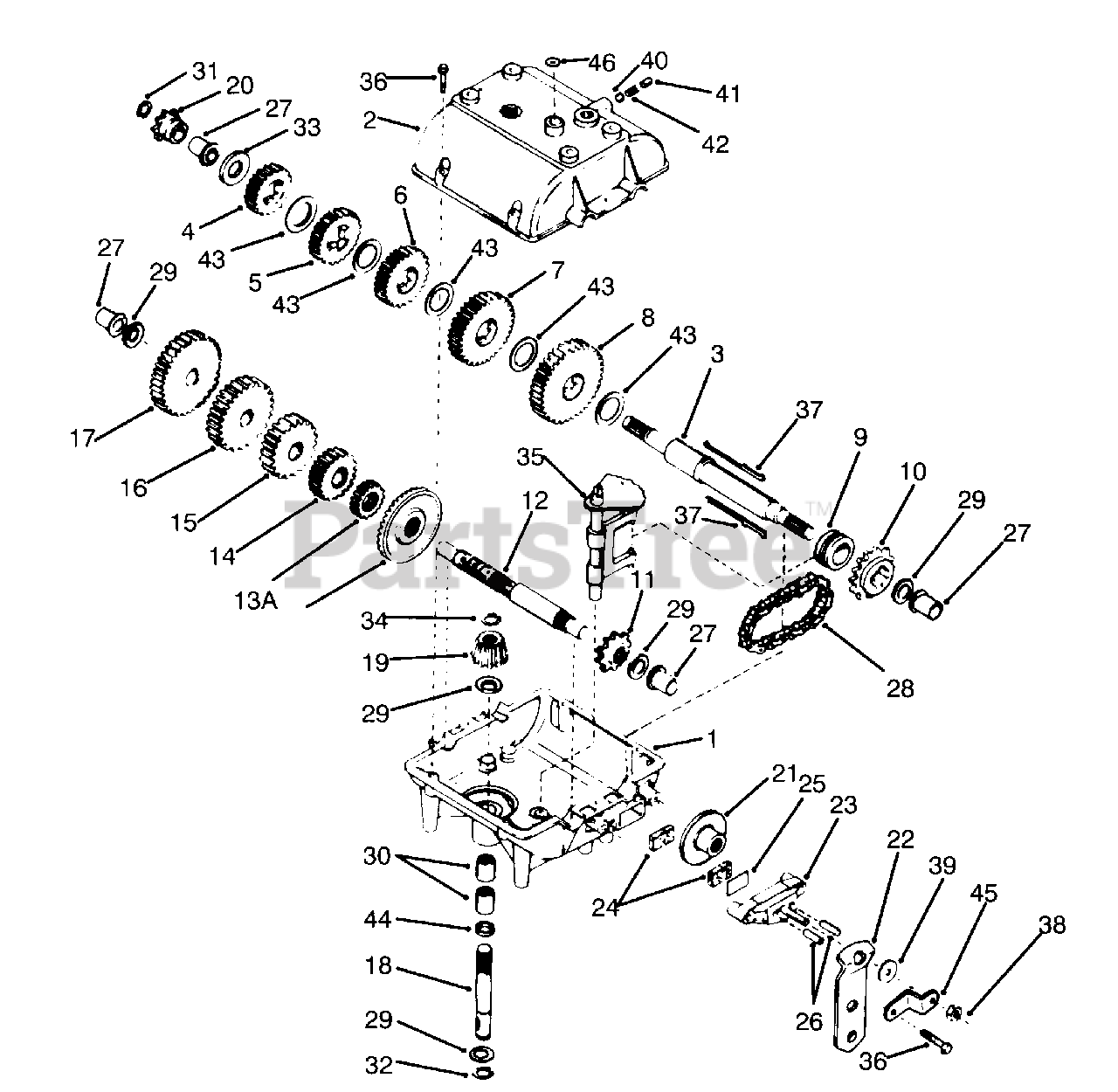

TRANSMISSION PEERLESS MODEL 700-025 Parts Diagram

  • Title
1

Lawn-Boy 770061

Case-Transmission

$

$

Currently unavailable

2

Lawn-Boy 772083

Cover-Transmission

$

$

Currently unavailable

3

Lawn-Boy 776217

Shaft-Output

$

$

Currently unavailable

4

Lawn-Boy 778121

A Gear-Spur (20 Teeth)

$

$

Currently unavailable

5

Lawn-Boy 778122A

Gear-Spur (22 Teeth)

$

$

Currently unavailable

6

Lawn-Boy 778123A

Gear-Spur (25 Teeth)

$

$

Currently unavailable

7

Lawn-Boy 778124A

Gear-Spur (30 Teeth)

$

$

Currently unavailable

8

Lawn-Boy 778125

Gear-Spur (35 Teeth)

$

$

Currently unavailable

9

Lawn-Boy 784266

Collar-Shift

$

$

Currently unavailable

10

Lawn-Boy 786083

Sprocket (18 Teeth)

$

$

Currently unavailable

11

Lawn-Boy 786082

Sprocket (9 Teeth)

$

$

Currently unavailable

12

Lawn-Boy 776134

Shaft-Counter

$

$

Currently unavailable

13A

Lawn-Boy 778136

Gear-Spur (15 Teeth)

$

$

Currently unavailable

13

Lawn-Boy 788137A

Gear-Bevel (42 Teeth)

$

$

Currently unavailable

14

Lawn-Boy 778126A

Gear-Spur (20 Teeth)

$

$

Currently unavailable

15

Lawn-Boy 778127A

Gear-Spur (25 Teeth)

$

$

Currently unavailable

16

Lawn-Boy 778128A

Gear-Spur (28 Teeth)

$

$

Currently unavailable

17

Lawn-Boy 778129A

Gear-Spur (30 Teeth)

$

$

Currently unavailable

18

Lawn-Boy 776135

Shaft-Input

$

$

Currently unavailable

19

Lawn-Boy 778113A

Bevel-Pinion, Input

$

$

Currently unavailable

20

Lawn-Boy 786047

Sprocket (8 Teeth)

$

$

Currently unavailable

21

Lawn-Boy 790003

Disk-Brake

$

$

Currently unavailable

22

Lawn-Boy 790008A

Lever-Brake

$

$

Currently unavailable

23

Lawn-Boy 790025

Holder-Pad, Brake

$

$

Currently unavailable

24

Lawn-Boy 790006

Pad Brake

$

$

Currently unavailable

25

Lawn-Boy 790007

Plate-Pad, Brake

$

$

Currently unavailable

26

Lawn-Boy 786026

Pin-Dowel

$

$

Currently unavailable

27

Lawn-Boy 780105A

Bushing-Flange

$

$

Currently unavailable

28

Lawn-Boy 786081

Chain-Roller (No. 41 Chain, 24 Links)

$

$

Currently unavailable

29

Lawn-Boy 780072

Washer-Thrust

$

$

Currently unavailable

30

Lawn-Boy 780086

Bearing-Needle

$

$

Currently unavailable

31

Lawn-Boy 792072

Ring-Retaining

$

$

Currently unavailable

32

Lawn-Boy 792035

Ring-Retaining

$

$

Currently unavailable

33

$

$

Currently unavailable

34

Lawn-Boy 788040

Ring-Retaining

$

$

Currently unavailable

35

Lawn-Boy 784267

Assy. Rod & Fork-Shift

$

$

Currently unavailable

36

Lawn-Boy 792073

Screw-Thread Forming

$

$

Currently unavailable

$

$

Currently unavailable

38

Lawn-Boy 792075

Nut-Lock

$

$

Currently unavailable

39

$

$

Currently unavailable

40

Lawn-Boy 792077

Ball-Steel

$

$

Currently unavailable

41

Lawn-Boy 792078

Screw-Set

$

$

Currently unavailable

42

$

$

Currently unavailable

43

Lawn-Boy 780108

Washer-Thrust

$

$

Currently unavailable

44

$

$

Currently unavailable

45

Lawn-Boy 786086

Bracket-Lever, Brake

$

$

Currently unavailable

46

Lawn-Boy 788069

Seal-Square Cut

$

$

Currently unavailable
