80040 - Lawn-Boy 25" Power Mulch Rear-Engine Riding Mower (SN: 003900001 - 003999999) (1993) FRAME ASSEMBLY Parts Diagram

25" Power Mulch Rear-Engine Riding Mower

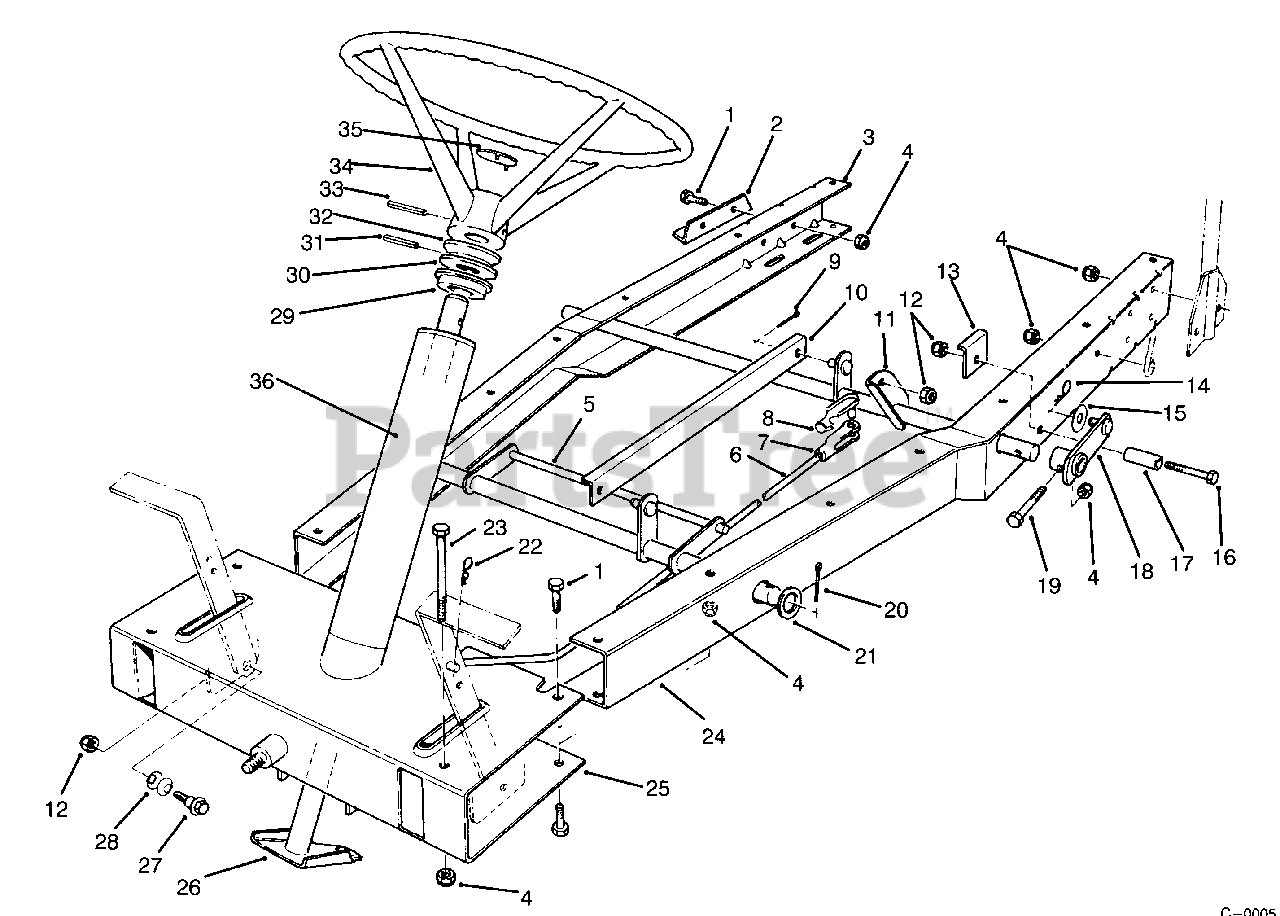

FRAME ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 322-3

Screw-Cap Hex. Hd.

$0.99

$

In Stock, Qty 16

0

2

Lawn-Boy 44-7140-02

Mount-Bearing, Axle

$

$

Not available

3

Lawn-Boy 67-0520-02

Channel-R.H.

$

$

Not available

4

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 67-0010-03

Lift W.A.-Front, Deck

$

$

Not available

6

Lawn-Boy 67-0430

Rod-Clutch

$

$

Not available

7

$35.99

$

Usually ships in 3-6 days

0

8

Assembly-Pin, Clevis

$

$

Not available

9

Lawn-Boy 3272-6

Pin-Cotter

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 67-0090-03

Bracket-Link, H.O.C.

$

$

Not available

11

Lawn-Boy 67-0050-02

Tube W.A.-Support, Rear

$

$

Not available

12

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 16

0

13

Lawn-Boy 67-1510

Brace-Stop, Deck
(Superseded to 67-1510-03)

$9.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 3290-355

Pin-Hair, Cotter

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 67-1460

Washer-Flat

$

$

Not available

16

Lawn-Boy 323-10

Screw-Cap Hex. Hd.

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 68-8380

Spacer-Stop, Deck

$

$

Not available

18

Lawn-Boy 67-0300-02

Lever W.A.-H.O.C.

$

$

Not available

19

Lawn-Boy 46-2511

Bolt-Mounting, Axle

$

$

Not available

20

Lawn-Boy 3272-23

Pin-Cotter

$0.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 3256-29

Washer-Flat

$2.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 3290-250

Pin-Hair, Cotter

$6.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 322-14

Screw-Cap Hex. Hd.

$2.99

$

In Stock, only 4 left!

0

24

Lawn-Boy 67-0530-02

Channel-L.H.

$205.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 67-0450-02

Frame W.A.-Front

$

$

Not available

26

Lawn-Boy 67-0830-03

Shaft W.A.-Steering
(Superseded to 67-0830-01)

$

$

Not available

27

Lawn-Boy 67-0870

Bolt-Shoulder

$

$

Not available

28

Lawn-Boy 3290-413

Washer-Belleville

$5.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 67-0850

Bushing-Steering

$

$

Not available

30

Lawn-Boy 67-0860

Washer-Steering

$19.99

$

Usually ships in 3-6 days

0

31

$1.49

$

In Stock, Qty 16

0

32

Lawn-Boy 67-0440

Spacer-Steering

$

$

Not available

33

$3.49

$

In Stock, Qty 7

0

34

Lawn-Boy 49-3241

Wheel-Steering

$252.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 88-9840

Insert-Wheel, Steering

$

$

Not available

36

$

$

Not available

Lawn-Boy 13-6049

Kit-Loose parts

Note: Not Illustrated

$

$

Not available
