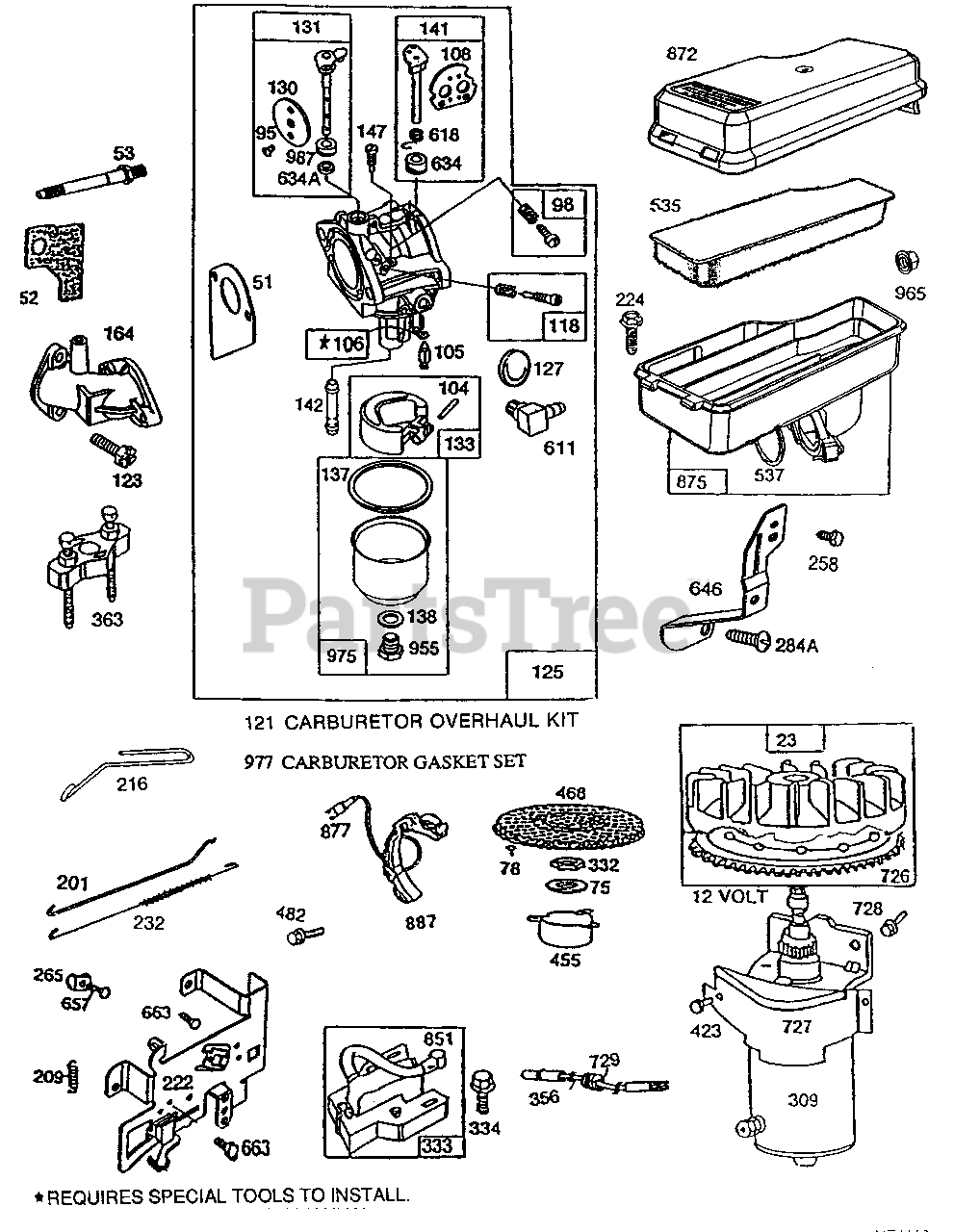

80040 - Lawn-Boy 25" Power Mulch Rear-Engine Riding Mower (SN: 003900001 - 003999999) (1993) BRIGGS & STRATTON MODEL 191707-0121-01 Parts Diagram

25" Power Mulch Rear-Engine Riding Mower

BRIGGS & STRATTON MODEL 191707-0121-01 Parts Diagram

  • Title

#137

Lawn-Boy 281165

Gasket-Float Bowl

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

#138

Lawn-Boy 281164

Washer-Float Bowl

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

#51

Lawn-Boy 272465

Gasket-Carburetor (Carb. to Elbow)

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

23

Lawn-Boy 391983

Flywheel and Ring Gear Assy.-Magneto (Incl. Aluminum Ring Gear)

$

$

Currently unavailable

52

Lawn-Boy 270824

Gasket-Carb. Mtg.

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

53

Lawn-Boy 94637

Stud-Gasket Mtg.

$

$

Currently unavailable

75

Lawn-Boy 224061

Washer-Spring

$

$

Currently unavailable

78

Lawn-Boy 93805

Screw-Sem

$

$

Currently unavailable

95

Lawn-Boy 94098

Screw-Throttle

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

98

Lawn-Boy 494382

Screw-Idle Speek

$

$

Currently unavailable

104

Lawn-Boy 231789

Pin-Float Hinge

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

105

Lawn-Boy 231790

Valve Assy.-Inlet Needle

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

106

Lawn-Boy 281169

Inlet Valve Seat

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

108

Lawn-Boy 224540

Valve-Choke

$

$

Currently unavailable

118

Lawn-Boy 494383

Valve-Needle

$

$

Currently unavailable

121

Lawn-Boy 494880

Carburetor Overhaul Kit

$

$

Currently unavailable

123

Lawn-Boy 94616

Screw-Carburetor Mtg.

$

$

Currently unavailable

125

Lawn-Boy 494894

Carburetor Assembly

$

$

Currently unavailable

127

Plug-Welch (Kit Only)

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Not available

130

Lawn-Boy 224668

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 494885

Shaft & Lever-Throttle

$

$

Currently unavailable

133

Lawn-Boy 494381

Float-Carburetor

$

$

Currently unavailable

141

Lawn-Boy 494380

Shaft & Lever-Choke

$

$

Currently unavailable

142

Lawn-Boy 494877

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

147

Lawn-Boy 231794

Screw-Nozzle

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

164

Lawn-Boy 213819

Carburetor Elbow

$

$

Currently unavailable

201

Lawn-Boy 262769

Link-Governor

$

$

Currently unavailable

209

Lawn-Boy 260871

Spring-Governor

$

$

Currently unavailable

216

Lawn-Boy 262768

Link-Choke

$

$

Currently unavailable

222

Lawn-Boy 493896

Plate-Gov. Plate

$

$

Currently unavailable

224

Lawn-Boy 94513

Screw-Sem

$

$

Currently unavailable

232

Lawn-Boy 262787

Spring-Governor Link

$

$

Currently unavailable

258

Lawn-Boy 94620

Screw-Hex. Tapping

$

$

Currently unavailable

265

Lawn-Boy 221535

Clamp-Casing

$

$

Currently unavailable

284A

Lawn-Boy 94326

Screw-Brace Mtg.

$

$

Currently unavailable

309

Motor-Starting (12 Volt) See Chart for Replacement Parts for Starting Motor on Illustrated Pages

$

$

Not available

332

Lawn-Boy 92284

Nut-Flywheel

$

$

Currently unavailable

333

Lawn-Boy 398811

Armature Assembly

$

$

Currently unavailable

334

Lawn-Boy 93381

Screw-Armature Mtg. Sem

$

$

Currently unavailable

356

Lawn-Boy 494328

Wire-Ground

$

$

Currently unavailable

363

Lawn-Boy 19165

Puller-Flywheel

$

$

Currently unavailable

423

Lawn-Boy 94073

Screw-Sem

$

$

Currently unavailable

455

Lawn-Boy 222561

Cup-Screen Mounting

$

$

Currently unavailable

468

Lawn-Boy 222562

Screen-Flush Rotating

$

$

Currently unavailable

482

Lawn-Boy 93621

Screw-Sem

$

$

Currently unavailable

535

Lawn-Boy 272405

Element-Foam Air Cleaner

$

$

Currently unavailable

537

Lawn-Boy 281106

O-Ring-Air Cleaner

$

$

Currently unavailable

611

Lawn-Boy 494451

Fuel Inlet Tube

$

$

Currently unavailable

618

Lawn-Boy 262803

Spring-Choke Return

$

$

Currently unavailable

634

Lawn-Boy 81168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

634A

Lawn-Boy 281167

Washer-Throttle Shaft

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable

646

Lawn-Boy 224614

Brace-Air Cleaner

$

$

Currently unavailable

657

Lawn-Boy 93496

Screw-Sem

$

$

Currently unavailable

663

Lawn-Boy 94419

Screw

$

$

Currently unavailable

726

Lawn-Boy 392134

Gear-Ring (Aluminum) (Incl. Mtg. Parts)

$

$

Currently unavailable

727

Lawn-Boy 395405

Cover-Starter (Incl. Mtg. Screws)

$

$

Currently unavailable

728

Lawn-Boy 93535

Screw-Sem

$

$

Currently unavailable

729

Lawn-Boy 281159

Clip-Lead Wire

$

$

Currently unavailable

851

Lawn-Boy 221798

Terminal-Ignition Cable

$

$

Currently unavailable

872

Lawn-Boy 281108

Cover-Air Cleaner

$

$

Currently unavailable

875

Lawn-Boy 494745

Body-Air Cleaner

$

$

Currently unavailable

877

Lawn-Boy 393814

Diode & Connector Assy.

$

$

Currently unavailable

887

Lawn-Boy 391529

Stator Assembly-Alternator (D.C.)

$

$

Currently unavailable

955

Lawn-Boy 94642

Screw-Fuel Bowl

$

$

Currently unavailable

965

Lawn-Boy 94108

Nut-Lock

$

$

Currently unavailable

975

Lawn-Boy 494378

Bowl Assy.-Carburetor

$

$

Currently unavailable

987

Lawn-Boy 281166

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Set-Part No. 191880.

$

$

Currently unavailable
