80040 - Lawn-Boy 25" Easy Mulch Rear-Engine Riding Mower (SN: 004900001 - 004999999) (1994) STARTER-BRIGGS & STRATTON NO.195707-0121-01 Parts Diagram

25" Easy Mulch Rear-Engine Riding Mower

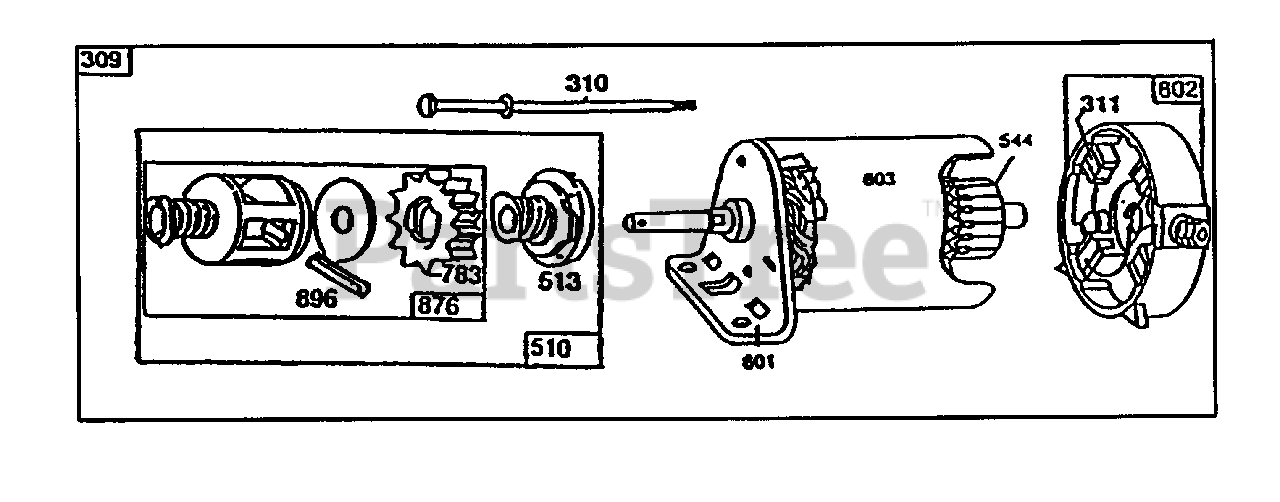

STARTER-BRIGGS & STRATTON NO.195707-0121-01 Parts Diagram

  • Title
309

Lawn-Boy 394805

Assembly-Motor & Drive

$

$

Currently unavailable

310

Lawn-Boy 94003

Assembly-Thru Bolt

$

$

Currently unavailable

311

Lawn-Boy 395538

Assembly-Brush

$

$

Currently unavailable

510

Lawn-Boy 490421

Assembly-Drive (Incl. Ref. #513, 783, 876 & 896)

$

$

Currently unavailable

513

Lawn-Boy 398003

Assembly-Clutch

$

$

Currently unavailable

544

Lawn-Boy 390837

Assembly-Armature

$

$

Currently unavailable

783

$

$

Currently unavailable

801

Lawn-Boy 394856

Assembly-End Cap

$

$

Currently unavailable

802

Lawn-Boy 395537

Assembly-Commutator, End Cap

$

$

Currently unavailable

803

Lawn-Boy 398159

Assembly-Housing (3-21/32" Long)

$

$

Currently unavailable

876

Lawn-Boy 490467

Kit-Retainer

$

$

Currently unavailable

896

Lawn-Boy 94288

Pin-Roll

$

$

Currently unavailable
