80040 - Lawn-Boy 25" Easy Mulch Rear-Engine Riding Mower (SN: 004900001 - 004999999) (1994) REAR BODY ASSEMBLY Parts Diagram

25" Easy Mulch Rear-Engine Riding Mower

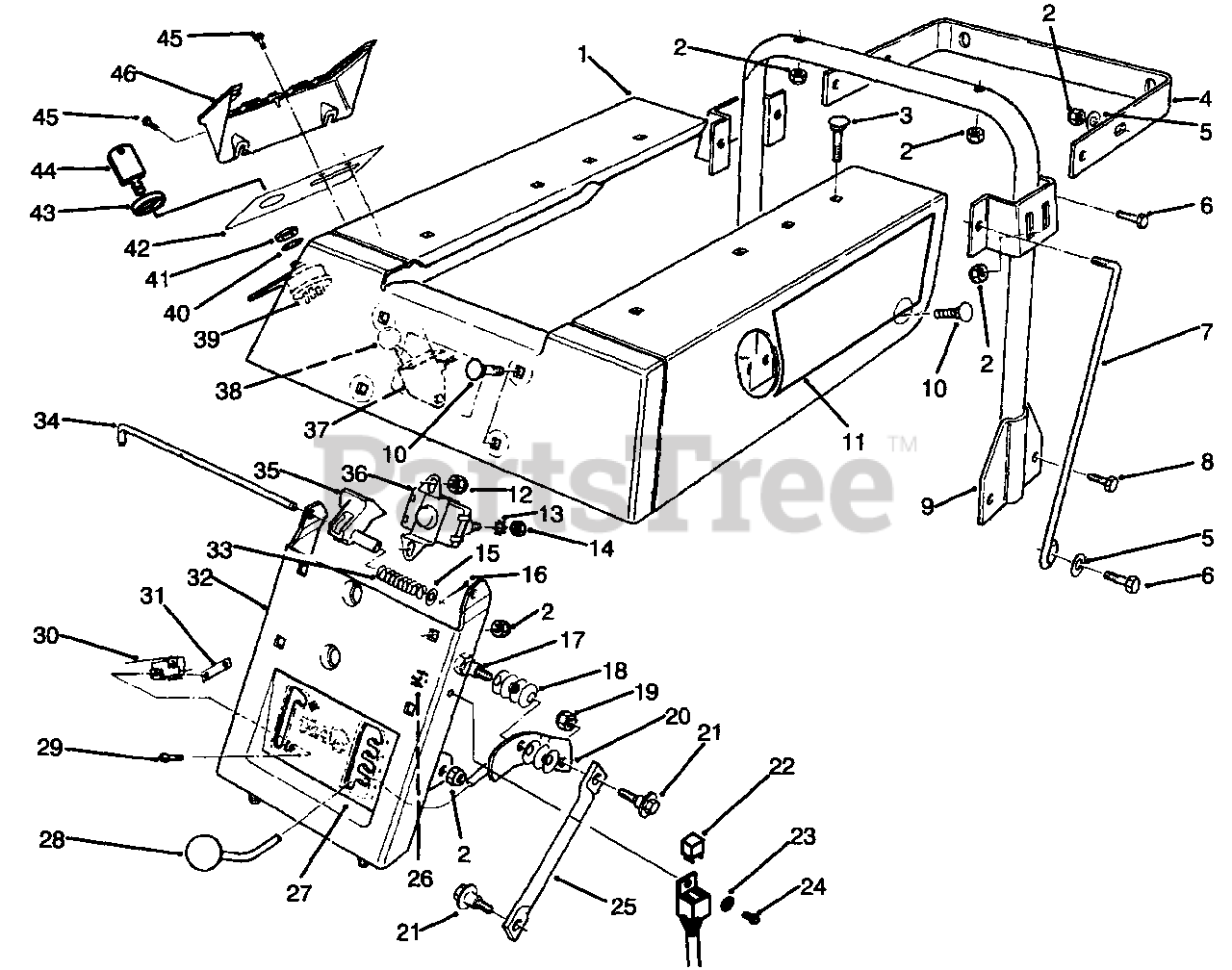

REAR BODY ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 67-0231-02

Body W.A.-Rear

$

$

Not available

2

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 3230-3

Bolt-Carriage

$1.49

$

In Stock, Qty 20+

0

4

$

$

Not available

5

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 322-5

Screw-Cap Hex. Hd.

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 67-1480

Brace-Support, Seat

$

$

Not available

8

Lawn-Boy 322-3

Screw-Cap Hex. Hd.

$0.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 67-0790-03

Support W.A.-Seat

$

$

Not available

10

Lawn-Boy 3230-20

Bolt-Carriage
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-2452

Decal-Lawn-Boy L.H.

$

$

Not available

Lawn-Boy 92-2450

Decal-Lawn-Boy R.H.

Note: Not Illustrated

$

$

Not available

12

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 3255-7

Washer-Lock, Int. Tooth

$1.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 3218-1

Nut-Jam

$1.49

$

In Stock, only 4 left!

0

15

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3274-4

Pin-Cotter

$2.99

$

In Stock, Qty 10

0

17

Lawn-Boy 28-0540

Bolt-Shoulder

$12.99

$

In Stock, Qty 5

0

18

Lawn-Boy 3290-413

Washer-Belleville

$5.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 67-0270

Handle W.A.-H.O.C.

$

$

Not available

21

Lawn-Boy 67-0870

Bolt-Shoulder

$

$

Not available

22

Lawn-Boy 48-4700

Relay
(Superseded to 116397)

$40.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 3256-14

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 3290-134

Screw-Cap Mach. Hd.

$0.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 67-0080

Link-H.O.C.

$

$

Not available

26

Lawn-Boy 3296-2

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 92-1755

Decal-H.O.C. & Deck Engagement

$

$

Not available

28

$25.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 147665

Screw-Phil. Head
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 88-9931

Switch-Micro

$45.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 3290-354

Nut-Double

$10.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 67-1090-03

Support W.A.-Seat
(Superseded to 67-1090-01)

$

$

Not available

33

Lawn-Boy 71-8310

Spring-Prop, Seat

$4.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 80-4550

Rod-Base, Seat

$23.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 80-4330

Prop-Seat

$18.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 47-1910

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 3 left!

0

37

Lawn-Boy 66-6640

Control-Throttle

$69.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 233-59

Knob
(Superseded to 233-25)

$5.49

$

In Stock, only 1 left!

0

39

Lawn-Boy 88-9830

Switch-Ignition (Incl. Ref. #40, 41 & 43)
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 3254-5

Washer-Lock, Int. Tooth

$1.49

$

In Stock, Qty 20+

0

41

Lawn-Boy 218-461

Nut-Hex.

$3.99

$

In Stock, Qty 9

0

42

Lawn-Boy 88-9970

Decal-Panel, Control

$

$

Not available

43

$

$

Not available

$6.49

$

In Stock, Qty 10

0

45

Lawn-Boy 32144-42

Screw-Hex. Hd. Tapping

$1.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 67-1030

Cover-Panel, Control

$

$

Not available
