8001 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1966) Model 2021 Master Gardner Tiller Parts Diagram

Walk-Behind Mower

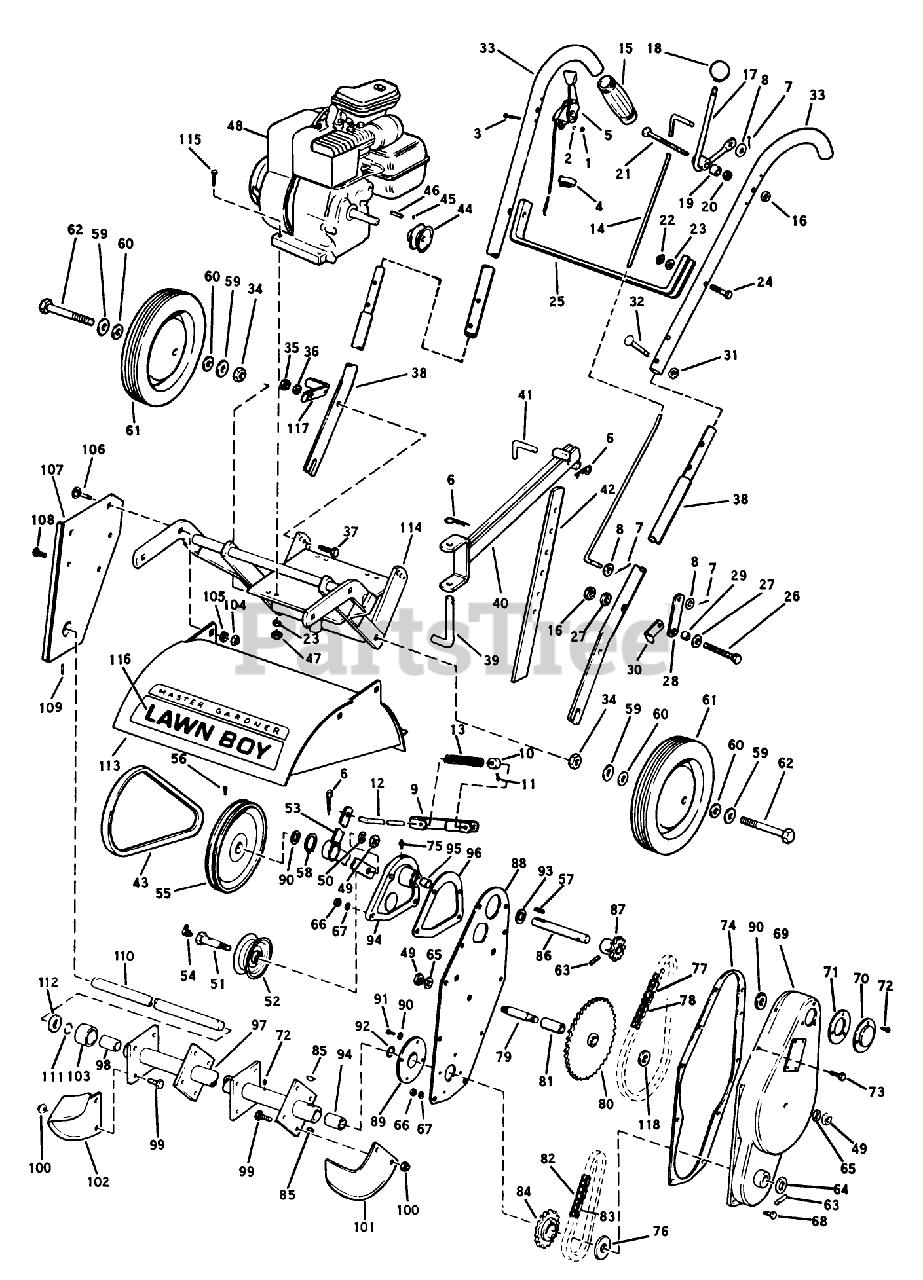

Model 2021 Master Gardner Tiller Parts Diagram

  • Title

1

Lawn-Boy 133079

NUT S

$3.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 104544

Lockwasher

$

$

Currently unavailable

3

Lawn-Boy 104542

Machine Screw #8-32 x 1-1/2 Lg.

$

$

Currently unavailable

4

Lawn-Boy 102680

Cable Clip

$

$

Currently unavailable

5

Lawn-Boy 150894

Throttle Control Assembly

$

$

Currently unavailable

6

Lawn-Boy 603927

DISCONTINUED

$

$

Not available

7

Lawn-Boy 306328

See Supercession: 3272-6
(Superseded to 3272-6)

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 103809

DISCONTINUED

$

$

Not available

9

Lawn-Boy 150073

Spring Bracket Assembly

$

$

Currently unavailable

10

Lawn-Boy 103501

DISCONTINUED

$

$

Not available

11

Lawn-Boy 103983

Set Screw

$

$

Currently unavailable

12

Lawn-Boy 102679

Engine 8 H.P.

$

$

Currently unavailable

13

Lawn-Boy 605055

DISCONTINUED

$

$

Not available

14

Lawn-Boy 102602

DISCONTINUED

$

$

Not available

15

Lawn-Boy 102669

DISCONTINUED

$

$

Not available

16

Lawn-Boy 603781

DISCONTINUED

$

$

Not available

17

Lawn-Boy 150072

Control Lever Assembly

$

$

Currently unavailable

18

Lawn-Boy 102672

DUP PART SEE $BOOK

$

$

Not available

19

Lawn-Boy 104540

Spacer

$

$

Currently unavailable

20

Lawn-Boy 103554

DISCONTINUED

$

$

Not available

21

Lawn-Boy 103030

DISCONTINUED

$

$

Not available

22

Lawn-Boy 104536

DISCONTINUED

$

$

Not available

23

Lawn-Boy 306325

DISCONTINUED

$

$

Not available

24

Lawn-Boy 603325

Screw

$

$

Currently unavailable

25

Lawn-Boy 102670

DISCONTINUED

$

$

Not available

26

Lawn-Boy 104805

DISCONTINUED

$

$

Not available

27

Lawn-Boy 103988

DISCONTINUED

$

$

Not available

28

Lawn-Boy 102673

Shifting Lever

$

$

Currently unavailable

29

Lawn-Boy 104512

Spacer

$

$

Currently unavailable

30

Lawn-Boy 102674

DISCONTINUED

$

$

Not available

31

Lawn-Boy 602830

NUT

$

$

Not available

32

Lawn-Boy 104537

Square Nut 5/16-18

$

$

Currently unavailable

33

Lawn-Boy 102600

DISCONTINUED

$

$

Not available

34

Lawn-Boy 103581

Hex Jam Nut 1/2-13

$

$

Currently unavailable

35

Lawn-Boy 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 602627

DISCONTINUED

$

$

Not available

37

Lawn-Boy 103748

Capscrew 3/8-16 x 1-1/4 Lg.

$

$

Currently unavailable

38

Lawn-Boy 150120

Handle Bar Tube Assembly

$

$

Currently unavailable

39

Lawn-Boy 102664

DISCONTINUED

$

$

Not available

40

Lawn-Boy 150068

Beam Assembly

$

$

Currently unavailable

41

Lawn-Boy 102666

Selector Pin

$

$

Currently unavailable

42

Lawn-Boy 102667

Depth Bar

$

$

Currently unavailable

43

Lawn-Boy 103335

DISCONTINUED

$

$

Not available

44

Lawn-Boy 102668

Pulley

$

$

Currently unavailable

45

Lawn-Boy 104535

DISCONTINUED

$

$

Not available

46

Lawn-Boy 103624

Key

$

$

Currently unavailable

47

Lawn-Boy 306932

Nut

$

$

Currently unavailable

48

Lawn-Boy 150875

Engine (B S)

$

$

Currently unavailable

49

Lawn-Boy 130541

DISCONTINUED

$

$

Not available

50

Lawn-Boy 120166

DISCONTINUED

$

$

Not available

51

Lawn-Boy 102660

DISCONTINUED
(Superseded to 107992)

$

$

Not available

52

Lawn-Boy 150067

Idler Pulley

$

$

Currently unavailable

53

Lawn-Boy 678433

DISCONTINUED

$

$

Not available

54

Lawn-Boy 103519

DUP PART SEE $BOOK

$

$

Not available

55

Lawn-Boy 102624

DUP PART SEE $BOOK

$

$

Not available

56

Lawn-Boy 104485

Set Screw

$

$

Currently unavailable

57

Lawn-Boy 103623

DISCONTINUED

$

$

Not available

58

Lawn-Boy 103966

DISCONTINUED
(Superseded to 110667)

$

$

Not available

59

Lawn-Boy 308091

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

60

Lawn-Boy 104533

Rubber Washer

$

$

Currently unavailable

61

Lawn-Boy 150070

Wheel Assembly 10 x 1.75

$

$

Currently unavailable

62

Lawn-Boy 604343

Hex Head Capscrew 1/2-13 NC x 4 Lg.

$

$

Currently unavailable

63

Lawn-Boy 104475

Roll Pin

$

$

Currently unavailable

64

Lawn-Boy 602916

DISCONTINUED

$

$

Not available

65

Lawn-Boy 306994

Lockwasher, Shakeproof

$

$

Currently unavailable

66

Lawn-Boy 306375

See Supercession: 146254
(Superseded to 146254)

$

$

Not available

67

Lawn-Boy 306992

WASHER-LOCK

$

$

Not available

68

Lawn-Boy 602480

SCREW

$

$

Not available

69

Lawn-Boy 605052

Cover

$

$

Currently unavailable

70

Lawn-Boy 605048

Cover Plate

$

$

Currently unavailable

71

Lawn-Boy 605053

Gasket (Cover Plate to Cover)

$

$

Currently unavailable

72

Lawn-Boy 604740

DISCONTINUED

$

$

Not available

73

Lawn-Boy 306418

Capscrew (Cover Assy. to Sleeve Assy.)

$

$

Currently unavailable

74

Lawn-Boy 105697

DISCONTINUED

$

$

Not available

75

Lawn-Boy 103515

Grease Fitting

$

$

Currently unavailable

76

Lawn-Boy 605051

Thrust Washer

$

$

Currently unavailable

77

Lawn-Boy 678377

Chain Connector Links

$

$

Currently unavailable

78

Lawn-Boy 678379

DISCONTINUED

$

$

Not available

79

Lawn-Boy 102635

Intermediate Shaft

$

$

Currently unavailable

80

Lawn-Boy 150063

Sprocket Cluster Assy

$

$

Currently unavailable

81

Lawn-Boy 103492

Bushing

$

$

Currently unavailable

82

Lawn-Boy 678376

DISCONTINUED

$

$

Not available

83

Lawn-Boy 678378

DISCONTINUED

$

$

Not available

84

Lawn-Boy 102654

See Supercession: 102654-01
(Superseded to 102654-01)

$74.99

$

Usually ships in 3-6 days

0

85

Lawn-Boy 102591

Woodruff Key

$

$

Currently unavailable

86

Lawn-Boy 605046

Input Shaft

$

$

Currently unavailable

87

Lawn-Boy 678431

Input Sprocket Hub Assembly

$

$

Currently unavailable

88

Lawn-Boy 605045

Back Plate Assembly

$

$

Currently unavailable

89

Lawn-Boy 605056

Seal

$

$

Currently unavailable

90

Lawn-Boy 303497

DISCONTINUED

$

$

Not available

91

Lawn-Boy 605057

Self-Tapping Screws (Seal to Back Plate)

$

$

Currently unavailable

92

Lawn-Boy 605079

Clamp, Seal

$

$

Currently unavailable

93

Lawn-Boy 105704

DISCONTINUED

$

$

Not available

94

Lawn-Boy 678432

Sleeve Bushing Assy.

$

$

Currently unavailable

95

Lawn-Boy 103487

DISCONTINUED
(Superseded to 104065)

$

$

Not available

96

Lawn-Boy 605050

DISCONTINUED

$

$

Not available

97

Lawn-Boy 150064

Rotor Tube Assembly

$

$

Currently unavailable

98

Lawn-Boy 103499

DISCONTINUED

$

$

Not available

99

Lawn-Boy 102648

DISCONTINUED

$

$

Not available

100

Lawn-Boy 104477

DISCONTINUED

$

$

Not available

101

Lawn-Boy 102646

DISCONTINUED

$

$

Not available

102

Lawn-Boy 102647

Tine LH

$

$

Currently unavailable

103

Lawn-Boy 102639

See Supercession: 102639-01
(Superseded to 102639-01)

$

$

Not available

104

Lawn-Boy 306562

Nut-Hex

$

$

Currently unavailable

105

Lawn-Boy 120177

WASHER, LOCK

$

$

Not available

106

Lawn-Boy 604190

Carriage Bolt 3/8-16 x 1 Lg.

$

$

Currently unavailable

107

Lawn-Boy 678430

Side Plate Assembly

$

$

Currently unavailable

108

Lawn-Boy 309744

Screw (Side Plate to Hood)

$

$

Currently unavailable

109

Lawn-Boy 104479

Roll Pin

$

$

Currently unavailable

110

Lawn-Boy 102649

Rotor Shaft

$

$

Currently unavailable

111

Lawn-Boy 104480

O Ring

$

$

Currently unavailable

112

Lawn-Boy 104478

Washer

$

$

Currently unavailable

113

Lawn-Boy 678428

Hood Assembly

$

$

Currently unavailable

114

Lawn-Boy 678427

Frame Assembly

$

$

Currently unavailable

115

Lawn-Boy 604039

DISCONTINUED

$

$

Not available

116

Lawn-Boy 604895

Decal-"LAWN BOY"

$

$

Currently unavailable

117

Lawn-Boy 105696

See Supercession: 253-118
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

118

Lawn-Boy 105703

DISCONTINUED

$

$

Not available
