800/24 (1695775) - Murray 24" Snow Thrower, 8hp (2009) Handles & Controls Group Parts Diagram

24" Snow Thrower, 8hp

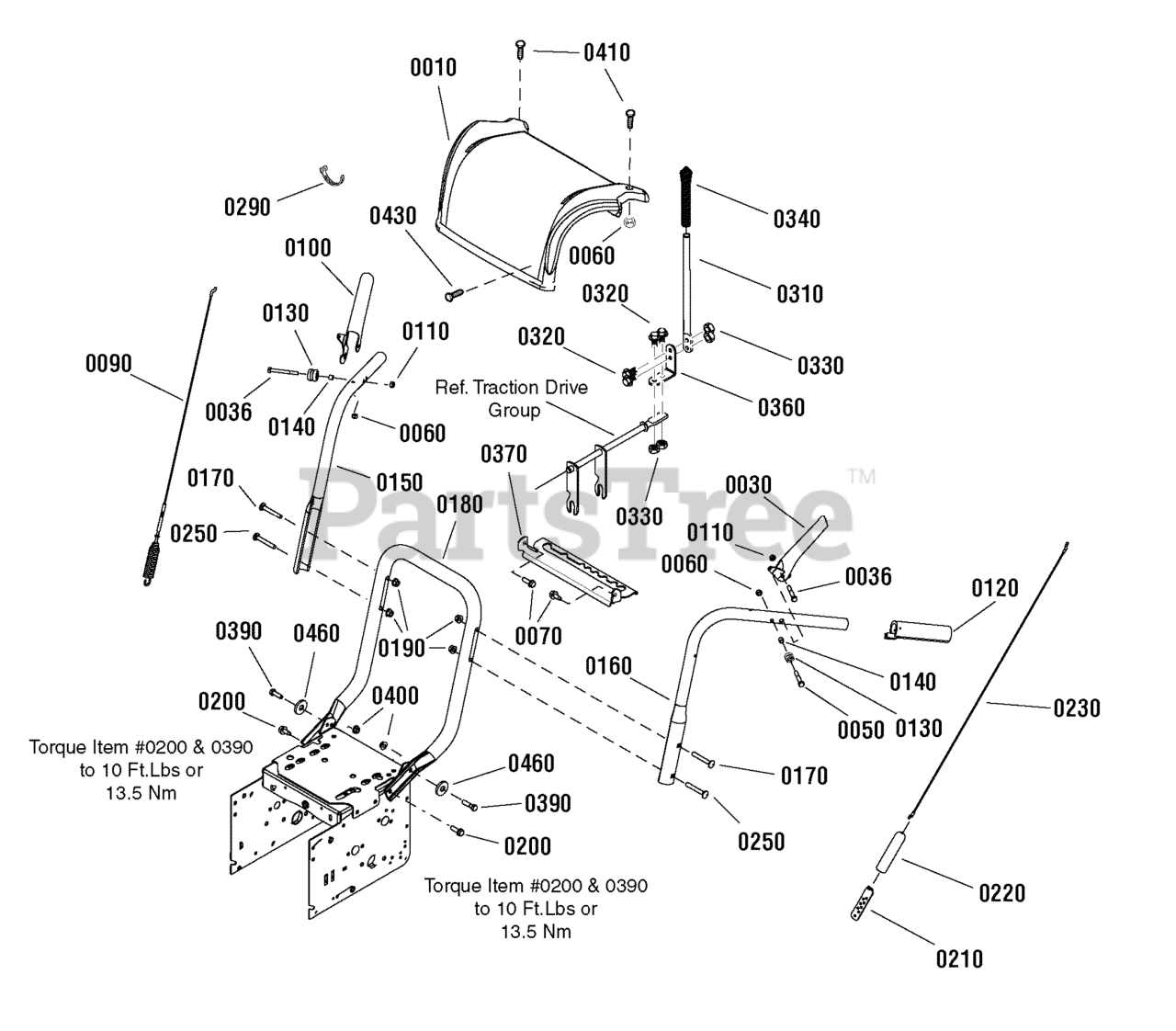

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1738089BIYP

PANEL, Dash

$55.99

$

Usually ships in 2-12 days

0

0030

Murray 1737690YP

LEVER, Clutch, LH

$37.99

$

In Stock, only 1 left!

0

0036

Murray 1922837SM

CAPSCREW, Hex-Head, 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0050

Murray 1921962SM

CAPSCREW, Hex-Head, 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0060

Murray 1920397SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 1927429SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0090

Murray 1732471SM

ASSEMBLY, Cable & Spring, Auger Drive, RH

$

$

Not available

0100

Murray 1736323YP

LEVER, Clutch, RH

$20.99

$

Usually ships in 2-12 days

0

0110

Murray 1923358SM

NUT, Hex, Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0120

Murray 1726317SM

GRIP, 1 Dia. x 5-1/2

$8.49

$

In Stock, only 1 left!

0

0130

Murray 1736542YP

SPACER

$4.49

$

Usually ships in 2-12 days

0

0140

Murray 1678392SM

SPACER, 1/4ID x 3/8OD x 5/16
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0150

Murray 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

0160

Murray 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

0170

Murray 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4 G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0180

Murray 1737759AYP

HANDLE, Lower

$176.99

$

Usually ships in 2-12 days

0

0190

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0200

Murray 1664847SM

SCREW, Hex-Washer head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0210

Murray 313441MA

BRACKET, Cable Adjust

$

$

Not available

0220

Murray 308146MA

BOOT, Clutch Spring, 4-1/16

$6.49

$

Usually ships in 2-12 days

0

0230

Murray 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 20+

0

0250

Murray 1931338SM

BOLT, Carriage, 5/16-18 x 1-3/4 G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0290

Murray 1701011SM

TIE, Self Locking, 16

$5.49

$

In Stock, only 2 left!

0

0310

Murray 1739507AYP

ROD, Shift

$12.99

$

Usually ships in 2-12 days

0

0320

Murray 302628MA

SCREW, Hex, 1/4-20 x 3/4 G5

$4.49

$

In Stock, Qty 7

0

0330

Murray 73826MA

NUT, 1/4-20 Hex Centerlock
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0340

Murray 331624MA

GRIP, Ball End, 7/16ID

$5.99

$

In Stock, only 1 left!

0

0360

Murray 760564MA

LEVER, Spring Shift

$9.99

$

Usually ships in 2-12 days

0

0370

Murray 1737760BIYP

BRACKET, Gear Select

$14.99

$

Usually ships in 2-12 days

0

0390

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0400

Murray 1935048SM

NUT, Hex Flange, 5/16-18 TWO-WAY LK GA
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0410

Murray 1931320SM

BOLT, Carriage, 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

0430

Murray 1960556SM

SCREW, Pan-Head, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0460

Murray 71071MA

WASHER, FLAT .349 X .69 X .066
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0
