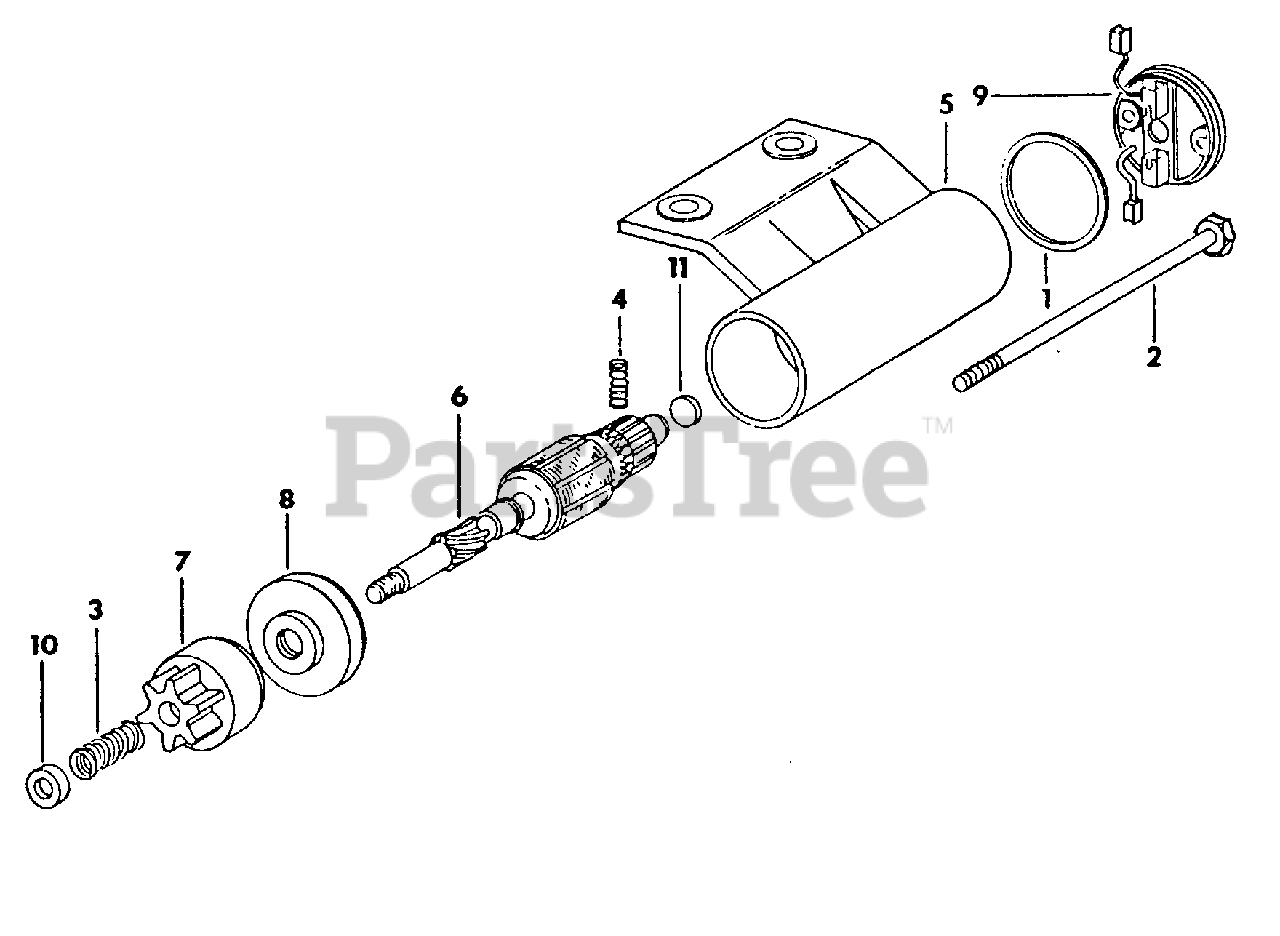

800 (2050520U) - Cub Cadet Garden Tractor Starter Motor Parts Diagram

Garden Tractor

Starter Motor Parts Diagram

  • Title

~NLA

Starter Motor Assy

Note: (Order replacement starter KH-41-098-03 which is a larger diameter starter

$

$

Not available

1

~NLA

Gasket, Cap

$

$

Not available

2

Cub Cadet KH-41-086-02

Screw, Attaching

$

$

Not available

~NLA

Washer, 13/64 X 3/8 X .032 Cdp

$

$

Not available

3

~NLA

Spring, Anti-Drift

$

$

Not available

4

~NLA

Spring, Brush

$

$

Not available

5

Housing Assy, Motor

Note: (Not serviced separately, order KH-41-098-03)

$

$

Not available

6

~NLA

Armature Assy

$

$

Not available

~NLA

Washer, 33/64 X 3/4 X .020

$

$

Not available

Cub Cadet 712-0237

Nut, 5/16-NF Cad P/T Lock Type 8

$4.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-41-171-02

Pinion Assy, Torsion Drive

$

$

Not available

8

~NLA

Cap Assy, Drive End

$

$

Not available

9

Cub Cadet KH-41-227-02

Cap Assy, Commutator End

$

$

Currently unavailable

10

~NLA

Stop, Pinion

$

$

Not available

11

~NLA

Disc, Thrust

$

$

Not available
