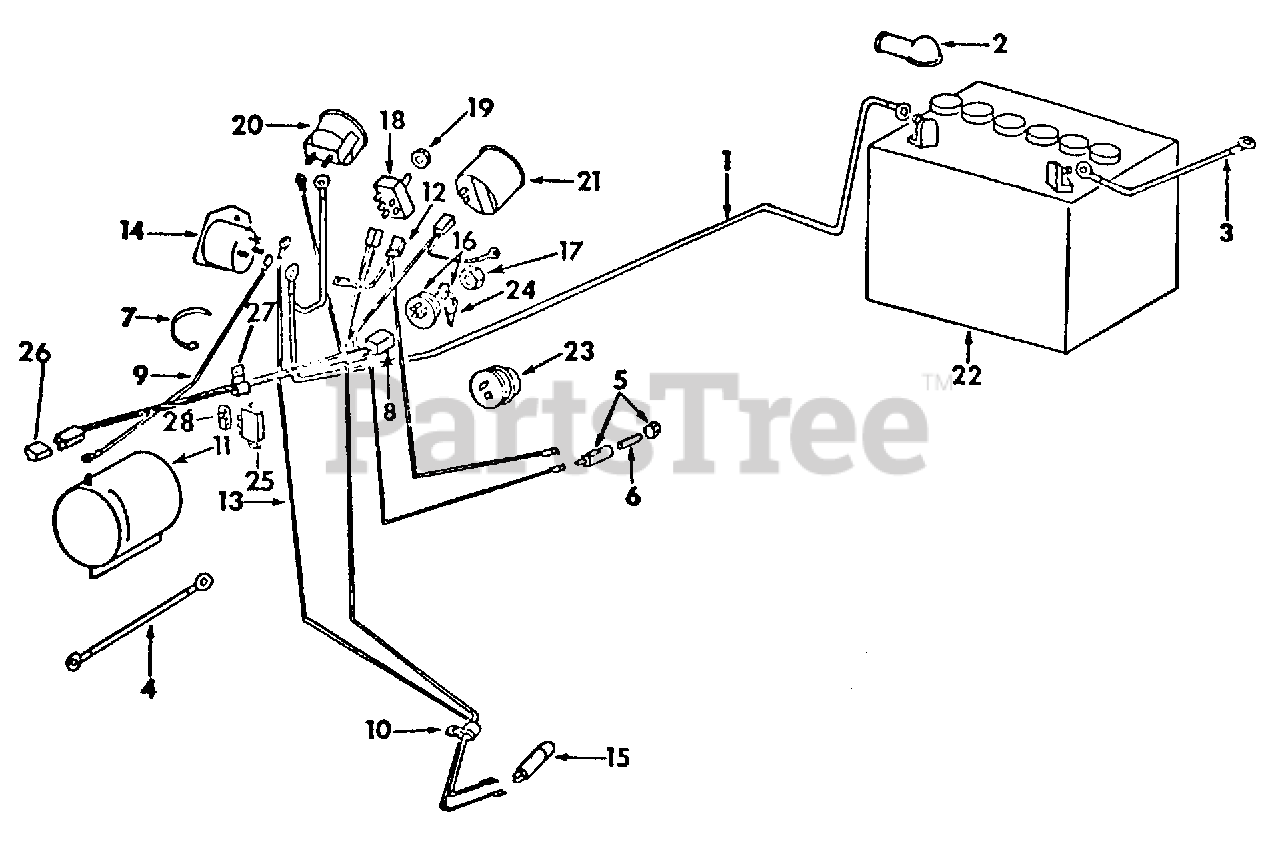

800 (2050510U) - Cub Cadet Garden Tractor Ignition & Starting Parts Diagram

Garden Tractor

Ignition & Starting Parts Diagram

  • Title

1

Cub Cadet IH-545721-R3

Cable, Battery (Positive)

$

$

Not available

Cub Cadet 710-0451

Bolt, 5/16 X 3/4 Znd Sq Nk Crg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 725-3007

Cover, Battery Terminal

$

$

Not available

3

Cub Cadet 725-0978

Cable, Battery Negative to Ground
(Superseded to 925-0978)

$

$

Not available

Bolt, 1/4 X 3/4 Znd Sq Nk Crg

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 19

0

4

~NLA

Cable, Engine to Ground

$

$

Not available

5

Cub Cadet 725-3011

Holder, Fuse
(Superseded to 925-3011)

$21.99

$

In Stock, Qty 7

0

6

Cub Cadet 725-3012

Fuse, 10 Amp
(Superseded to 925-3012)

$6.49

$

In Stock, only 2 left!

0

7

Cub Cadet 726-3011

Strap, Cable Lock

$

$

Not available

8

Cub Cadet IH-106267-C1

Cable, Key Switch

$

$

Not available

9

Cub Cadet IH-106268-C3

Cable, Magnetic Switch to Cranking Motor

$

$

Currently unavailable

10

~NLA

Clip, Cable (Steering)

$

$

Not available

11

Cub Cadet KH-41-098-03

Starter Motor Assy
(Superseded to KH-41-098-08)

$

$

Not available

12

Cub Cadet IH-106715-C1

Cable Assy, Clutch Switch

$

$

Not available

13

~NLA

Cable, Magnetic Switch to Neutral Starting Switch

$

$

Not available

14

Cub Cadet 725-3001

Switch, Magnetic
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0349

Nut, 10-32 Znd Hex

$4.99

$

In Stock, Qty 5

0

Nut, 1/4-20 Hex

Note: (Common Hardware, Purchase Locally)

$

$

Not available

15

Cub Cadet 725-3060

Switch, Neutral Start
(Superseded to 925-3060)

Note: (Serial No. 539772 & below)

$40.99

$

In Stock, only 2 left!

0

Cub Cadet 725-3038

Switch, Neutral Start
(Superseded to 925-3038)

Note: (Serial No. 539773 to 540114)

$80.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-61524-C2

Switch, Battery Ignition Key
(Superseded to IH-61524-C3)

$43.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0156

Washer, .656 X 1.00 X .105 Flat Znd

$4.49

$

In Stock, Qty 12

0

17

Cub Cadet 712-3013

Nut, Battery Ignition Switch

$

$

Not available

18

Cub Cadet 725-3022

Switch, PTO
(Superseded to 925-3022)

$54.99

$

In Stock, only 2 left!

0

Cub Cadet IH-25846-R1

Washer, .875 X .469 X .063

$

$

Not available

Cub Cadet IH-138549

Washer, .512 X .867 Int Tooth Lock

$

$

Not available

19

Cub Cadet 712-3014

Nut, Switch

$

$

Not available

20

Cub Cadet 725-3023

Indicator, Charge
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

21

Cub Cadet IH-106382-C91

Timer, Maintenance Minder

$

$

Not available

22

Cub Cadet IH-PRLU

Battery, IH Low-Maintenance, 12 Volt
(Superseded to 925-1707D)

$

$

Not available

23

Not used in this application

$

$

Not available

24

Cub Cadet 725-0201

Key, Battery Ignition Switch
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

Cub Cadet KH-25-755-03

Regulator Assy

$

$

Not available

Cub Cadet TC-792026

Screw, 1/4-20 X 7/8 Znd Hex Hd Cap

$4.49

$

Usually ships in 3-12 days

0

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

26

Cub Cadet KH-48-155-02

Connector

$

$

Not available

Washer, No. 10 Int Tooth Znd Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-27095-R1

Screw, 10-24 X 1 Znd Pan Hd Mach

$

$

Not available

27

~NLA

Clip, Lead

$

$

Not available

28

Cub Cadet KH-236602

Connector
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

Cub Cadet KH-X-131-1

Screw

$

$

Not available

Screw w/Spring Lock Washer Hd Self Tap Znd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 5/8 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-LH14099514

Cable, Key Switch

$

$

Not available

~NLA

Cable, Key Switch

$

$

Not available
