800 (131-512B100) - Cub Cadet Rear-Engine Riding Mower Engine (1991) B&S 10 HP 256707-0138-01 Part 1 Parts Diagram

Rear-Engine Riding Mower Engine

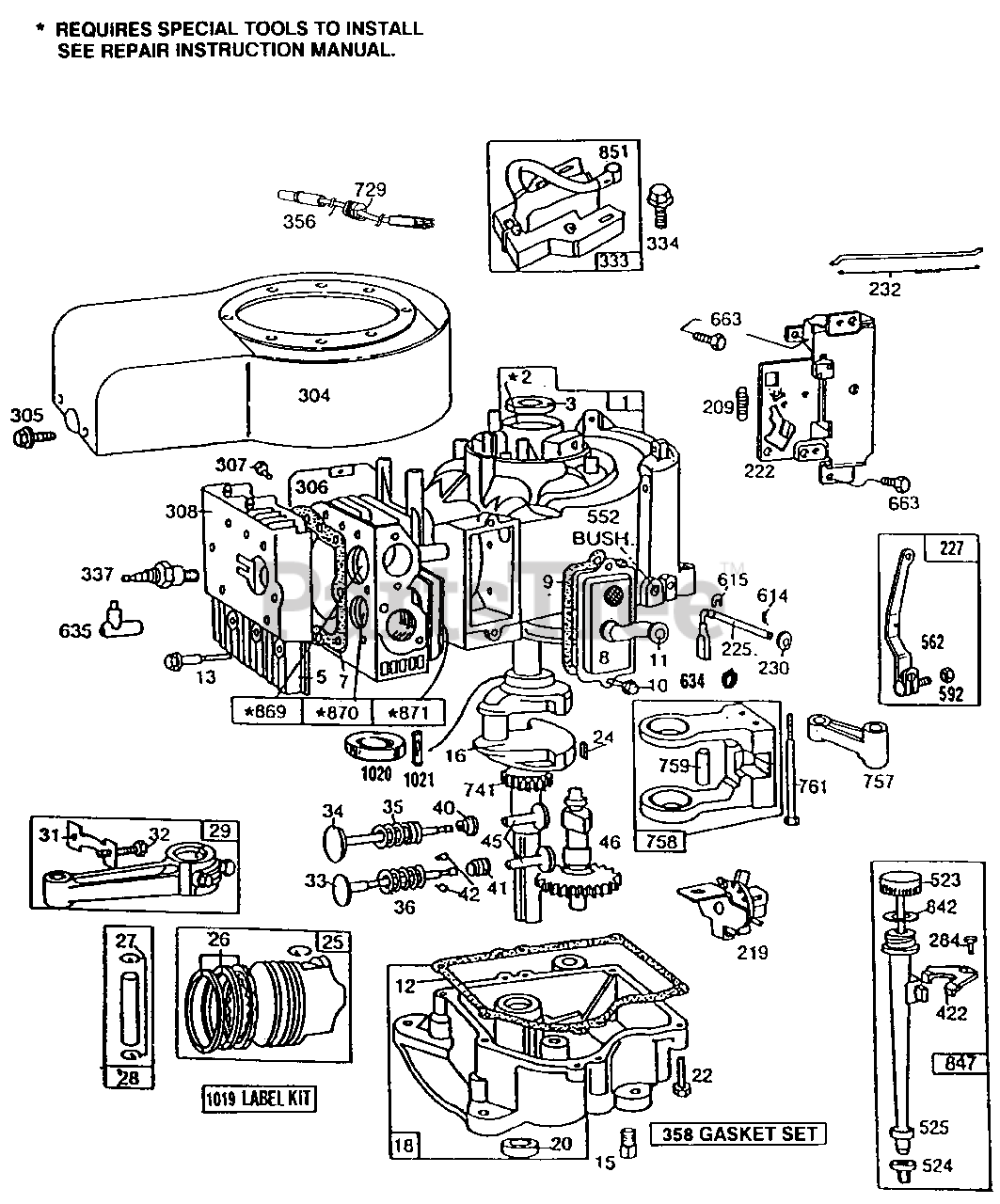

B&S 10 HP 256707-0138-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-395705

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399265

Bearing-Cylinder
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-212914

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-271866

Gasket-Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, only 4 left!

0

8

Cub Cadet BS-391406

Breather Assembly
(Superseded to BS-495735)

$63.99

$

In Stock, Qty 5

0

9

Cub Cadet BS-27803

Gasket-Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-93394

Screw-Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280100

Tube-Breather
(Superseded to BS-692253)

$9.99

$

In Stock, Qty 19

0

12

Cub Cadet BS-271702

Gasket-Crankcase Cover-1/64" Thick
(Superseded to BS-271702S)

$10.99

$

In Stock, Qty 6

0

Cub Cadet BS-270915

Gasket-Crankcase Cover-.005" Thick

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-270916

Gasket-Crankcase Cover-.009" Thick

$9.49

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-93723

Screw-Cylinder Head (3" Long)

$

$

Not available

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-491647

Crankshaft

$

$

Not available

18

Cub Cadet BS-391784

Sump-Engine

$288.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-291675

Seal-Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93585

Screw-Sump Mounting Sem

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-394661

Piston Ass'y.-Standard
(Superseded to BS-499284)

$

$

Not available

Cub Cadet BS-394662

Piston Assembly-.010" O.S.
(Superseded to BS-499288)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394663

Piston Assembly-.020" O.S.

$

$

Not available

Cub Cadet BS-394664

Piston Assembly-.030" O.S.

$

$

Not available

26

Cub Cadet BS-394665

Ring Set-Piston-Std.
(Superseded to BS-499996)

$53.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391781

Ring Set-Piston-.010" O.S.

$

$

Not available

Cub Cadet BS-391782

Ring Set-Piston-.020" O.S.

$

$

Not available

Cub Cadet BS-391783

Ring Set-Piston-.030" O.S.

$

$

Not available

27

Cub Cadet BS-260924

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-299691

Pin Assembly-Piston-Standard

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391286

Pin Assembly-Piston- .005" O.S.

$

$

Currently unavailable

29

Cub Cadet BS-490348

Rod Assembly-Connecting

$50.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222299

Lock-Connecting Rod Screw

$

$

Not available

32

Cub Cadet BS-92909

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-261185

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-261462

Valve-Intake

$

$

Not available

35

Cub Cadet BS-65906

Spring-Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring-Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer-Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil-Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

42

Cub Cadet BS-93630

Retainer-Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 2 left!

0

45

Cub Cadet BS-262248

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-212897

Gear-Cam

$

$

Not available

209

Cub Cadet BS-260695

Spring-Governor
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 15

0

219

Cub Cadet BS-490815

Oil Slinger, Governor Gear and Bracket Assembly
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 20+

0

222

Cub Cadet BS-491594

Plate-Governor Control

$

$

Not available

225

Cub Cadet BS-231058

Crank-Governor (1/4" Dia.)
(Superseded to BS-692012)

$13.99

$

In Stock, only 2 left!

0

227

Cub Cadet BS-490927

Lever Ass'y.-Governor

$16.99

$

Usually ships in 2-12 days

0

230

Cub Cadet BS-222450

Washer-Governor Crank (1/4" I.D.)
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

232

Cub Cadet BS-260584

Spring-Governor Link
(Superseded to BS-692207)

$6.99

$

In Stock, only 3 left!

0

284

Cub Cadet BS-93804

Screw-Clamp Mtg.
(Superseded to 710-0432)

$

$

Not available

304

Cub Cadet BS-398333

Housing-Blower

$

$

Currently unavailable

305

Cub Cadet BS-93158

Screw-Blower Housing Mounting Sem

$

$

Not available

306

Cub Cadet BS-222542

Shield-Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93949

Screw-Cylinder Shield Mtg. Sem

$

$

Not available

308

Cub Cadet BS-222725

Cover-Cylinder Head

$

$

Not available

333

Cub Cadet BS-398811

Armature-Magneto

$63.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

337

Cub Cadet 759-3331

Plug-Spark 1-7/8" High- 47 MM

$3.99

$

In Stock, only 2 left!

0

356

Cub Cadet BS-494328

Wire-Assembly

$

$

Not available

358

Cub Cadet BS-393411

Gasket Set

$60.99

$

Usually ships in 2-12 days

0

422

Cub Cadet BS-223394

Clamp-Oil Filler Tube
(Superseded to BS-690593)

$11.99

$

In Stock, only 1 left!

0

523

Cub Cadet BS-391841

Cap and Dipstick-Oil Filler

$

$

Not available

524

Cub Cadet BS-68838

Seal-Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-280134

Tube-Oil Filler

$28.99

$

In Stock, only 1 left!

0

552

Cub Cadet BS-231597

Bushing-Governor Crank (1/4" I.D.)

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex, 10-24

$

$

Not available

614

Cub Cadet BS-93306

Cotter-Hairpin

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 3 left!

0

634

Cub Cadet BS-491323

Seal-Oil Filler Cap
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 8

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 13

0

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

729

Cub Cadet BS-281159

Clip-Lead Wire

$

$

Not available

741

Cub Cadet BS-262135

Gear-Timing
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-212359

Link-Counterweight

$

$

Not available

758

Cub Cadet BS-391373

Counterweight Assembly

$

$

Not available

759

Cub Cadet BS-298909

Pin-Counterweight

$8.99

$

In Stock, only 3 left!

0

761

Cub Cadet BS-93875

Screw-Counterweight

$

$

Currently unavailable

842

Cub Cadet BS-270920

Seal-Oil Filler Cap
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

847

Cub Cadet BS-392067

Fill Group-Oil

$

$

Not available

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-261463

Seat-Intake Valve (Standard)
(Superseded to BS-691802)

$17.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-210940

Seat-Exhaust Valve (Standard)
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-261961

Guide-Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-491257

Label Kit

$

$

Currently unavailable

1020

Cub Cadet BS-261242

Eccentric

$

$

Not available

1021

Cub Cadet BS-94160

Pin-Eccentric

$

$

Not available
