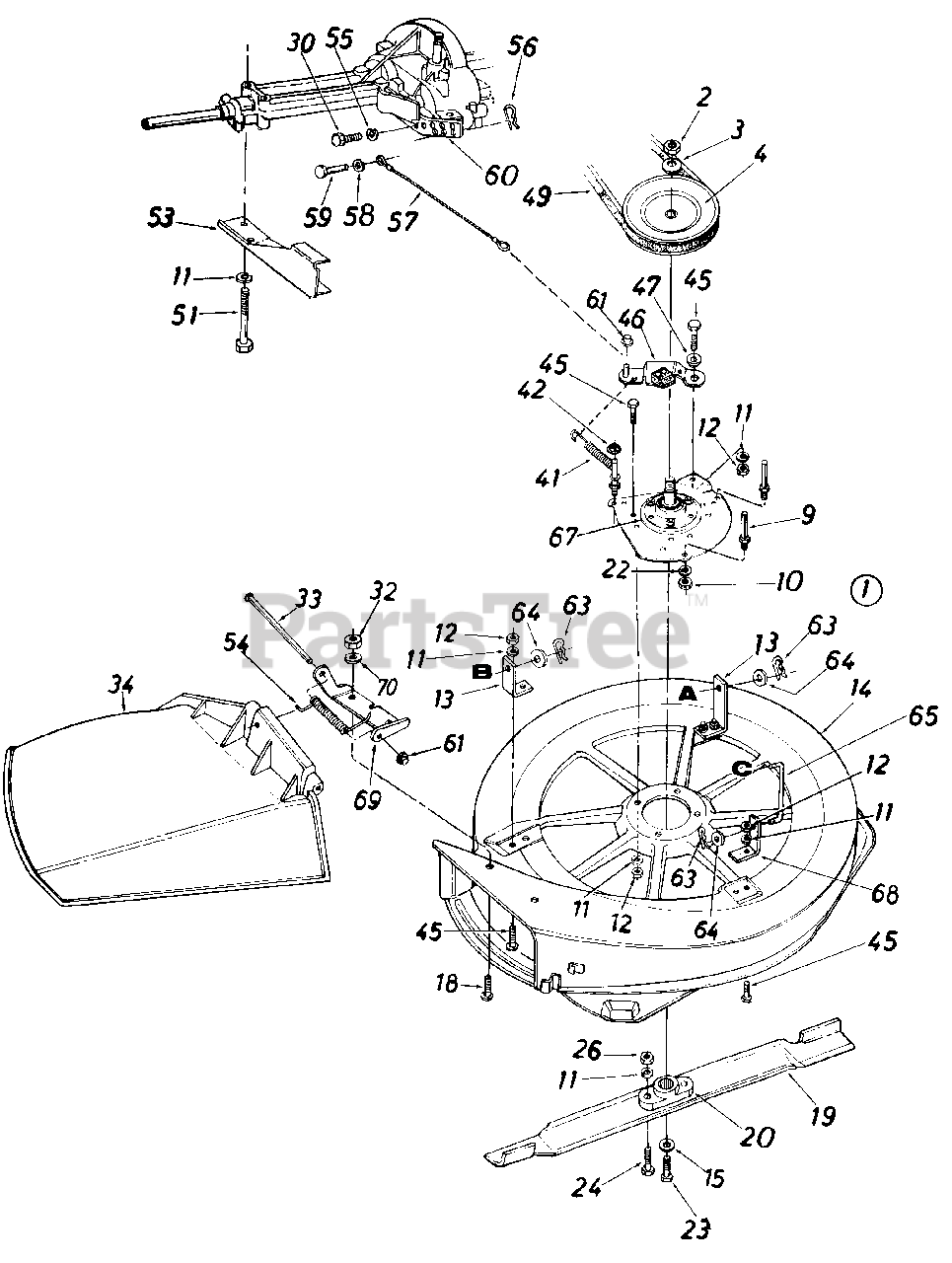

800 (130-512B100) - Cub Cadet Rear-Engine Riding Mower (1990) 30" Side Discharge Mowing Deck Parts Diagram

Rear-Engine Riding Mower

30" Side Discharge Mowing Deck Parts Diagram

  • Title
1

Cub Cadet 17611

30" S.D. Deck Ass'y. Comp.

$

$

Not available

2

Cub Cadet 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

3

Cub Cadet 736-0317

Bell-Wash. .630" I.D. x 1.25"

$7.99

$

In Stock, Qty 20+

0

4

Cub Cadet 756-0430

5/8 V-Pulley .75" I.D. x .7"

$100.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 16706

Hanger Brkt. 3.25"

Variations

Cub Cadet 16706-0637

BRACKET-HANGER POWDER BLA - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 17610

30" S.D Deck Ass'y.

Variations

Cub Cadet 17610-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 17610-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

15

Cub Cadet 736-0217

L.-Wash. 3/8" I.D. Hd.

$4.49

$

In Stock, Qty 8

0

18

Cub Cadet 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 742-0256A

30" High Lift Blade

$

$

Not available

20

Cub Cadet 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

22

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.0
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

30

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

32

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

34

Cub Cadet 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

41

Cub Cadet 732-0157

Extension Spring

$14.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 726-0201

Push Speed Nut

$6.99

$

In Stock, only 2 left!

0

45

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75"*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 16053

Blade Brake Brkt. Ass'y.

$

$

Not available

47

Cub Cadet 748-0234

Shoulder Spacer .500" Dia.

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 754-0264

"V"-Belt
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

53

Cub Cadet 15625B

Lower Outside Belt Guard

Variations

Cub Cadet 15625B-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

54

Cub Cadet 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

55

Cub Cadet 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

56

Cub Cadet 714-0104

Int. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 727-0296

Brake Cable 9.75" Lg.

$

$

Not available

58

Cub Cadet 736-0142

Fl-Wash. .281" I.D. x .50"

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 711-0701

Clevis Pin 1/4" Dia.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

60

Cub Cadet 15626A

Lower Inside Belt Guard
(Superseded to 15626B-0637)

$

$

Not available

61

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 714-0145

Int. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

65

Cub Cadet 747-0428

Deck Link 3.9" Lg.

$

$

Currently unavailable

67

Cub Cadet 717-0916

Blade Spindle Ass'y. Comp.

$

$

Not available

68

Cub Cadet 15621A

Weld Bracket

$

$

Not available

69

Cub Cadet 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

70

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0
