80 (0350021U) - Cub Cadet Lawn Tractor Service Engines Parts Diagram

Lawn Tractor

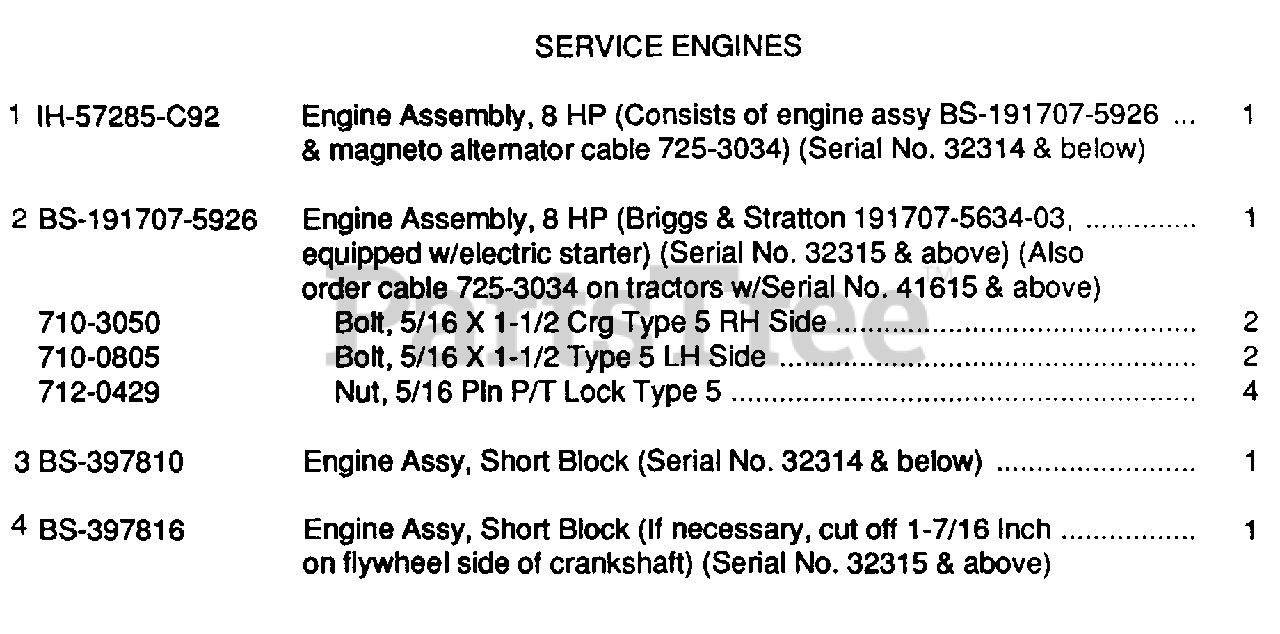

Service Engines Parts Diagram

  • Title

1

Cub Cadet IH-57285-C92

Engine Assembly, 8 HP

Note: (Consists of engine assy BS-191707-5926 & magneto alternator cable 725-3034) (Serial No. 32314 & below)

$

$

Currently unavailable

2

Cub Cadet BS-191707-5926

Engine Assembly, 8 HP

Note: (Briggs & Stratton 191707-5634-03, equipped w/electric starter) (Serial No. 32315 & above) (Also order cable 725-3034 on tractors w/Serial No. 41615 & above)

$

$

Not available

Cub Cadet 710-3050

Bolt, 5/16 X 1-1/2 Crg Type 5 RH Side
(Superseded to 710-0262)

$3.99

$

In Stock, Qty 11

0

Cub Cadet 710-0805

Bolt, 5/16 X 1-1/2 Type 5 LH Side
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0429

Nut, 5/16 Pin P/T Lock Type 5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-397810

Engine Assy, Short Block

Note: (Serial No. 32314 & below)

$

$

Currently unavailable

4

Cub Cadet BS-397816

Engine Assy, Short Block

Note: (If necessary, cut off 1-7/16 Inch on flywheel side of crankshaft) (Serial No. 32315 & above)

$

$

Currently unavailable
