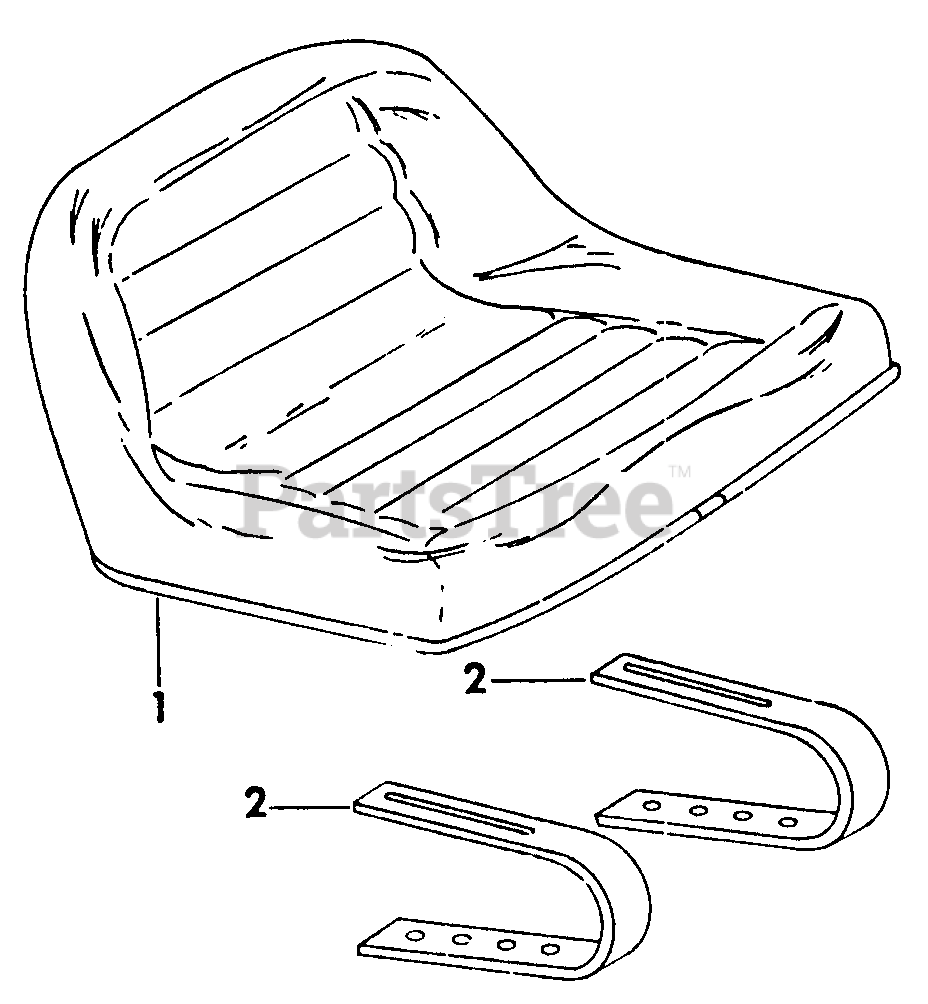

80 (0350002U) - Cub Cadet Lawn Tractor Seat & Support Parts Diagram

Lawn Tractor

Seat & Support Parts Diagram

  • Title
1

Cub Cadet 759-3147

Seat Assy

$

$

Currently unavailable

2

Cub Cadet 703-0354

Spring, Seat Support

$

$

Not available

Cub Cadet 710-0118

Screw, 5/16-18 X 3/4 Znd Hex Hd Cap
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3000

Screw, 3/8-16 X 3/4 Znd Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 710-0644

Screw, 3/8-16 X 3-1/4 Znd Hex Hd Cap
(Superseded to 710-3130)

$10.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-25708-R1

Washer, .406 X .750 X .105
(Superseded to 936-0275)

$

$

Not available
