80 (0350002U) - Cub Cadet Lawn Tractor Hydrostatic Controls Parts Diagram

Lawn Tractor

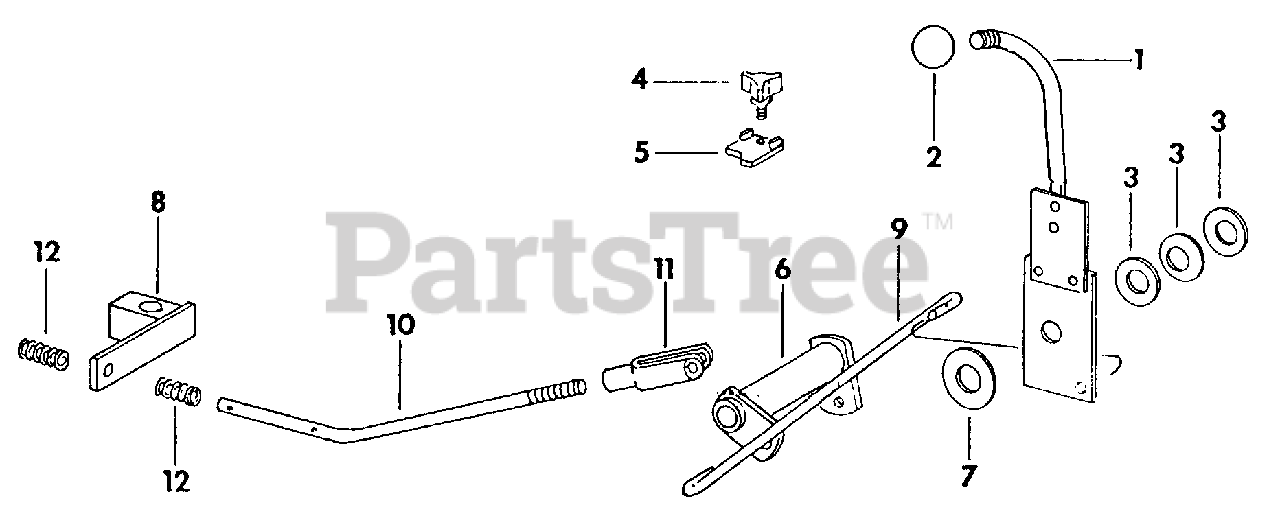

Hydrostatic Controls Parts Diagram

  • Title

1

Cub Cadet 703-0303

Lever Assy, Speed Control

$

$

Not available

2

Cub Cadet 720-3000

Knob, Shifter
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet IH-3479

Washer, .219 X .562 X .054

$

$

Currently unavailable

3

Cub Cadet 736-3035

Spring, Belleville

$

$

Not available

Cub Cadet 712-3021

Nut, 3/4-16 Cad Hex Lock
(Superseded to 912-3021)

$

$

Not available

4

Cub Cadet 721-3003

Knob, Fluted

$

$

Not available

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .049 Znd

$6.99

$

In Stock, Qty 9

0

5

~NLA

Stop, Handle Detent

$

$

Not available

6

Cub Cadet 703-0305

Rockshaft Assy

$

$

Not available

7

Cub Cadet 723-3019

Washer, Frictional Disc

$

$

Not available

8

Cub Cadet 703-0307

Arm Assy, Control Shaft

$

$

Not available

Cub Cadet 736-0140

Washer, .106 X .812 X .051 Znd

$7.49

$

In Stock, Qty 6

0

Cub Cadet IH-385525-R1

Nut, 3/8-16 Cad Hex Lock
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

Cub Cadet 714-0156

Key, 1/8 X 1/2 Woodruff 3

$

$

Not available

9

Cub Cadet 747-3039

Rod, Control

$

$

Not available

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Cotter

$4.99

$

In Stock, Qty 13

0

10

Cub Cadet 747-3040

Rod, Control Rear

$

$

Not available

11

Cub Cadet 719-3018

Clevis, 5/16-24 Adj Rod End

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 711-3060

Pin, 5/16 X .940 Pln Clevis

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Cotter

$4.49

$

In Stock, Qty 12

0

Cub Cadet 714-0474

Pin, 1/8 X 7/8 Hv Coiled Spring

$4.99

$

In Stock, Qty 13

0

Cub Cadet 736-0275

Washer, .344 X .688 X .051 Znd

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 732-3022

Spring, Compression

$

$

Not available
