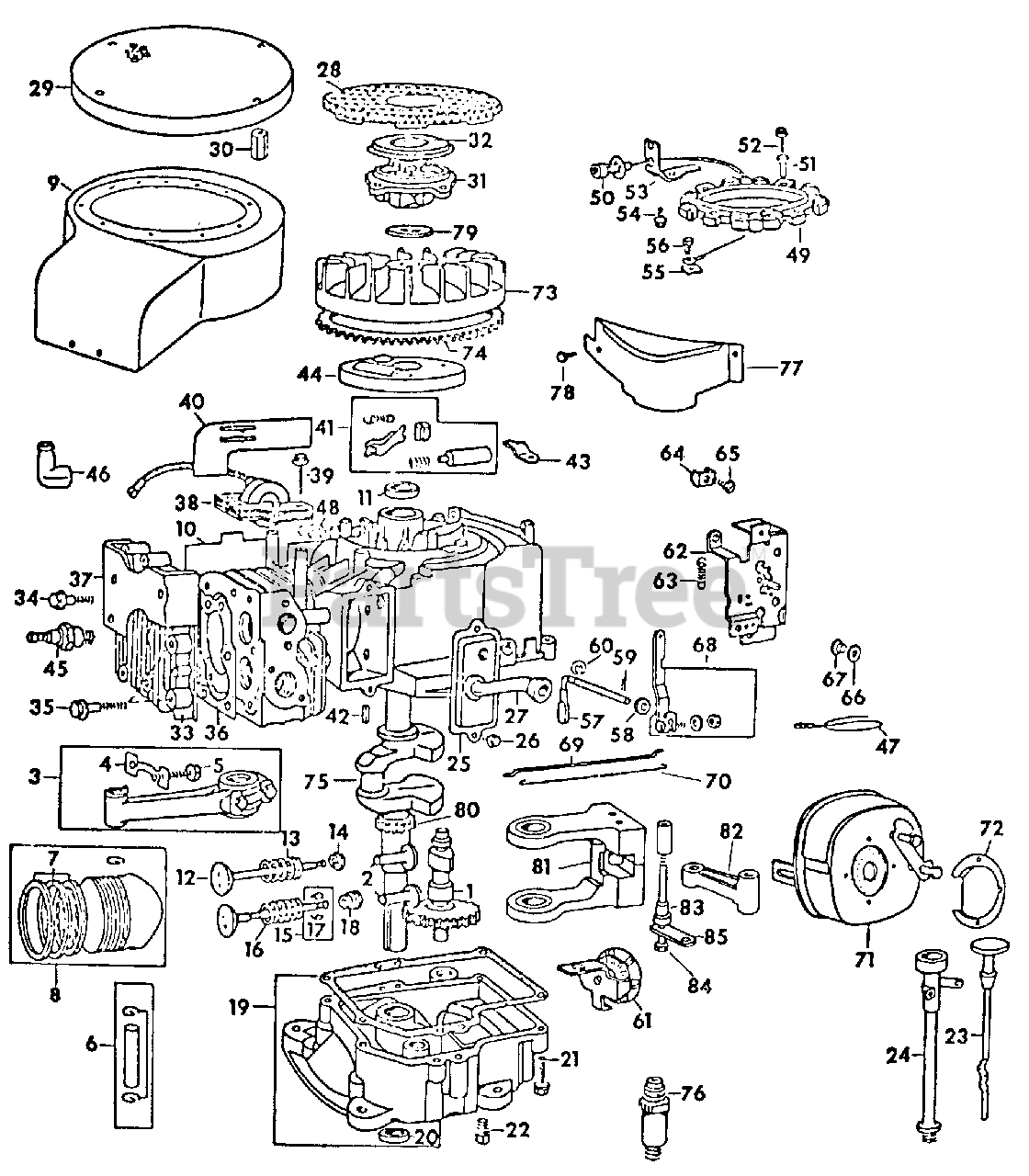

80 (0350002U) - Cub Cadet Lawn Tractor Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title

1

Cub Cadet IH-549356-R1

Gear

Note: (Serial no. 32314 & below)

$

$

Currently unavailable

Cub Cadet IH-126085-C1

Gear

Note: (Serial no. 32315 & above)

$

$

Currently unavailable

2

Cub Cadet BS-260933

Tappet, Valve

$

$

Not available

3

Cub Cadet BS-390402

Rod Assy, Connecting, Std

$84.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-222114

Lock, Screw Head

$

$

Not available

5

Cub Cadet BS-92659

Screw, Connecting Rod

$

$

Currently unavailable

6

Cub Cadet BS-295840

Pin, Piston, Std

$

$

Not available

7

Cub Cadet BS-299743

Ring Set, Piston Chrome, Std
(Superseded to BS-690014)

$

$

Not available

Cub Cadet BS-391669

Ring Set, Piston, Std
(Superseded to BS-499921)

$47.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-391673

Piston Assy, Std
(Superseded to BS-499907)

$

$

Not available

9

Cub Cadet BS-491408

Housing, Blower

$30.99

$

Usually ships in 2-12 days

0

Screw, 1/4-20 X 1/2 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet BS-222830

Shield, Cylinder

$

$

Not available

Screw w/Spring Lock Washer, 10-24 X 3/8 Znd Hex Hd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

11

Cub Cadet BS-294606

Seal, Oil

$

$

Not available

12

Cub Cadet BS-261055

Valve, Intake
(Superseded to BS-261055S)

$32.99

$

In Stock, only 2 left!

0

13

Cub Cadet BS-65906

Spring, Intake Valve

$

$

Not available

14

Cub Cadet BS-221596

Retainer, Intake Valve
(Superseded to BS-690656)

$

$

Not available

15

Cub Cadet BS-390419

Valve w/Keepers, Exhaust

$

$

Not available

16

Cub Cadet BS-26828

Spring, Exhaust Valve

$

$

Not available

17

Cub Cadet BS-93630

Retainer, Roto-Coil
(Superseded to BS-494553)

$7.99

$

In Stock, only 2 left!

0

18

Cub Cadet BS-292260

Roto-Coil, Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

19

Cub Cadet BS-392548

Sump, Oil

$110.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391086

Seal, Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-93585

Screw, Crankcase Cover Mounting

$

$

Not available

22

Cub Cadet BS-91084

Plug, 3/8-18 Automotive Sq Hd Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

23

Not used in this application

$

$

Not available

24

Not used in this application

$

$

Not available

25

Cub Cadet BS-391406

Breather, Valve Chamber
(Superseded to BS-495735)

$63.99

$

In Stock, Qty 5

0

26

Cub Cadet BS-93394

Screw, Breather Mounting
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

27

Cub Cadet BS-280005

Tube, Breather
(Superseded to BS-692293)

$10.99

$

In Stock, Qty 6

0

28

Cub Cadet BS-221796

Screen, Rewind Starter

Note: (Serial no. 32314 & below)

$

$

Not available

Screw, 8-32 X 3/8 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet BS-92791

Washer, No. 8 Znd Int Tooth Lock
(Superseded to BS-691077)

$3.49

$

In Stock, only 2 left!

0

29

Cub Cadet BS-222302

Screen, Blower Housing

Note: (Serial no. 32315 & above)

$

$

Currently unavailable

30

Cub Cadet IH-62412-C1

Spacer, Blower Housing Screw

Note: (Serial no. 32315 & above)

$

$

Currently unavailable

31

Cub Cadet BS-394897

Housing, Rewind Starter (Clutch)

$36.99

$

In Stock, only 2 left!

0

Cub Cadet IH-17010-R1

Ball, 5/16 Cr Stl 25 Grade

$

$

Not available

32

Cub Cadet BS-222277

Cover, Housing

$

$

Currently unavailable

33

Cub Cadet BS-211778

Head, Cylinder

$

$

Not available

34

Cub Cadet BS-93113

Screw, Cylinder Head, Short
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet BS-93211

Screw, Cylinder Head, Long

$

$

Not available

36

Cub Cadet BS-270430

Gasket, Cylinder Head
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222351

Cover, Cylinder Head

$

$

Currently unavailable

38

Cub Cadet BS-298968

Armature Assy, Magneto

$

$

Not available

39

Cub Cadet BS-93381

Screw, Armature Mounting

$

$

Not available

40

Cub Cadet BS-221760

Guide, Air

$

$

Not available

41

Cub Cadet BS-299061

Kit, Breaker Point & Condenser
(Superseded to BS-294628)

$

$

Not available

42

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

43

Cub Cadet IH-549466-R1

Clamp, Condenser

$

$

Currently unavailable

Screw, 8-32 X 3/8 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet BS-92791

Washer, No. 8 Znd Int Tooth Lock
(Superseded to BS-691077)

$3.49

$

In Stock, only 2 left!

0

44

Cub Cadet BS-222117

Cover, Breaker Point

$5.99

$

Usually ships in 2-12 days

0

Cub Cadet 710-3090

Screw, 8-32 X 3/8 Znd Hex Washer Hd

$

$

Not available

45

IH-CJ8

Plug, Resistor Spark (Champion)

$

$

Not available

46

Cub Cadet BS-66538

Elbow, Spark Plug Insulator
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 12

0

47

Cub Cadet BS-398808

Wire Assy, Ground

$11.99

$

In Stock, only 1 left!

0

48

Cub Cadet IH-539882-R1

Clip, Wire

$

$

Currently unavailable

49

Cub Cadet BS-391529

Stator w/Bracket, Alternator
(Superseded to BS-696578)

Note: (Furnish cable 725-3034 on tractors w/serial no. 41615 & below)

$124.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-393814

Cable Assy, Diode & Connector

Note: (Used for servicing of cable on stator BS-391529)

$18.99

$

In Stock, only 2 left!

0

50

Cub Cadet BS-391507

Diode

$17.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-261269

Spring, Diode

$2.49

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-230976

Bushing, Stator

$4.49

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-93621

Screw, Stator Mounting
(Superseded to BS-691183)

$

$

Not available

53

Cub Cadet BS-222211

Bracket, Fuse

$6.49

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-93394

Screw, Bracket Mounting
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

Washer, .203 X .500 X .041 Znd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

55

Cub Cadet BS-222095

Retainer

$

$

Currently unavailable

56

Cub Cadet BS-93705

Screw, 8-32 X 3/8 Hex Hd
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 9

0

57

Cub Cadet IH-539879-R1

Crank, Governor

$

$

Currently unavailable

58

Cub Cadet IH-549898-R1

Washer, Governor Crank

$

$

Currently unavailable

59

Cub Cadet BS-93306

Cotter, Governor Crank

$

$

Not available

60

Cub Cadet BS-93307

Retainer, Governor Crank

$5.99

$

In Stock, only 3 left!

0

61

Cub Cadet BS-298614

Gear, Governor

$18.99

$

Usually ships in 2-12 days

0

~NLA

Washer, Governor Gear

$

$

Not available

62

Cub Cadet BS-396349

Plate, Governor

$

$

Not available

Cub Cadet 710-3090

Screw, 8-32 X 3/8 Znd Hex Washer Hd

$

$

Not available

Cub Cadet 710-0432

Screw, 10-32 X 3/8 Hex Hd Tap

$

$

Not available

63

Cub Cadet BS-261487

Spring, Governor

$4.99

$

Usually ships in 2-12 days

0

64

Cub Cadet BS-221535

Clamp, Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 7

0

65

Cub Cadet BS-93496

Screw w/Lock Washer, Hex Hd
(Superseded to BS-690804)

$

$

Not available

66

Cub Cadet BS-66068

Washer, Insulating

$

$

Currently unavailable

67

Cub Cadet BS-66554

Collar, Insulating

$

$

Currently unavailable

68

Cub Cadet BS-298303

Lever Assy, Governor

$

$

Currently unavailable

69

Cub Cadet BS-260971

Link, Governor

$8.99

$

Usually ships in 2-12 days

0

70

Cub Cadet BS-260584

Spring, Governor Link
(Superseded to BS-692207)

$6.99

$

In Stock, only 3 left!

0

71

Cub Cadet BS-391313

Muffler
(Superseded to BS-692304)

$34.99

$

In Stock, only 4 left!

0

Cub Cadet BS-93704

Bolt, Muffler

$15.99

$

Usually ships in 2-12 days

0

72

Cub Cadet BS-393758

Deflector

Note: (Serial no. 32314 & below)

$26.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-393757

Deflector
(Superseded to BS-796956)

Note: (Serial no. 32315 & above)

$10.99

$

Usually ships in 2-12 days

0

Cub Cadet 710-3090

Screw, 8-32 X 3/8 Znd Hex Washer Hd

$

$

Not available

Screw, 1/4-20 X 1/2 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0463

Washer, .281 X .625 X .051 Znd

$4.49

$

In Stock, only 2 left!

0

73

Cub Cadet BS-392028

Flywheel

Note: (Serial no. 32314 & below)

$

$

Currently unavailable

Cub Cadet BS-391983

Flywheel w/Ring Gear

Note: (Serial no. 32315 & above)

$

$

Not available

74

Cub Cadet BS-391246

Gear, Flywheel Ring

Note: (Serial no. 32314 & below)

$

$

Currently unavailable

Cub Cadet 703-0075

Gear, Flywheel Ring

Note: (Serial no. 32315 & above)

$

$

Not available

Cub Cadet IH-549448-R1

Screw, 10-32 Esna Stop

$

$

Currently unavailable

~NLA

Nut, 10-32 Esna Stop

$

$

Not available

75

Cub Cadet BS-261038

Crankshaft

Note: (Serial no. 32314 & below)

$

$

Currently unavailable

Cub Cadet IH-126338-C1

Crankshaft

Note: (Serial no. 32315 & above)

$

$

Currently unavailable

76

Cub Cadet BS-296768

Plug, Oil Minder

$

$

Not available

77

Cub Cadet BS-395405

Guard, Ring Gear

$

$

Not available

78

Cub Cadet BS-93410

Screw, Guard Mounting

$7.99

$

In Stock, only 1 left!

0

79

Cub Cadet BS-220865

Washer, Spring

$

$

Currently unavailable

Screw w/Spring Lock Washer, 8-32 X 1/2 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

80

Cub Cadet BS-261195

Gear, Timing

Note: (Serial no. 32315 & above)

$17.99

$

Usually ships in 2-12 days

0

81

Cub Cadet BS-390172

Counterweight

Note: (Serial no. 32315 & above)

$

$

Currently unavailable

82

Cub Cadet BS-212359

Link, Counterweight

Note: (Serial no. 32315 & above)

$

$

Not available

83

Cub Cadet IH-126089-C1

Spacer, Counterweight

Note: (Serial no. 32315 & above)

$

$

Currently unavailable

84

Cub Cadet BS-93874

Bolt, Counterweight

Note: (Serial no. 32315 & above)

$

$

Currently unavailable

85

~NLA

Shim, Screw Head Lock

Note: (Serial no. 32315 & above)

$

$

Not available

Cub Cadet BS-299577

Kit, Gasket

Note: Includes Intake Elbow Gasket, Crankcase Gasket, Valve Cover

$35.99

$

In Stock, Qty 11

0

Cub Cadet BS-270430

Gasket,
(Superseded to BS-272163S)

Note: Includes Cylinder Head Gasket, Crankcase, .005 Thick Gasket, Crankcase, .009 Thick Gasket, Filter Bowl Gasket, Carburetor Mounting

$7.99

$

In Stock, Qty 20+

0

Cub Cadet BS-270824

Gasket, Carburetor Mounting Gasket, Intake Elbow
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 6

0
