8/25 E (1692467) - Simplicity Baker Chipper Vacuum, 8hp Frame & Front Wheels Group Parts Diagram

Baker Chipper Vacuum, 8hp

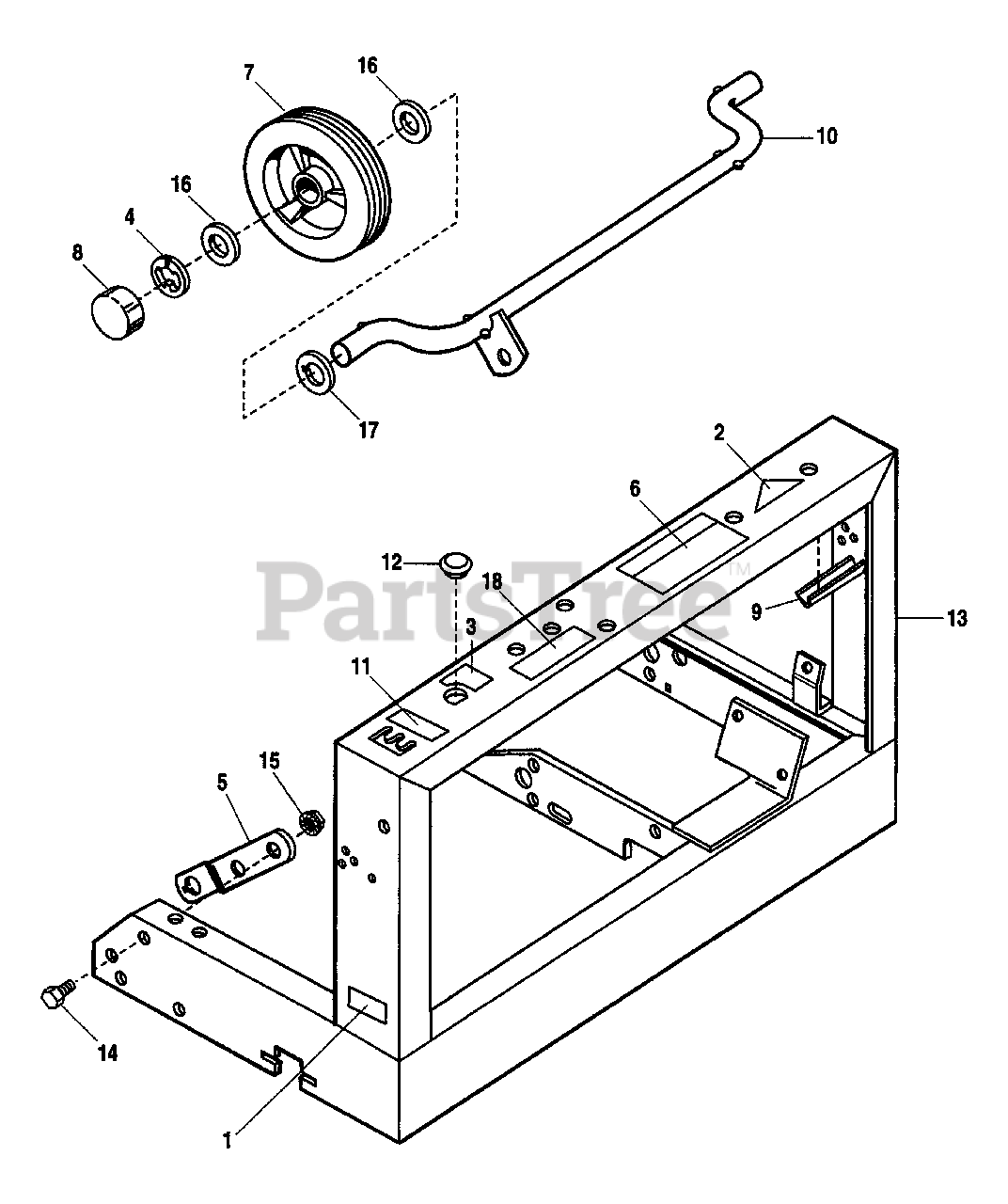

Frame & Front Wheels Group Parts Diagram

  • Title

1

I.D. PLATE

$

$

Not available

2

DECAL, OPEI

$

$

Not available

3

Simplicity 174885

DECAL, Ignition (Electric start models only)

$

$

Not available

4

Simplicity 1704420SM

KLIP RING, External (for 5/8" Shaft)

$4.99

$

In Stock, only 2 left!

0

5

Simplicity 1713884SM

BRACKET Axle

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1713885SM

DECAL, Operating Instructions

$

$

Not available

7

Simplicity 1713935SM

WHEEL, Front, 8 x 1-3/4

$21.99

$

Usually ships in 2-12 days

0

8

Simplicity 1713936SM

HUBCAP, Front Wheels

$

$

Not available

9

Simplicity 1714032SM

EDGE PROTECTOR

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1714034SM

AXLE ASSY., Front

$36.99

$

Usually ships in 2-12 days

0

11

Simplicity 1714343

DECAL, Nozzle height

$

$

Not available

12

Simplicity 1714480SM

PLUG, Hole, Double "D" (Manual start models only)

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1714976SM

FRAME ASSY.

Note: When replacing the frame on the following models you must also order Height Adjustment Handle Kit, part no. 1686666.

$

$

Not available

14

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

15

Simplicity 1931277SM

NUT, Serrated, Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 1960020SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1960537

WASHER, Keyhole

$

$

Not available

18

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0
