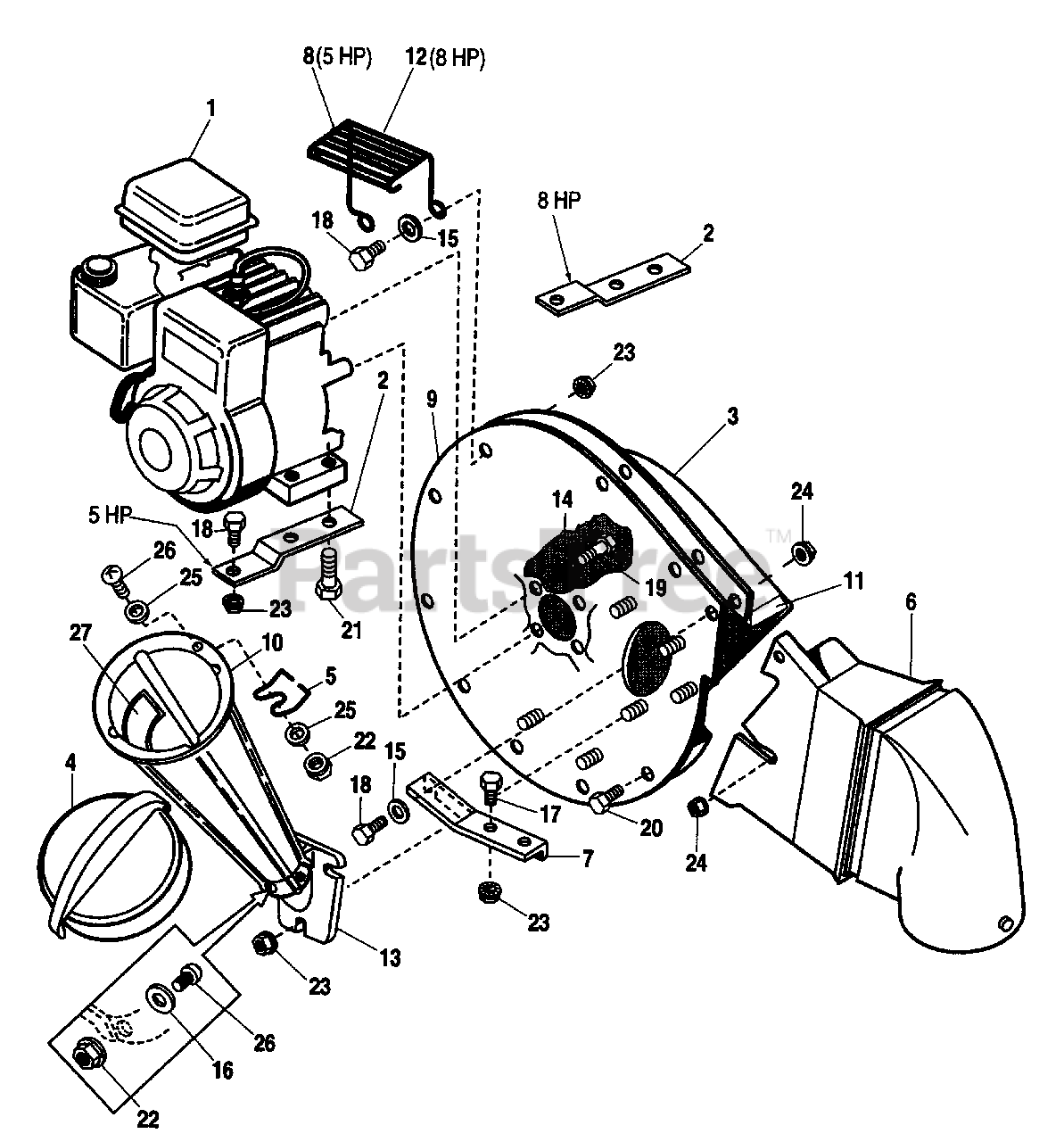

8/25 E (1692467) - Simplicity Baker Chipper Vacuum, 8hp Engine, Cone & Plate Assemblies Parts Diagram

Baker Chipper Vacuum, 8hp

Engine, Cone & Plate Assemblies Parts Diagram

  • Title

1

ENGINE, 5 HP (Briggs & Stratton)

$

$

Not available

1

ENGINE, 8 HP (Briggs & Stratton)

$

$

Not available

1

ENGINE, 8 HP, Electric Start, (Briggs & Stratton)

$

$

Not available

2

Simplicity 1713864

ENGINE SUPPORT, 5 HP

$

$

Not available

2

Simplicity 1713865SM

ENGINE SUPPORT, 8 HP

$

$

Not available

3

Simplicity 1713866SM

FAN HOUSING ASSY.

$142.99

$

Usually ships in 2-12 days

0

4

Simplicity 1713868SM

CAP, Cone

$

$

Not available

5

Simplicity 1713869SM

HINGE, Cap

$15.99

$

Usually ships in 2-12 days

0

6

Simplicity 1713870SM

TUBE, Discharge

$

$

Not available

7

Simplicity 1713872SM

BRACE

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1714033SM

GUARD, Muffler (5 HP models)

$47.99

$

Usually ships in 2-12 days

0

9

Simplicity 1714085SM

PLATE ASSY., Engine

$159.99

$

Usually ships in 2-12 days

0

10

Simplicity 1709409SM

CONE, Orange
(Superseded to 1753576YP)

$

$

Not available

10

Simplicity 1714091SM

CONE, Yellow
(Superseded to 1753576YP)

$

$

Not available

11

Simplicity 1714344SM

SEAL, Fan Housing

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 1714711

GUARD, Muffler (8 HP models)

$

$

Not available

13

Simplicity 1713272SM

CASTING, Cone, 3"
(Superseded to 1753576YP)

$

$

Not available

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

16

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

18

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1921515SM

CAPSCREW, Hex Hd., 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1928635SM

SCREW, Taptite, 3/8-16 x 1-1/4 (Manual start models only)

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 1930642SM

NUT, 2 Way Lock, 1/4 x 20
(Superseded to 703916)

$4.99

$

In Stock, Qty 6

0

23

Simplicity 1931277SM

NUT, Serrated, Flange Lock., 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Simplicity 1935048SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1960151SM

WASHER, 1/4
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

26

Simplicity 1960507SM

SCREW, Allen Hd. 1/4 x 3/4

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0
