8/12 (1692335) - Simplicity Chipper Shredder Rotor Group - Model 8/12 Parts Diagram

Chipper Shredder

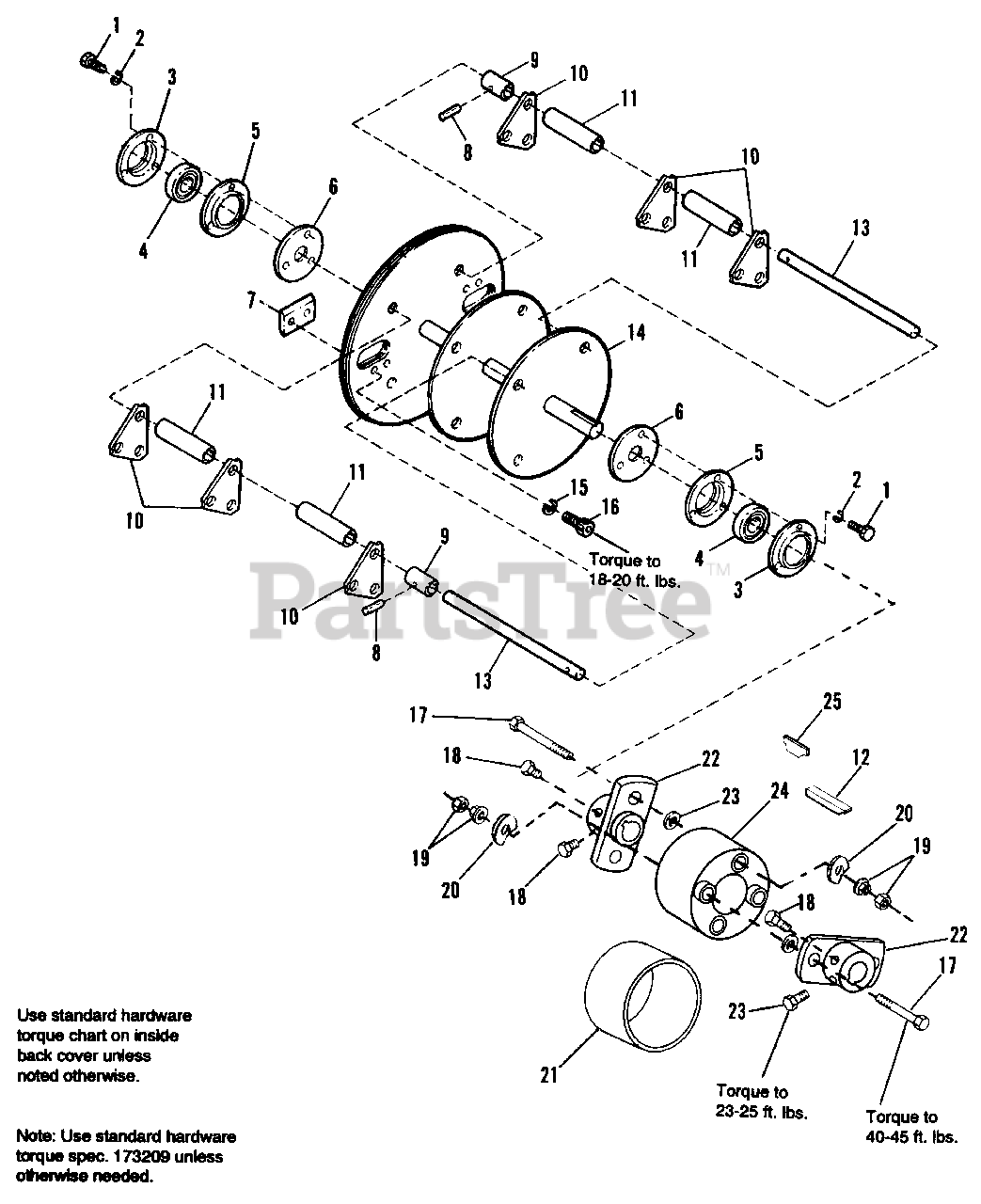

Rotor Group - Model 8/12 Parts Diagram

  • Title

1

Simplicity 1925205SM

CAPSCREW, Hex, 5/16-18 x 5/8, Gr. 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2172279ASM

FLANGE, Bearing w/Zerk Fitting

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, Qty 20+

0

5

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, Qty 8

0

6

Simplicity 1729205SM

GUARD, Bearing

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1729148SM

KNIFE, 3"

$136.99

$

Usually ships in 2-12 days

0

8

Simplicity 2816169SM

ROLL PIN, 3/16 x 3/4

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1729143SM

SPACER, Short, 17/32 x 3/4 x 1-1/4

$9.99

$

Usually ships in 2-12 days

0

10

Simplicity 1729138SM

HAMMER, Triangle

$48.99

$

In Stock, Qty 12

0

11

Simplicity 1729144SM

SPACER, Long, 17/32 x 3/4 x 2-1/2

$14.99

$

Usually ships in 2-12 days

0

12

Simplicity 2805100SM

KEY, Square, 1/4 x 1/4 x 2-1/4

$5.49

$

In Stock, only 1 left!

0

13

Simplicity 1729142SM

SHAFT, Hammer, 1/2 x 7-9/16

$43.99

$

Usually ships in 2-12 days

0

14

Simplicity 1686608SM

ROTOR ASSY.

$

$

Not available

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1729217SM

CAPSCREW, 5/16-18 x 7/8

$2.99

$

In Stock, only 3 left!

0

17

Simplicity 1928957SM

CAPSCREW, Hex, 3/8-16 x 2-3/4, Gr.8

$6.49

$

In Stock, only 2 left!

0

18

Simplicity 2836228

CAPSCREW, Hex, Socket Hd., 5/16-18 x 3/4, Gr. 8

$

$

Not available

19

Simplicity 1930645SM

NUT, Hex, Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1713486SM

WASHER, Special, 13/32 x 1-1/2 x 1/8

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 1713439SM

SLEEVE, Coupler

$47.99

$

Usually ships in 2-12 days

0

22

Simplicity 1709582SM

HUB & PLATE ASSY.

$

$

Not available

23

Simplicity 1922755SM

WASHER, Plain, 13/32 x 1 x 1/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

24

Simplicity 1709996SM

COUPLER, Drive

$222.99

$

Usually ships in 2-12 days

0

25

Simplicity 2822138SM

KEY, Hi-Pro

$9.99

$

In Stock, only 2 left!

0
