8/12 (1692335) - Simplicity Chipper Shredder Hopper & Housing Group - Models 5/12 & 8/12 Parts Diagram

Chipper Shredder

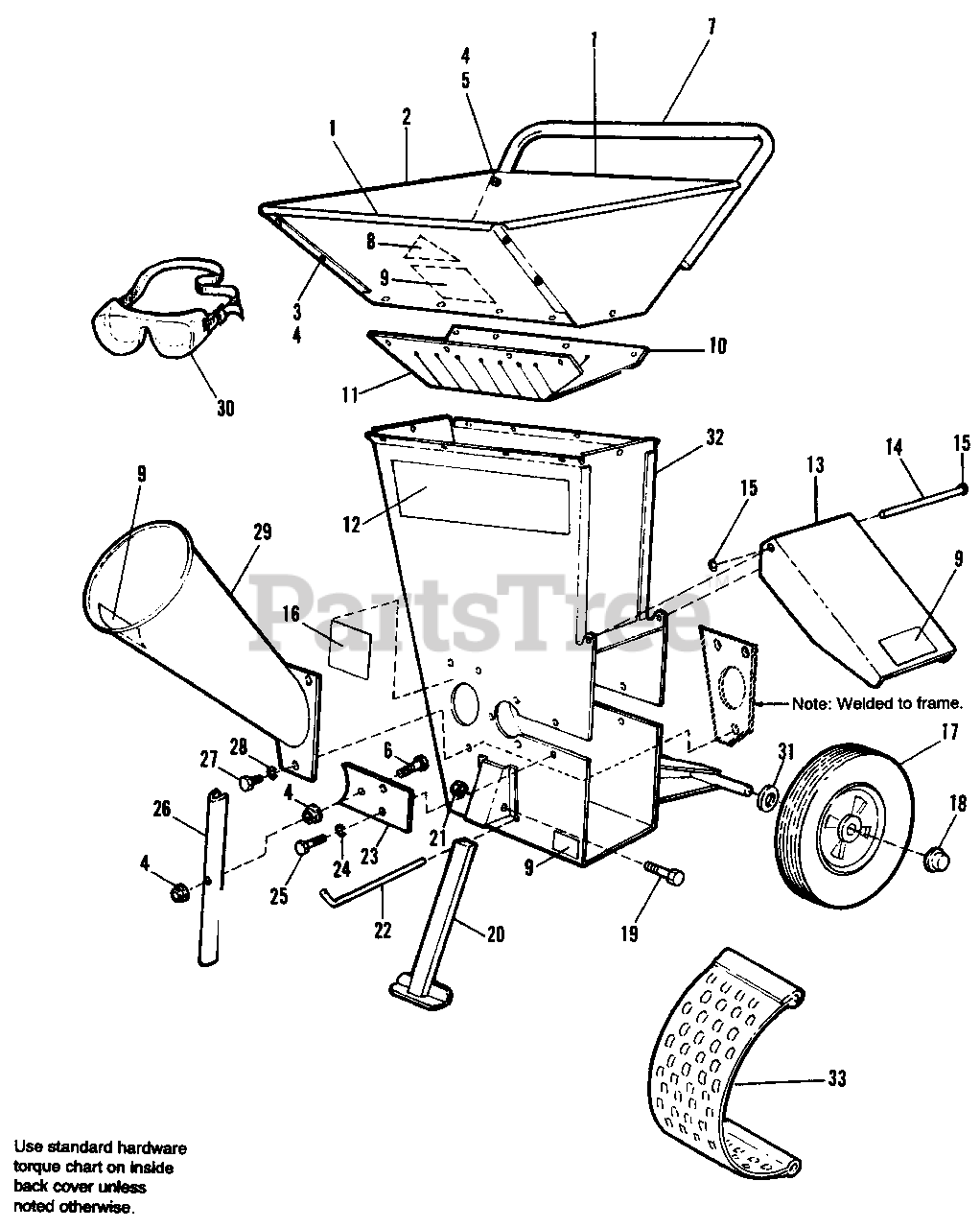

Hopper & Housing Group - Models 5/12 & 8/12 Parts Diagram

  • Title

1

Simplicity 1018612SM

HOPPER END

$

$

Not available

2

Simplicity 1019612SM

HOPPER SIDE

$64.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960472SM

SCREW, Truss Hd., Phillips, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1960294SM

NUT, Hex, Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

5

Simplicity 1922837SM

CAPSCREW, 1/4-20 x 1 1/2
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

6

Simplicity 1729223SM

SCREW, Truss Hd., Phillips, 1/4-20 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1729182SM

HANDLE

$41.99

$

Usually ships in 2-12 days

0

8

DECAL, OPEI

$

$

Not available

9

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

10

Simplicity 1095612SM

GUARD, Lexan, Engine Side

$

$

Not available

11

Simplicity 1096612SM

GUARD, Lexan, Cone Side

$25.99

$

Usually ships in 2-12 days

0

12

Simplicity 1713218

DECAL, 5/12, Simplicity

$

$

Not available

12

Simplicity 1713219

DECAL, 5/12, Baker

$

$

Not available

13

Simplicity 1729195SM

DEFLECTOR, Discharge

$53.99

$

Usually ships in 2-12 days

0

14

Simplicity 1729201SM

DEFLECTOR, Rod

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1960126SM

PUSH NUT, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

16

LABEL (Shipping Only)

$

$

Not available

17

Simplicity 1729179SM

WHEEL & TIRE ASSY.
(Superseded to 1714248SM)

$40.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960520SM

NUT, Push, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1922127SM

CAPSCREW, Hex, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 1729186SM

LEG

$

$

Not available

21

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1729190SM

ROD, Screen

$22.99

$

Usually ships in 2-12 days

0

23

Simplicity 1729189SM

PLATE, Closure

$12.99

$

Usually ships in 2-12 days

0

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1920787SM

CAPSCREW, Hex, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 1729197SM

ROD HOLDER

$

$

Not available

27

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

28

Simplicity 1917356SM

LOCKWASHER, Split, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1069612SM

CONE, Chipper Hopper

$

$

Not available

30

Simplicity 1729013SM

GOGGLES

$

$

Not available

31

Simplicity 1960020SM

WASHER, Plain, 21/32 x 1-1/4 x 1/16

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1729158SM

MAIN FRAME

$

$

Not available

33

Simplicity 1692213

SCREEN, 3/8" Dia. circle openings

Note: Order through Wholegoods.

$

$

Not available

33

Simplicity 1692215

SCREEN, 1-1/2" Dia. circle openings

Note: Order through Wholegoods.

$

$

Not available

33

Simplicity 1692216

SCREEN, Oblong Slot openings

Note: Order through Wholegoods.

$

$

Not available

33

Simplicity 1692214

SCREEN, 3/4" Dia. circle openings

Note: Order through Wholegoods.

$

$

Not available
