8/12 (1692335) - Simplicity Chipper Shredder Engine & Drive Group - Models 5/12 & 8/12 Parts Diagram

Chipper Shredder

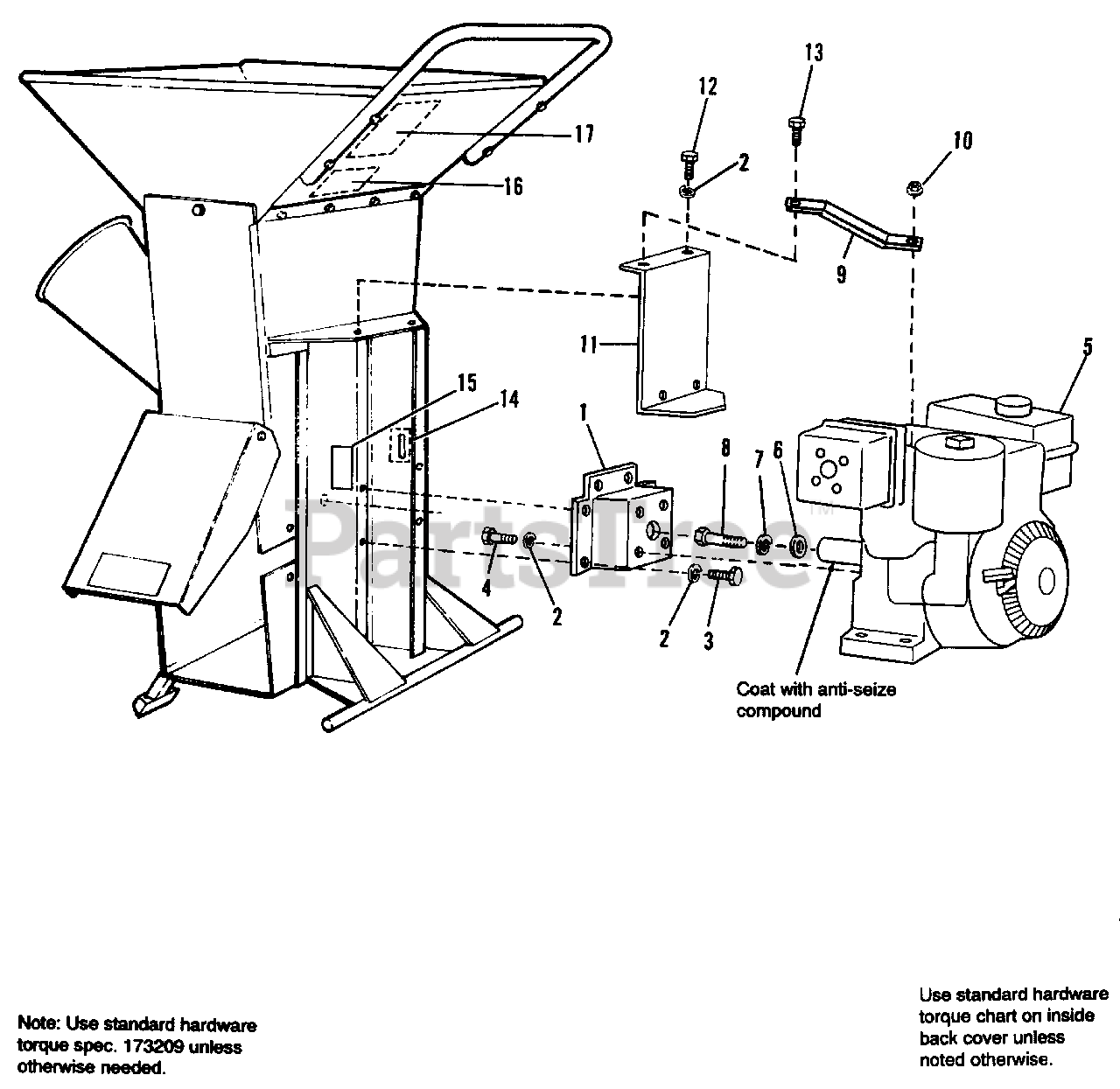

Engine & Drive Group - Models 5/12 & 8/12 Parts Diagram

  • Title

1

Simplicity 1709547SM

SUPPORT & COVER ASSY.

$119.99

$

Usually ships in 2-12 days

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4, Gr.5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

4

Simplicity 1921515SM

CAPSCREW, Hex, 5/16-24 x 3/4, Gr.5

$3.99

$

Usually ships in 2-12 days

0

5

ENGINE, 5 HP, Briggs & Stratton

$

$

Not available

6

Simplicity 1924940SM

WASHER, Plain, 13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

8

Simplicity 1960428SM

CAPSCREW, Hex, 3/8-24 x 1-1/4, Gr. 8
(Superseded to 703165)

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1713491SM

STRAP, Engine Support

$

$

Not available

10

Simplicity 1931277SM

NUT, Hex, Flange Whiz, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1709550SM

COVER

$36.99

$

Usually ships in 2-12 days

0

12

Simplicity 1920787SM

CAPSCREW, Hex, 5/16-18 x 1/2, Gr. 5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1664847SM

SCREW, Taptite, 5/16-24 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

I.D. PLATE

$

$

Not available

15

DECAL, Patent

$

$

Not available

16

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

17

Simplicity 1729208SM

DECAL, Caution/Operate

$

$

Not available
