7T90HW - Cub Cadet 439cc Engine 7T90HW General Assembly Parts Diagram

439cc Engine

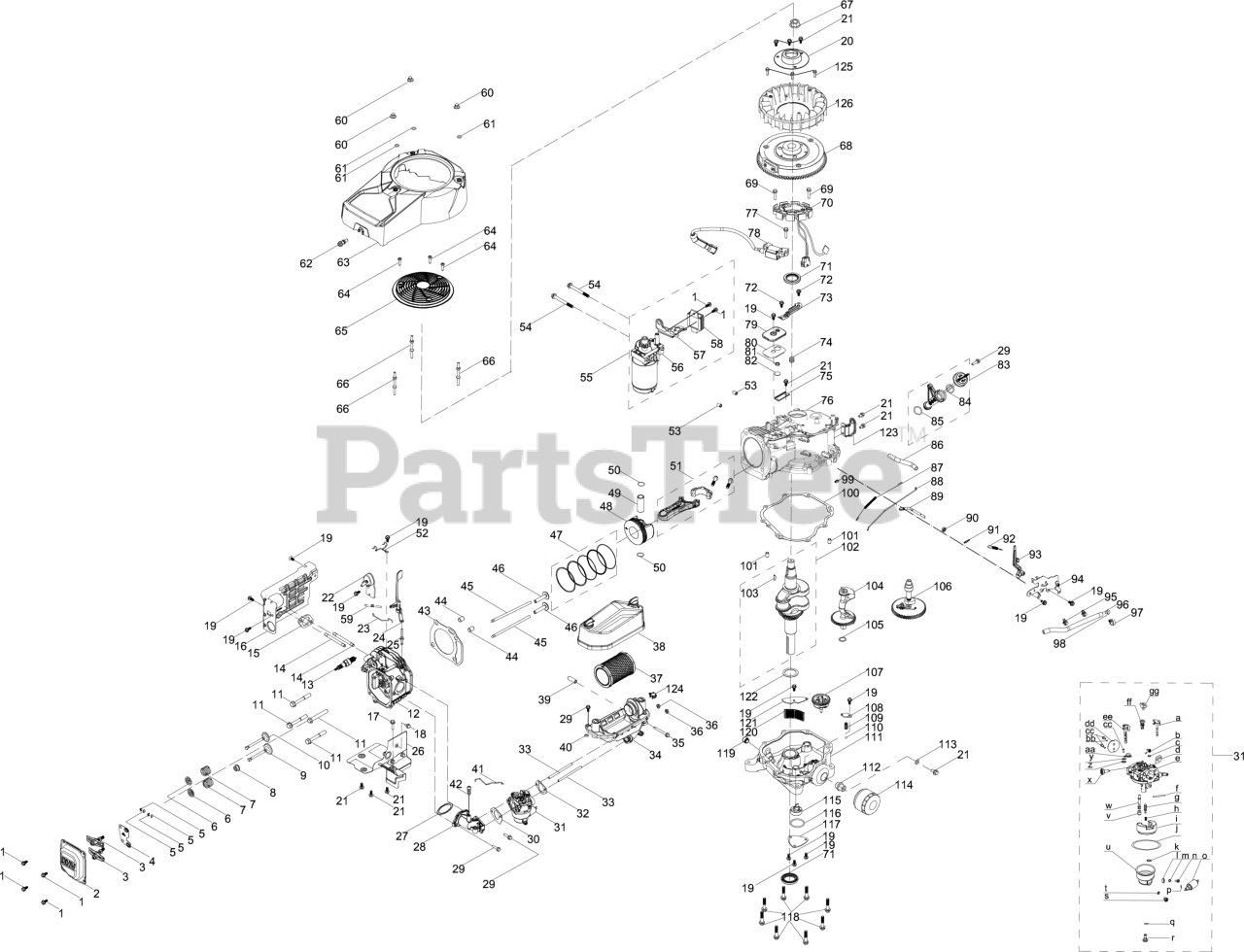

7T90HW General Assembly Parts Diagram

  • Title

1

Cub Cadet 751-20029

BOLT M6x16

$2.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 951-15654

VALVE COVER

$14.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15655

ROCKER ARM ASSEMBLY

$11.99

$

In Stock, Qty 5

0

4

Cub Cadet 951-15656

ROCKER ARM BASE

$5.99

$

In Stock, only 1 left!

0

5

Cub Cadet 951-14912

VALVE CAP
(Superseded to 951-14912A)

$3.49

$

In Stock, only 2 left!

0

6

Cub Cadet 951-14911

VALVE SPRING SEAT

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 951-12078

VALVE SPRING

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 951-11964

INTAKE VALVE SEAL
(Superseded to 951-11964A)

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-15923

INTAKE VALVE

$15.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-15924

EXHAUST VALVE

$27.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-09934

BOLT M10x1.25x70

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 751P17928

CYLINDER HEAD

$107.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 910-06299

STUD

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-15658

EXHAUST GASKET

$7.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-15659

ENGINE SHROUD

$21.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 751-20124

BOLT M6x25

$2.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 751-20112

BOLT M6x10

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-09774

BOLT M6x14

$2.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 751P17986A

FLYWHEEL HUB COVER

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 751-20117

BOLT M6x12

$2.99

$

Usually ships in 3-6 days

0

22

Thermal Switch

$

$

Not available

23

Cub Cadet 951-15708

THERMAL LEVER

$5.99

$

In Stock, only 1 left!

0

24

Cub Cadet 951-15709

AIRVANE CHOKE

$9.99

$

In Stock, only 1 left!

0

25

Cub Cadet 951-14734

PIVOT VANE STUD

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 751P17930A

INSULATOR

$8.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 951-15711

O-RING 36 x 2.5

$5.99

$

In Stock, only 2 left!

0

28

Cub Cadet 951-15715

CHOKE LEVER

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-09816

BOLT M6x22

$2.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 951-14947

INTAKE GASKET

$8.49

$

In Stock, only 1 left!

0

31

Cub Cadet 651P06415

CARBURETOR

$88.99

$

In Stock, only 2 left!

0

32

Cub Cadet 921-04745

AIR FLTER GASKET

$6.99

$

In Stock, only 1 left!

0

33

Stud, M6×87

$

$

Not available

34

Cub Cadet 951-15713

AIR FILTER BASE ASSEMBLY

$26.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-10759

BOLT M6x55

$2.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-20110

NUT M6

$2.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 937-05129

AIR FILTER W/PREFILTER
(Superseded to 937-05129A)

$23.99

$

In Stock, Qty 5

0

38

Cub Cadet 951-05557

AIR FILTER COVER ASSEMBLY

$21.99

$

In Stock, only 3 left!

0

39

Cub Cadet 951-15714

BUSHING - 11X6X30

$4.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 721-04974

CARB FUEL DRAIN GASKET

$0.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-15715

CHOKE LEVER

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-09955

SELF TAPPING SCREW 4.8-0.7x16

$2.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 751P17931

CYLINDER HEAD GASKET

$4.49

$

Usually ships in 3-6 days

0

44

PIN, 12x16

$

$

Not available

45

Cub Cadet 951-15717

PUSH ROD - INDIVIDUAL

$7.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-11962

TAPPET
(Superseded to 951-11962A)

$6.99

$

In Stock, only 1 left!

0

47

Cub Cadet 951-05248

PISTON RING SET

$28.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-14905

PISTON

$55.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 911-06415

PISTON PIN

$10.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 951-11953

PISTON PIN SNAP RING
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 5

0

51

Cub Cadet 951-15775

CONNECTING ROD ASSEMBLY

$39.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-15720

WIRE ROD

$4.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 915-05026

DOWEL PIN

$5.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-09994

HEX FLANGE BOLT M8x80

$2.99

$

Usually ships in 3-6 days

0

55

Electric Starter

$

$

Not available

56

Cub Cadet 951-05549

ELECTRIC STARTER ASSEMBLY
(Superseded to 951-05549A)

$379.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 951-15721

HOOK

$5.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 925-06299

REGULATOR

$39.99

$

In Stock, only 1 left!

0

59

Cub Cadet 951-16206

IDLE SPRING

$5.99

$

In Stock, only 1 left!

0

60

Cub Cadet 712-04276

ACORN NUT
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

61

Cub Cadet 736-05109

WASHER

$6.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-09935

BOLT HOOK

$2.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 751P17929

SHROUD

$9.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 710-09995

SELF TAPPING BOLT 5.5x25

$2.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 751P17966

FLYWHEEL SCREEN

$5.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 751P17967A

STUD M6x9

$2.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 912-05102

NUT M20 x 1.5

$8.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 751P17968

FLYWHEEL

$121.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 710-10176

BOLT M5x28

$3.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-15726

ALTERNATOR

$97.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 937-05134

OIL SEAL - 35X52X7

$7.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 710-09956

HEX FLANGE BOLT M5x10

$3.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-15727

WIRE PLATE

$5.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 750-05314

BUSHING

$3.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-14922

BREATHER SCREEN

$4.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 751P17969

CRANKCASE

$221.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 751-20113

BOLT M6x28

$2.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 994-00136

IGNITION COIL
(Superseded to 994-00136A)

$77.99

$

In Stock, only 2 left!

0

79

Cub Cadet 951-15729

BREATHER COVER

$9.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-15730

BREATHER COVER GASKET

$7.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

82

Cub Cadet 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

83

Cub Cadet 951-15731

DIPSTICK ASSEMBLY
(Superseded to 951-15731A)

$19.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 921-04739

O-RING

$4.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 921-04946

O-RING

$3.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-15732

BREATHER HOSE

$17.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-15733

THROTTLE DAMPENING SPRING

$4.99

$

In Stock, Qty 19

0

88

Cub Cadet 951-15734

THROTTLE LINKAGE

$6.99

$

In Stock, only 4 left!

0

89

Cub Cadet 951-15735

GOVERNOR GEAR SHAFT

$5.99

$

In Stock, only 1 left!

0

90

Cub Cadet 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

91

Cub Cadet 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

92

Cub Cadet 951-15738

GOVERNOR SPRING

$9.99

$

In Stock, only 2 left!

0

93

Cub Cadet 951-15739

GOVERNOR ARM ASSEMBLY

$7.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-15740

CONTROL BRACKET ASSEMBLY

$14.99

$

In Stock, only 1 left!

0

95

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

96

Cub Cadet 993-00171

FUEL HOSE 6.3 x 12.5 x 250

$9.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 723-04071

FUEL LINE SUPPORT CLAMP
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

98

Cub Cadet 951-14091

PLUG

$4.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-15741

CLIP

$3.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 951-15742

CRANKCASE GASKET

$17.99

$

In Stock, only 1 left!

0

101

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

102

Cub Cadet 751P17970

CRANKSHAFT

$132.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

Usually ships in 3-6 days

0

104

Cub Cadet 751P17971

BALANCE SHAFT

$30.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 936-05112

WASHER 17.2 x 26 x 1

$5.49

$

In Stock, only 2 left!

0

106

Cub Cadet 951-15745

CAMSHAFT ASSEMBLY

$57.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-15746

GOVERNOR GEAR

$19.99

$

In Stock, only 1 left!

0

108

Cub Cadet 951-14895

PRESSURE RELEASE COVER

$5.49

$

Usually ships in 3-6 days

0

109

Cub Cadet 932-05290

PRESSURE RELEASE SPRING

$5.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 951-15588

OIL PUMP STEEL BALL

$3.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 951-15747

CRANKCASE COVER

$179.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 751P20788

OIL FILTER ADAPTER

$3.49

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-15748

WASHER - 6.2X1.5X13

$3.49

$

Usually ships in 3-6 days

0

114

Cub Cadet 951-12690

ENGINE OIL FILTER

$17.99

$

In Stock, Qty 20+

0

115

Cub Cadet 951-05247

OIL PUMP ASSEMBLY

$58.99

$

Usually ships in 3-6 days

0

116

Cub Cadet 921-04742

GASKET

$6.99

$

Usually ships in 3-6 days

0

117

Cub Cadet 951-14896

OIL SEPARATOR

$5.49

$

Usually ships in 3-6 days

0

118

Cub Cadet 710-05306

BOLT M8 x 40

$3.99

$

In Stock, Qty 5

0

119

Earth Bolt

$

$

Not available

120

Cub Cadet 937-05069

FILTER SCREEN

$4.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 951-15749

OIL SCREEN PLATE

$4.99

$

Usually ships in 3-6 days

0

122

Cub Cadet 951-15750

WASHER - 35.4X1X52

$3.99

$

Usually ships in 3-6 days

0

123

Cub Cadet 751P17972A

LIFT HOOK

$2.99

$

Usually ships in 3-6 days

0

124

Cub Cadet 751P17987

CLIP

$0.99

$

Usually ships in 3-6 days

0

125

Bolt, M5×18

$

$

Not available

126

Cub Cadet 751P17989

COOLING FAN

$8.49

$

Usually ships in 3-6 days

0

a

Cub Cadet 951-16207

CHOKE SHAFT

$9.49

$

Usually ships in 3-6 days

0

b

Cub Cadet 951-16208

CHOKE RETURN SPRING

$7.99

$

Usually ships in 3-6 days

0

c

Washer

$

$

Not available

d

Choke Plate

$

$

Not available

e

Carburetor Body

$

$

Not available

f

Cub Cadet 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

g

Cub Cadet 751P14036A

NEEDLE VALVE

$5.99

$

Usually ships in 3-6 days

0

h

Cub Cadet 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

i

Float

$

$

Not available

j

Cub Cadet 951-11970

FUEL BOWL GASKET

$6.99

$

In Stock, only 2 left!

0

k

Seal

$

$

Not available

l

Idle Mixture Screw

$

$

Not available

m

Cub Cadet 736-04629

WASHER

$3.99

$

Usually ships in 3-6 days

0

n

Screw, M5×8

$

$

Not available

o

Cub Cadet 951-14972

CARBURETOR SOLENOID VALVE ASM

$45.99

$

In Stock, only 2 left!

0

p

O-Ring, Solenoid Valve Seat

$

$

Not available

q

Cub Cadet 951-12772

SEAT/FUEL BOWL BOLT O-RING

$3.99

$

Usually ships in 3-6 days

0

r

Bolt

$

$

Not available

s

Drain Bolt

$

$

Not available

t

Cub Cadet 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

u

Cub Cadet 751P16210

FUEL BOWL

$6.99

$

Usually ships in 3-6 days

0

v

Main Jet

$

$

Not available

w

Nozzle Tube

$

$

Not available

x

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

y

Cub Cadet 736P05037

FIBER WASHER

$0.99

$

Usually ships in 3-6 days

0

z

Gasket, Throttle Shaft

$

$

Not available

aa

Throttle Shaft Sleeve

$

$

Not available

bb

Cub Cadet 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

cc

Screw, M3×5

$

$

Not available

dd

Throttle Plate

$

$

Not available

ee

Throttle Shaft

$

$

Not available

ff

Idle Jet

$

$

Not available

gg

Idle Jet Rivet

$

$

Not available

Cub Cadet 752Z7T90HW

COMPLETE ENGINE

$

$

Currently unavailable
