7P71RU - Troy-Bilt 159cc Engine Crankcase Parts Diagram

159cc Engine

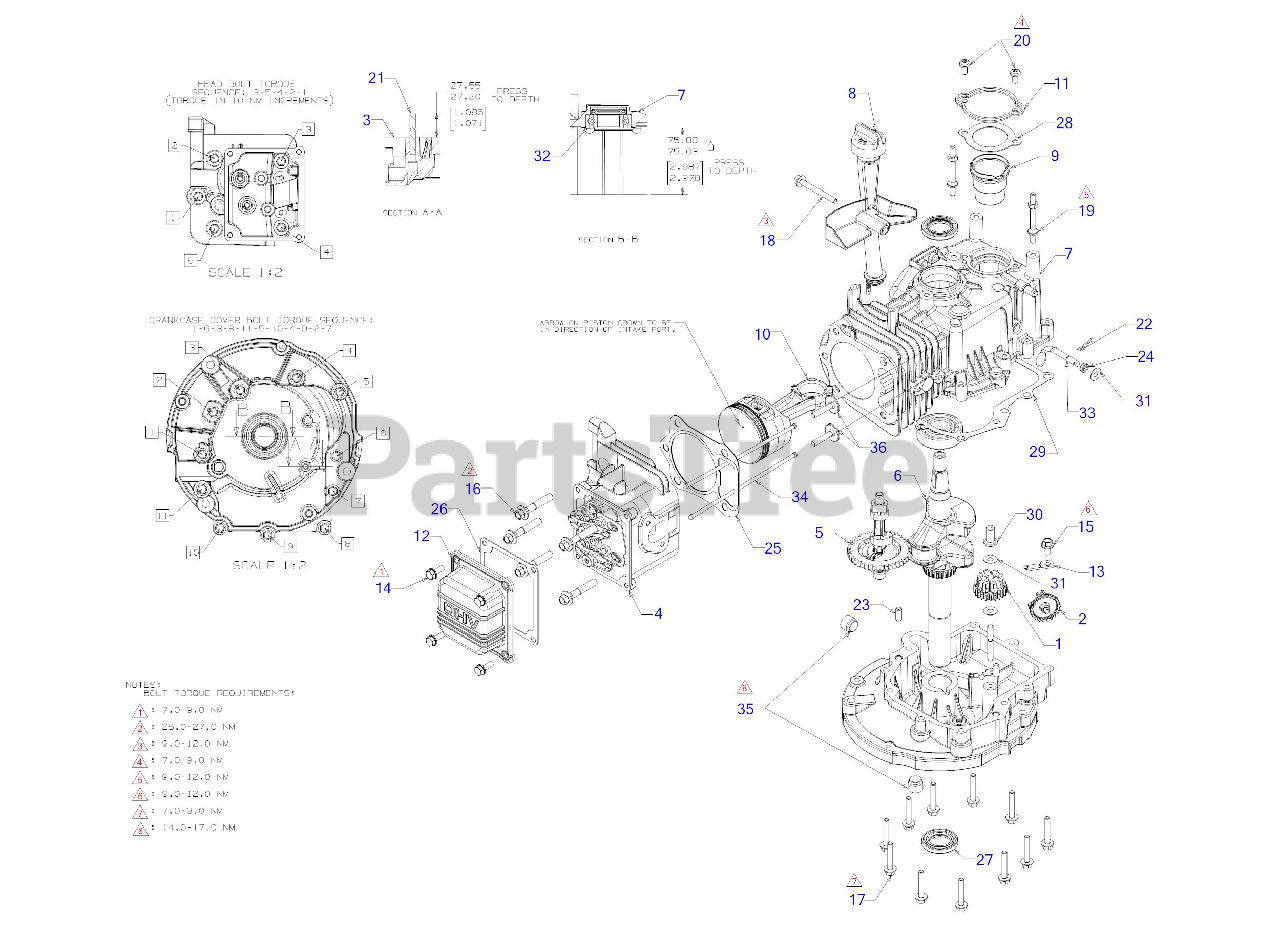

Crankcase Parts Diagram

  • Title

1

Troy-Bilt 917-04093

GEAR ASSEMBLY

$11.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 917-04108

OIL SLINGER GEAR ASSEMBLY

$9.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 919-04287

CRANKCASE COVER

$90.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 919-04296

COMPLETE HEAD ASSEMBLY

$108.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 908-04122

VALVE RETURN SPRING

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 908-04160

ENGINE OHV

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 908-04161

PUSH ROD GUIDE

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04488

SCREW M6-0.75 x 6MM

Note: (Not Shown)

$5.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-05409

STUD M6-0.75 x 25

Note: (Not Shown)

$5.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 712-04323

NUT

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 921-04416

INTAKE VALVE SEAL

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 932-04771

COMPRESSION SPRING

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 919-04300

CAMSHAFT ASSEMBLY

$39.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 919-04336

CRANKSHAFT END

$101.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 714-04094

WOODRUFF KEY 4 x 25
(Superseded to 951-10307)

Note: (Not Shown)

$2.49

$

In Stock, Qty 10

0

7

Troy-Bilt 919-05077

CRANKCASE ASSEMBLY

$238.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 931-04670

ENINE DIPSTICK ASSEMBLY

$14.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 921-04421

O-RING 21ID x 2.8

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 921-04422

O-RING 15.6 ID x 1.78

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 931-05122

BREATHER BODY ASSEMBLY

$21.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 951-04299

PISTON ASSEMBLY

$51.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 919-04328

ENGINE PISTON

Note: (Not Shown)

$34.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 716-04176

WRIST PIN CLIP 15M

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 750-05443

TUBE-14.3 OD x 10.5 ID x 9.75LG

Note: (Not Shown)

$8.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 908-04162

BREATHER COVER

$8.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 908-04163

VALVE COVER

$12.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 908-04182

SUPPORT BRACKET

$5.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-05190

SCREW M6-1 x 12 CL8.8

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-04968

BOLT M6-1 x 16 GR8.8

$6.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 710-05195

SCREW M8-1.25 x 45:CL5.8

$5.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-05198

HHFLG M6-1 x 35 CL8.8

$5.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-05234

SCREW M6-1:50:CL5.

$5.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 710-05240

STUD-M6-1:40 LG

$5.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-05293

SCREW M6-1 x 16

$4.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 911-05431

GOVERNOR SHAFT

$9.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 715-04116

DOWEL PIN

$4.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 921-04410

OIL SEAL 11 x 4 x 5.2

$6.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 921-04413

HEAD GASKET

$11.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 921-04414

VALVE COVER GASKET

$12.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 921-04418

OIL SEAL 41.25 x 23.6 x 6

$6.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 921-04430

BREATHER GASKET

$5.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 921-04433

GASKET

$12.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 931-08086

PUSH CAP

$6.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 736-04527

FLAT WASHER 6.8 x 16 x .4

$5.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 941-3037

PTO SHAFT BALL BEARING

$41.99

$

In Stock, Qty 14

0

33

Troy-Bilt 747-05399

GOVONOR CONTROL ROD

$10.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 750-05444

PUSH ROD TUBE 195

$9.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 951-11644

ENGINE PLUG 3/8

$10.99

$

In Stock, Qty 5

0

36

Troy-Bilt 951-11891

CAM TPT 195

$10.99

$

Usually ships in 3-6 days

0
