797091 - Briggs & Stratton Short Block Assembly SHORT BLOCK Parts Diagram

Short Block Assembly

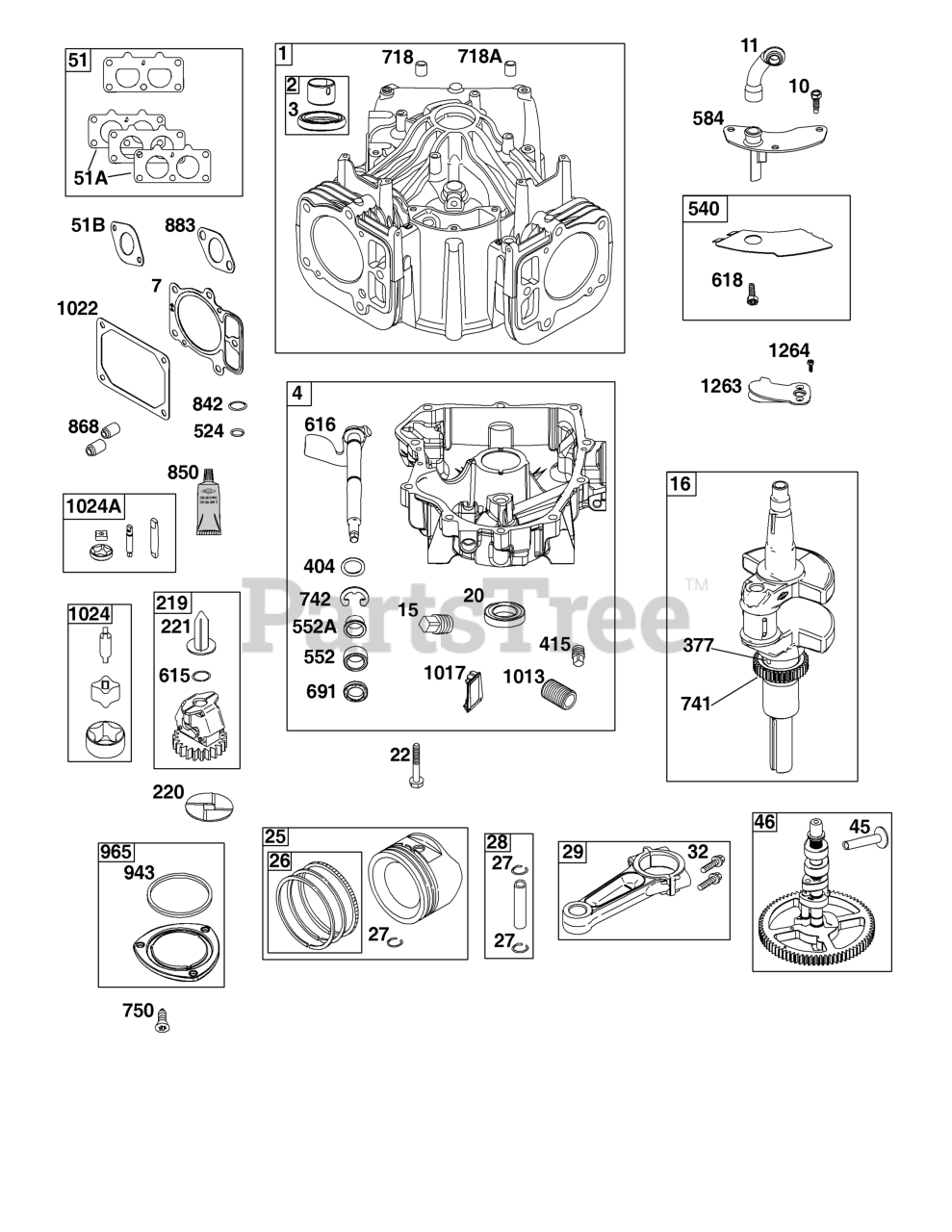

SHORT BLOCK Parts Diagram

  • Title

1

Briggs & Stratton 594970

CYLINDER ASSEMBLY

$398.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 797673

KIT, Bushing/Seal

Note: (Magneto Side)

$18.99

$

In Stock, Qty 7

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 594974

SUMP, Engine

$268.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 693997

GASKET, Cylinder Head

$24.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 594163

TUBE, Breather

$7.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 597790

CRANKSHAFT

$322.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 792023

PISTON ASSEMBLY

$159.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 792072

PISTON ASSEMBLY

Note: (.020" Oversize)

$172.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792026

SET, Ring

$45.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792073

SET, Ring

Note: (.020" Oversize)

$61.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 593650

PIN, Piston

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 796209

ROD, Connecting
(Superseded to 84007297)

$18.99

$

In Stock, Qty 20+

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 17

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 797242

CAMSHAFT

$122.99

$

In Stock, Qty 15

0

51

Briggs & Stratton 795123

GASKET, Intake

$4.99

$

In Stock, Qty 8

0

51A

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51B

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

219

Briggs & Stratton 793338

GEAR, Governor

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 799772

WASHER

Note: (Governor Gear)

$6.49

$

In Stock, Qty 20+

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

377

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 7

0

404

Briggs & Stratton 690442

WASHER

Note: (Governor Crank)

$3.49

$

In Stock, Qty 5

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691032

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

Usually ships in 2-12 days

0

540

Briggs & Stratton 594325

PLATE, Baffle

$7.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 796638

BUSHING, Governor Crank

$6.99

$

In Stock, Qty 9

0

552A

Briggs & Stratton 690553

BUSHING, Governor Crank

$7.49

$

In Stock, Qty 9

0

584

Briggs & Stratton 594164

COVER, Breather Passage

$9.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 698290

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 9

0

616

Briggs & Stratton 691045

CRANK, Governor

$19.99

$

In Stock, only 1 left!

0

618

Briggs & Stratton 594326

SCREW

$5.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 20+

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 594988

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 690980

GEAR, Timing

$14.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 690328

RETAINER, E Ring

$4.49

$

In Stock, Qty 6

0

750

Briggs & Stratton 796208

SCREW

Note: (Oil Pump Cover)

$3.99

$

In Stock, only 3 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 19

0

943

Briggs & Stratton 796222

SEAL, O-Ring

Note: (Oil Pump Cover)

$6.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 796221

COVER, Oil Pump

$10.99

$

In Stock, only 1 left!

0

1013

Briggs & Stratton 690954

NIPPLE, Oil Filter

$7.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 796214

SCREEN, Oil Pump

$10.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 690971

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1024

Briggs & Stratton 796220

PUMP, Oil

$31.99

$

In Stock, only 2 left!

0

1024A

Briggs & Stratton 794644

SHAFT, Pump

$35.99

$

In Stock, only 1 left!

0

1263

Briggs & Stratton 594166

REED, Breather

$9.49

$

Usually ships in 2-12 days

0

1264

Briggs & Stratton 594165

SCREW

Note: (Breather Reed)

$3.49

$

Usually ships in 2-12 days

0
