796139 - Gravely ST Series 60" Snow Plow ST Snow Plow Mount Parts Diagram

ST Series 60" Snow Plow

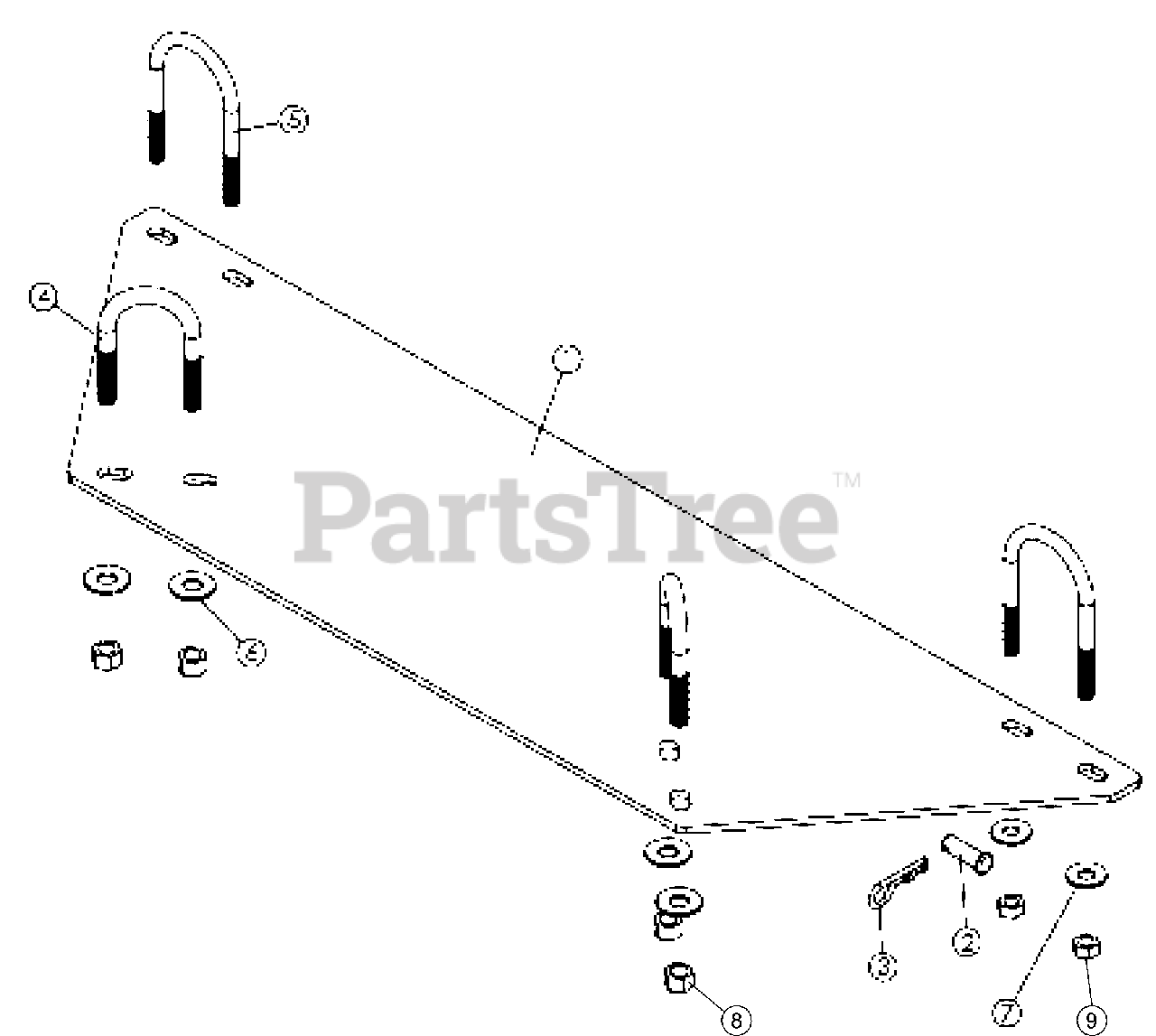

ST Snow Plow Mount Parts Diagram

  • Title
1

CYC4610

BLADE MOUNT (ST Models)

Note: (ST Models)

$

$

Not available

2

PUR1209

3/8 CLEVIS PIN

$

$

Not available

3

Gravely 06712900

PIN HAIR, No. 7 Clip
(Superseded to 06700215)

$5.99

$

In Stock, Qty 10

0

4

PUR1415

3/8 x 1-1/2 x 2-1/2 U-BOLT

$

$

Not available

5

PUR1435

5/16 x 2 x 3 U-BOLT

$

$

Not available

6

Gravely 06436200

13/32 x 13/16 FLAT WASHER
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06437200

11/32 x 11/16 FLAT WASHER
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06535800

3/8-16 NYLON LOCK NUT
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06530200

5/16-18 NYLON LOCK NUT
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
