79589 - Toro 52" GrandStand Stand-On Mower (SN: 314000001 - 314999999) (2014) CARBON CANISTER ASSEMBLY Parts Diagram

52" GrandStand Stand-On Mower

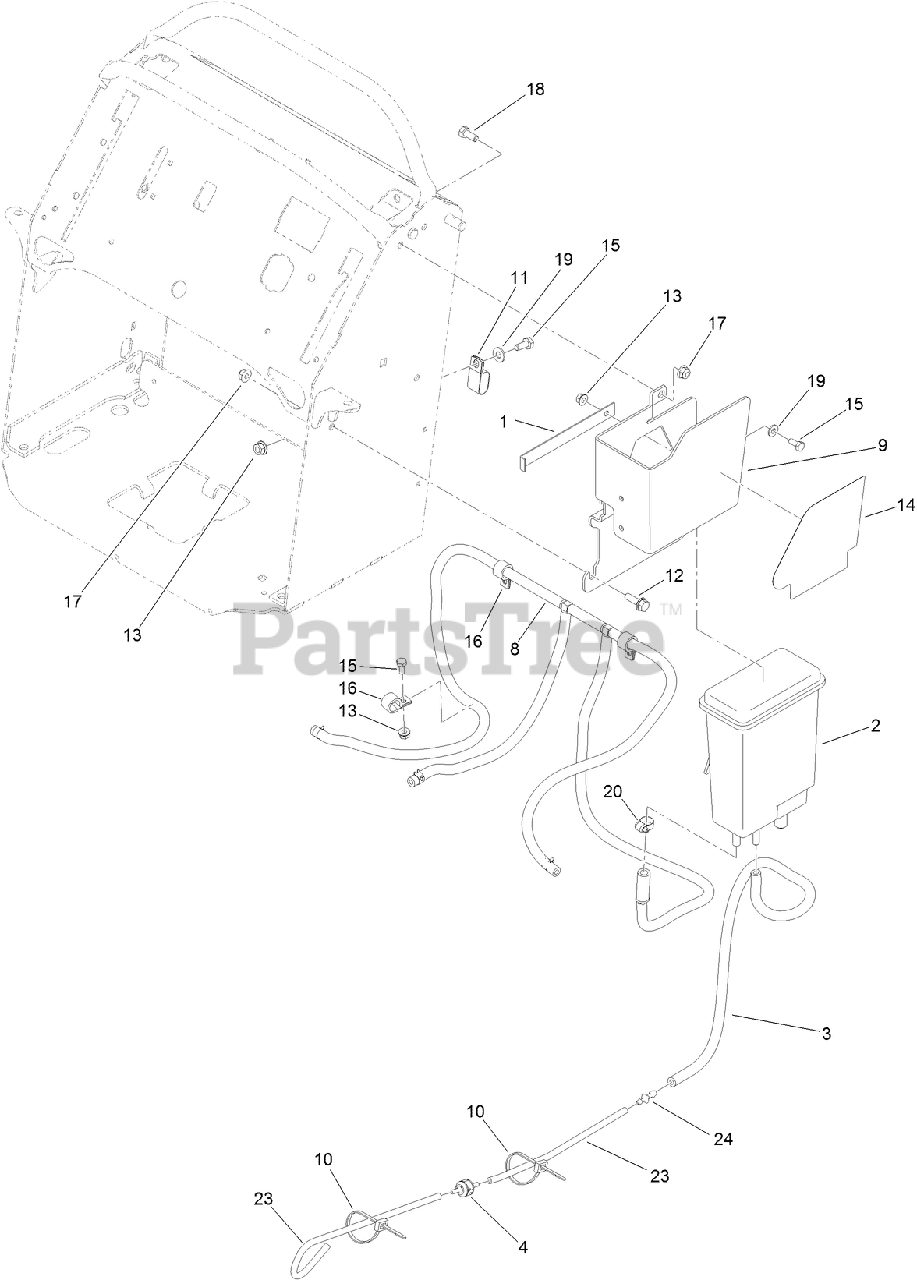

CARBON CANISTER ASSEMBLY Parts Diagram

  • Title

1

Toro 120-8307-01

PLATE-LOC

$23.99

$

Usually ships in 3-6 days

0

2

Toro 117-9795

CANISTER-CARBON, 1200CC

$158.99

$

Usually ships in 3-6 days

0

3

Toro 109-3491

HOSE-FUEL

$25.99

$

Usually ships in 3-6 days

0

4

Toro 115-7868

VALVE-CHECK, VACUUM
(Superseded to 133-8499)

$15.99

$

In Stock, only 3 left!

0

8

VENT HOSE ASM

Note: Not serviced separately

$

$

Not available

9

Toro 119-7385-01

PLATE- ADAPTER

$145.99

$

Usually ships in 3-6 days

0

10

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

11

Toro 2412-105

CLAMP-TUBE, DOUBLE

$2.49

$

Usually ships in 3-6 days

0

12

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

13

Toro 32128-32

NUT-HHF

$2.99

$

Usually ships in 3-6 days

0

14

Toro 121-5972

DECAL-SERVICE/SPARK ARREST

$18.99

$

Usually ships in 3-6 days

0

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

23

Toro 119-4235

HOSE-VENT, FORMED

$5.49

$

Usually ships in 3-6 days

0

24

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0
