79589 - Toro 52" GrandStand Stand-On Mower (SN: 313000001 - 313001000) (2013) FUEL TANK ASSEMBLY Parts Diagram

52" GrandStand Stand-On Mower

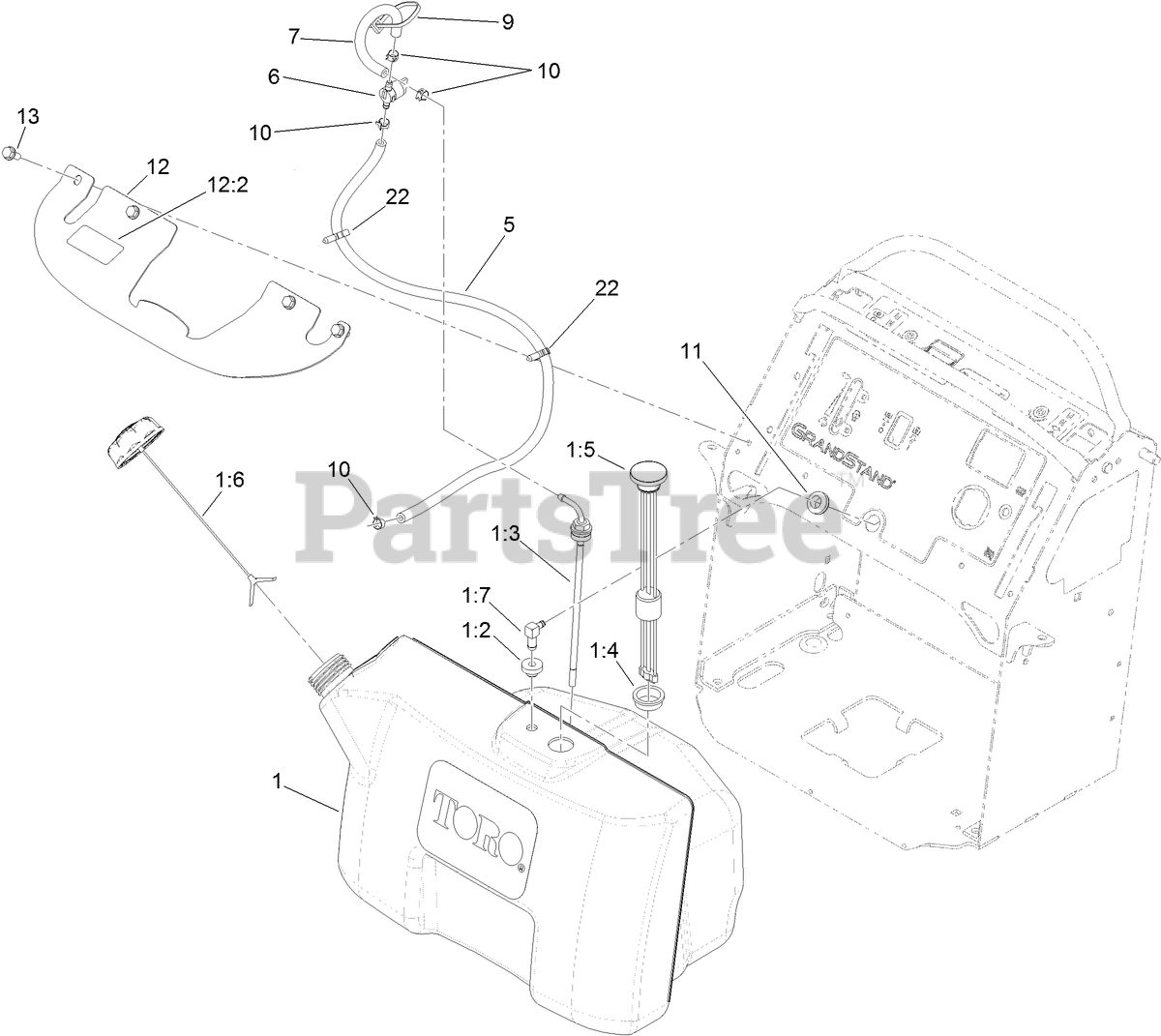

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-7340

TANK ASM

$506.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 17

0

1:3

Toro 1-643172

ELBOW-90 DEG

$11.99

$

In Stock, only 2 left!

0

1:4

Toro 95-8972

GROMMET

$11.99

$

In Stock, only 1 left!

0

1:5

Toro 117-9719

GUAGE-FUEL

$175.99

$

Usually ships in 3-6 days

0

1:6

Toro 116-1704

CAP-FUEL, RATCHETING
(Superseded to 126-1789)

$37.99

$

In Stock, only 1 left!

0

1:7

Toro 116-3408

FITTING-FUEL, BULKHEAD

$45.99

$

Usually ships in 3-6 days

0

5

Toro 109-0273

HOSE-FUEL

$22.99

$

Usually ships in 3-6 days

0

6

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

7

Toro 109-0297

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

12

Toro 120-6462

BRACKET-TANK

$76.99

$

Usually ships in 3-6 days

0

12:2

Toro 116-3290

DECAL-FILL, FUEL

$3.49

$

In Stock, only 1 left!

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0
