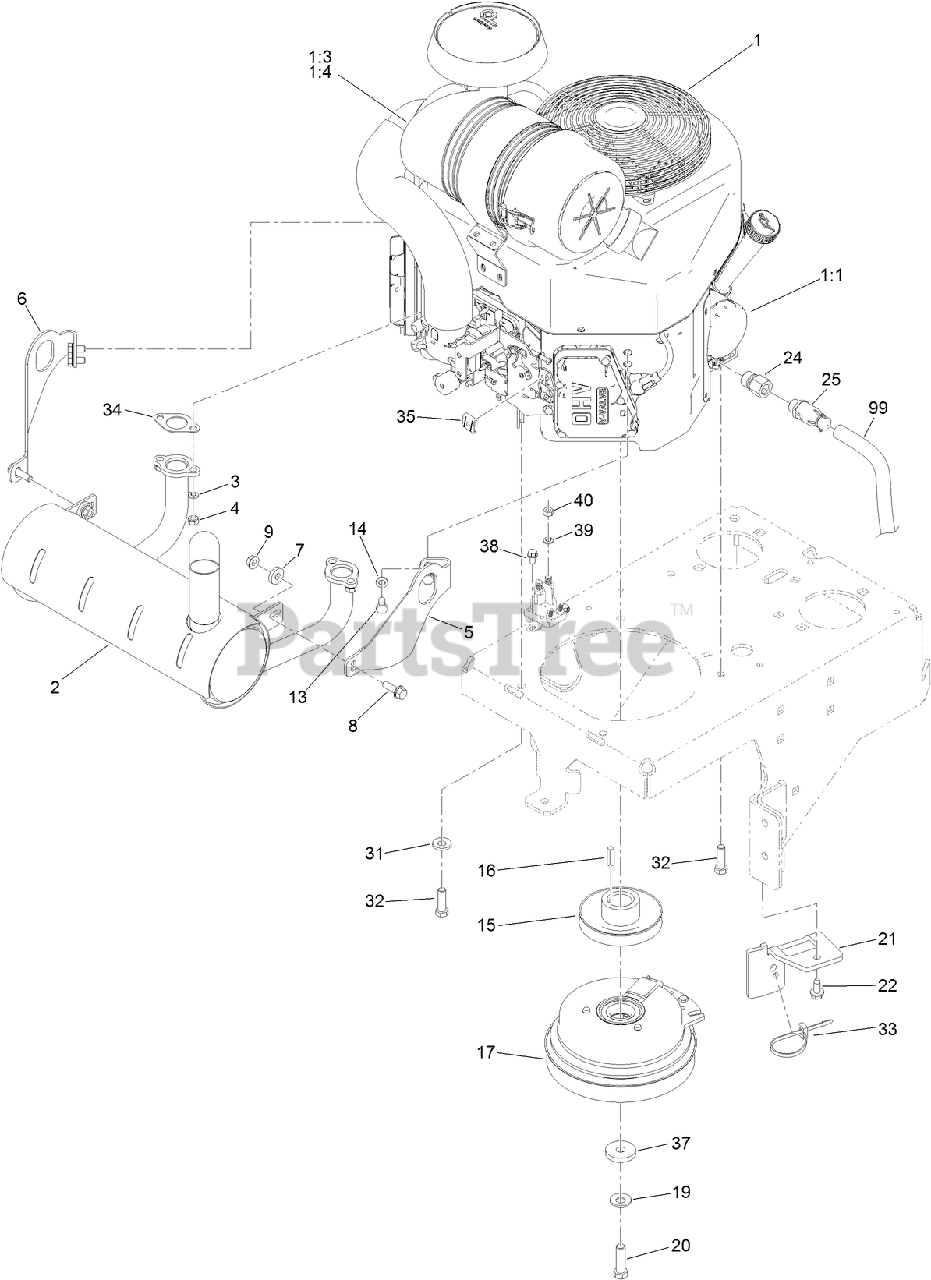

79575 - Toro 52" GrandStand Stand-On Mower (SN: 315000001 - 315999999) (2015) ENGINE ASSEMBLY Parts Diagram

52" GrandStand Stand-On Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FX691V

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FX691V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Toro 119-5852

FILTER-OIL
(Superseded to 49065-0721)

$18.99

$

In Stock, Qty 20+

0

1:3

Toro 119-5944

ELEMENT-FILTER, AIR (OUTER)

$47.99

$

Usually ships in 3-6 days

0

1:4

Toro 119-5945

ELEMENT-FILTER, AIR (INNER)

$53.99

$

In Stock, only 2 left!

0

1:2

Toro 92-2153

SPARK PLUG

Note: Not illustrated

$4.99

$

In Stock, Qty 7

0

1:5

Toro 125-6445

FILTER-FUEL

Note: Not illustrated

$

$

Currently unavailable

2

Toro 125-4698

MUFFLER
(Superseded to 131-1184)

$259.99

$

Usually ships in 3-6 days

0

3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

4

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 6

0

5

Toro 127-1901

BRACKET-MUFFLER, LH

$29.99

$

Usually ships in 3-6 days

0

6

Toro 127-1902

BRACKET-MUFFLER, RH

$29.99

$

Usually ships in 3-6 days

0

7

Toro 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

8

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

9

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

13

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 116-3882

PULLEY

$118.99

$

Usually ships in 3-6 days

0

16

Toro 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

17

Toro 131-3522

CLUTCH-200CMS

$803.99

$

Usually ships in 3-6 days

0

19

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

20

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

21

Toro 116-3811-01

BRACKET-ANCHOR, CLUTCH

$38.99

$

Usually ships in 3-6 days

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

25

Toro 120-4321

VALVE-DRAIN, OIL

$19.99

$

In Stock, only 1 left!

0

31

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

32

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

34

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

35

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

37

Toro 107-4136

WASHER

$6.49

$

In Stock, only 1 left!

0

38

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

39

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0
