79574 - Toro 48" GrandStand Stand-On Mower (SN: 315000001 - 315999999) (2015) ENGINE ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

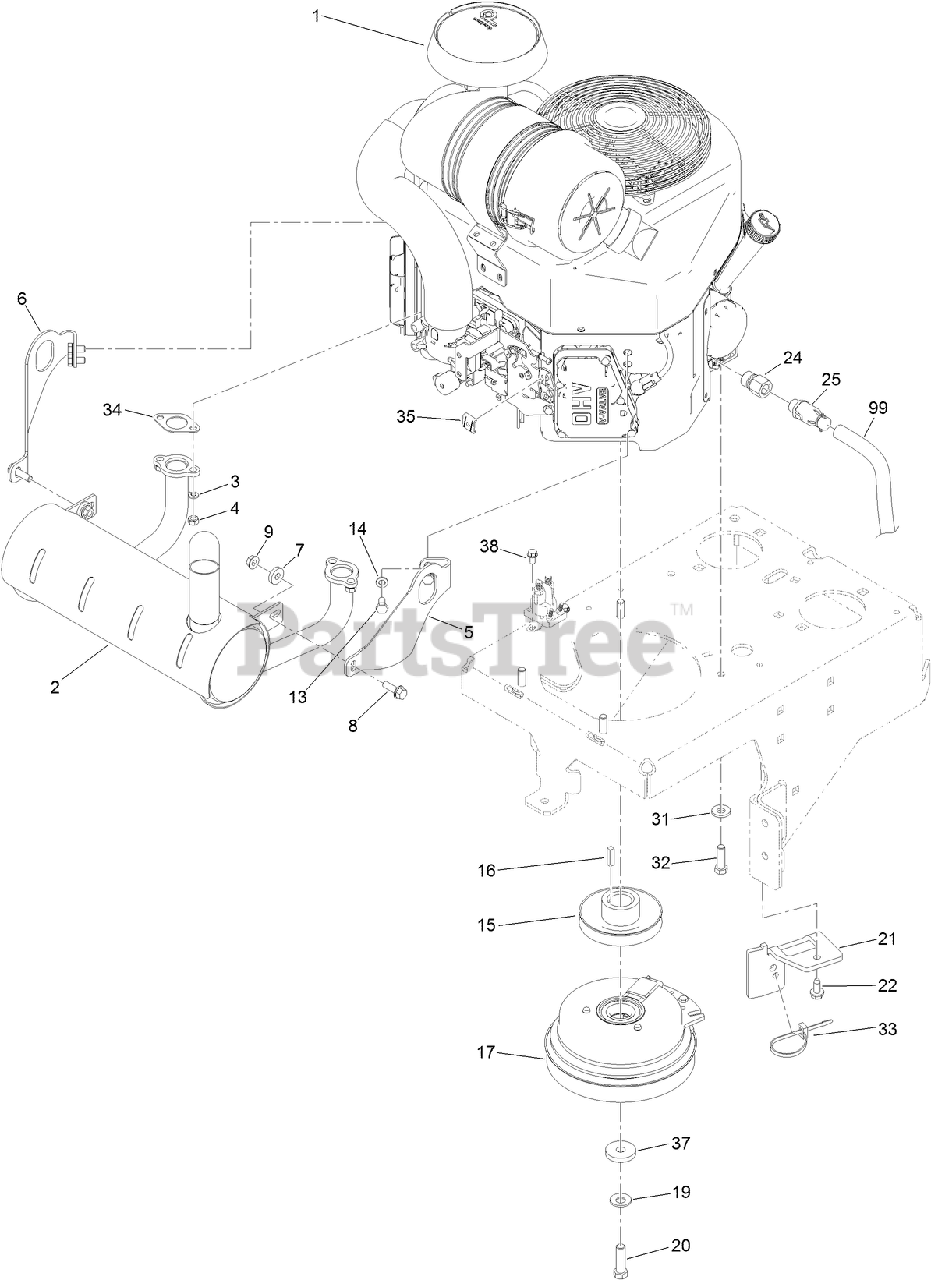

ENGINE ASSEMBLY Parts Diagram

  • Title
1

ENGINE, KAWASAKI FX691V

Note: Not serviced separately

$

$

Not available

1

ENGINE, KAWASAKI FX691V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 125-4698

MUFFLER
(Superseded to 131-1184)

$259.99

$

Usually ships in 3-6 days

0

3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

$1.99

$

In Stock, Qty 20+

0

5

Toro 127-1901

BRACKET-MUFFLER, LH

$29.99

$

Usually ships in 3-6 days

0

6

Toro 127-1902

BRACKET-MUFFLER, RH

$29.99

$

Usually ships in 3-6 days

0

7

Toro 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

8

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

9

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

13

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 116-3882

PULLEY

$118.99

$

Usually ships in 3-6 days

0

16

$2.99

$

In Stock, only 2 left!

0

17

Toro 131-3522

CLUTCH-200CMS

$803.99

$

Usually ships in 3-6 days

0

19

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

20

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

21

Toro 116-3811-01

BRACKET-ANCHOR, CLUTCH

$38.99

$

Usually ships in 3-6 days

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

25

Toro 120-4321

VALVE-DRAIN, OIL

$19.99

$

In Stock, only 1 left!

0

31

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

32

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

34

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

35

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

37

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 5

0

38

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0
