79559 - Toro 52" GrandStand Stand-On Mower (SN: 290005001 - 290999999) (2009) 52 INCH DECK ASSEMBLY Parts Diagram

52" GrandStand Stand-On Mower

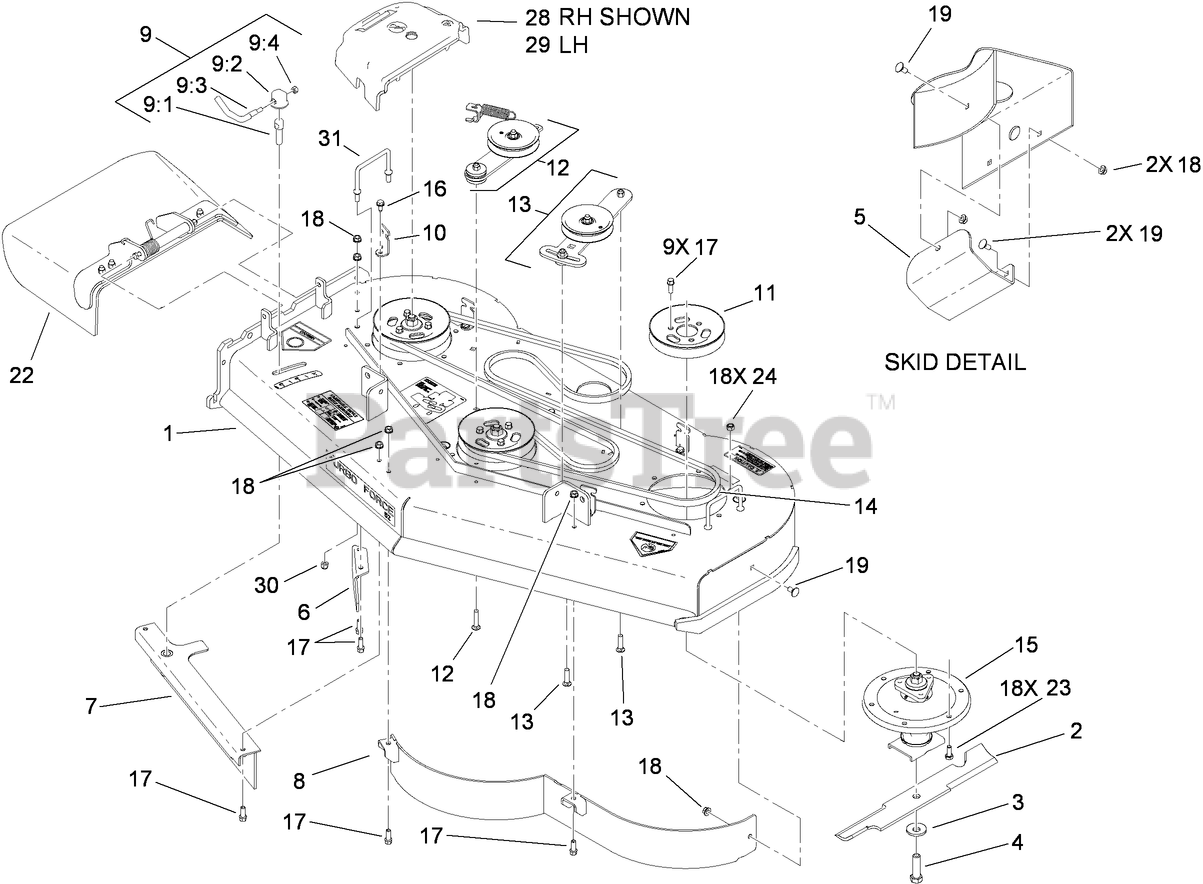

52 INCH DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 117-5754

DECK ASM

$2631.99

$

Usually ships in 3-6 days

0

2

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 16

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 19

0

4

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 19

0

$82.99

$

Usually ships in 3-6 days

0

6

Toro 106-3216-01

BAFFLE-DISCHARGE

$23.99

$

Usually ships in 3-6 days

0

7

$216.99

$

Usually ships in 3-6 days

0

8

Toro 114-1979-01

BAFFLE-52 INCH

$263.99

$

Usually ships in 3-6 days

0

9

Toro 107-1664

LEVER ASM

$72.99

$

Usually ships in 3-6 days

0

9:1

Toro 106-3239

Screw-Lock

$52.99

$

Usually ships in 3-6 days

0

9:2

Toro 107-1644

CAP-LOCK

$18.99

$

In Stock, only 2 left!

0

9:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$72.99

$

Usually ships in 3-6 days

0

9:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 117-5758-03

BRACKET-COVER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 105-7735

Pulley

$45.99

$

In Stock, Qty 5

0

12

Toro 117-0445

SPRING IDLER ASM

$188.99

$

Usually ships in 3-6 days

0

13

Toro 117-0446

IDLER ADJUST ASM

$188.99

$

In Stock, only 1 left!

0

14

Toro 114-0454

BELT-V

$79.99

$

In Stock, only 1 left!

0

15

Toro 107-8504

SPINDLE ASM

$410.99

$

In Stock, only 3 left!

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 114-1910

DEFLECTOR ASM

$263.99

$

Usually ships in 3-6 days

0

23

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

24

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

28

Toro 109-6935

COVER-BELT, RH

$37.99

$

In Stock, only 1 left!

0

29

Toro 109-6936

COVER-BELT, LH

$37.99

$

In Stock, only 1 left!

0

30

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0
