79558 - Toro 48" GrandStand Stand-On Mower (SN: 290000001 - 290003000) (2009) HYDRAULIC ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

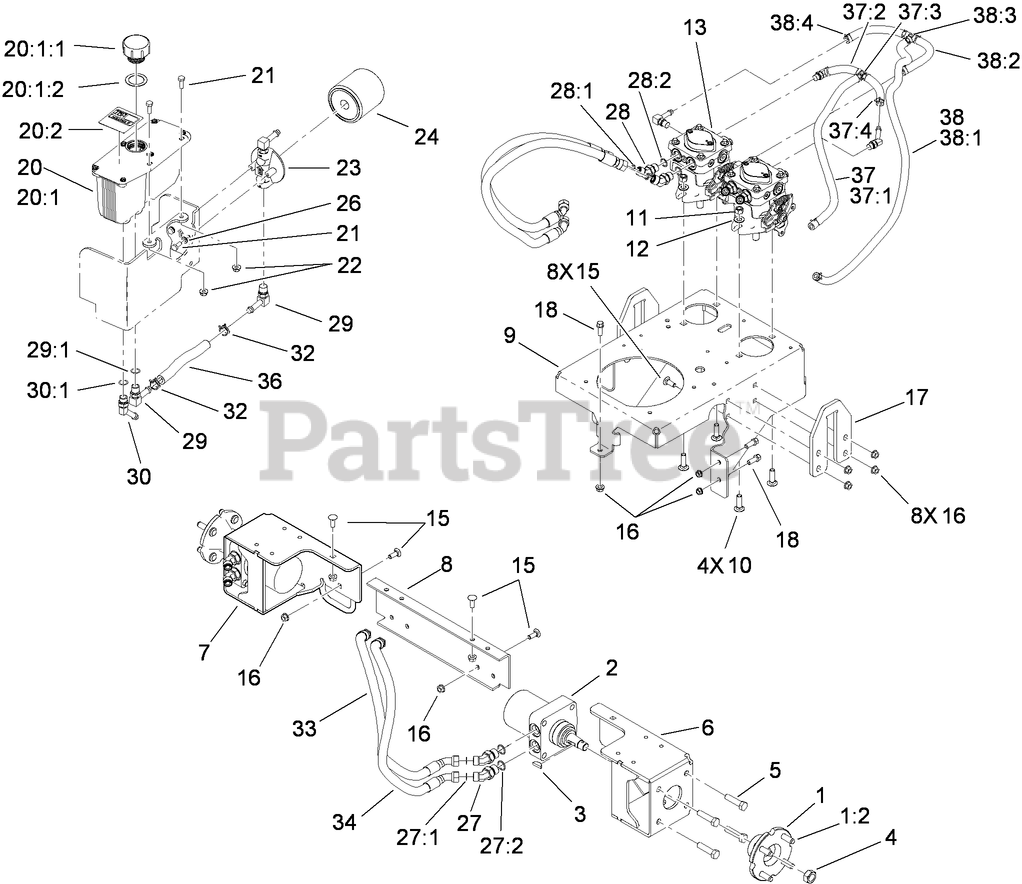

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

1:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

2

Toro 114-0549

HYD MOTOR ASM

$1381.99

$

In Stock, only 1 left!

0

3

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

4

Toro 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

5

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 16

0

6

Toro 117-3572-01

LH MOTOR MOUNT ASM
(Superseded to 117-3605-01)

$

$

Not available

7

Toro 117-3571-01

RH MOTOR MOUNT ASM
(Superseded to 117-3607-01)

$274.99

$

Usually ships in 3-6 days

0

8

Toro 114-5168-01

MOUNT-MOTOR, CENTER
(Superseded to 119-7224-01)

$101.99

$

Usually ships in 3-6 days

0

9

Toro 114-5166-01

BASE-ENGINE
(Superseded to 119-8710-01)

$

$

Not available

10

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

11

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 117-3597

HYD PUMP ASM

$1361.99

$

Usually ships in 3-6 days

0

15

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

17

Toro 114-5345-01

PLATE-LIFT
(Superseded to 119-8662)

$50.99

$

Usually ships in 3-6 days

0

18

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

20

Toro 107-8433

HYD RESERVOIR ASM

$384.99

$

Usually ships in 3-6 days

0

20:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

20:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$32.99

$

In Stock, Qty 6

0

20:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

20:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

23

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

24

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 16

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 340-89

FITTING-HYD, 45 DEG

$44.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

27:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

28

Toro 340-101

FITTING-HYD, 45 DEG

$38.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

28:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 1 left!

0

29

Toro 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

29:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

30

Toro 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

32

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

33

Toro 117-0442

HYD HOSE ASM
(Superseded to 120-6491)

$181.99

$

In Stock, only 1 left!

0

34

Toro 117-0449

HYD HOSE ASM
(Superseded to 120-6492)

$181.99

$

Usually ships in 3-6 days

0

36

Toro 117-0459

HOSE-HYDRAULIC

$8.49

$

Usually ships in 3-6 days

0

37

Toro 117-3569

FILTER HOSE ASM

$

$

Not available

37:1

Toro 117-0460

HOSE-HYDRAULIC

$

$

Not available

37:2

Toro 117-0458

HOSE-HYDRAULIC

$

$

Not available

37:3

Toro 1-603721

FITTING-TEE, HOSE

$28.99

$

Usually ships in 3-6 days

0

37:4

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

38

Toro 117-3570

TANK HOSE ASM

$

$

Not available

38:1

Toro 117-0461

HOSE-HYDRAULIC

$51.99

$

Usually ships in 3-6 days

0

38:2

Toro 117-0459

HOSE-HYDRAULIC

$8.49

$

Usually ships in 3-6 days

0

38:3

Toro 1-603721

FITTING-TEE, HOSE

$28.99

$

Usually ships in 3-6 days

0

38:4

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0
