79551 - Toro 60" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) DECK ASSEMBLY Parts Diagram

60" GrandStand Stand-On Mower

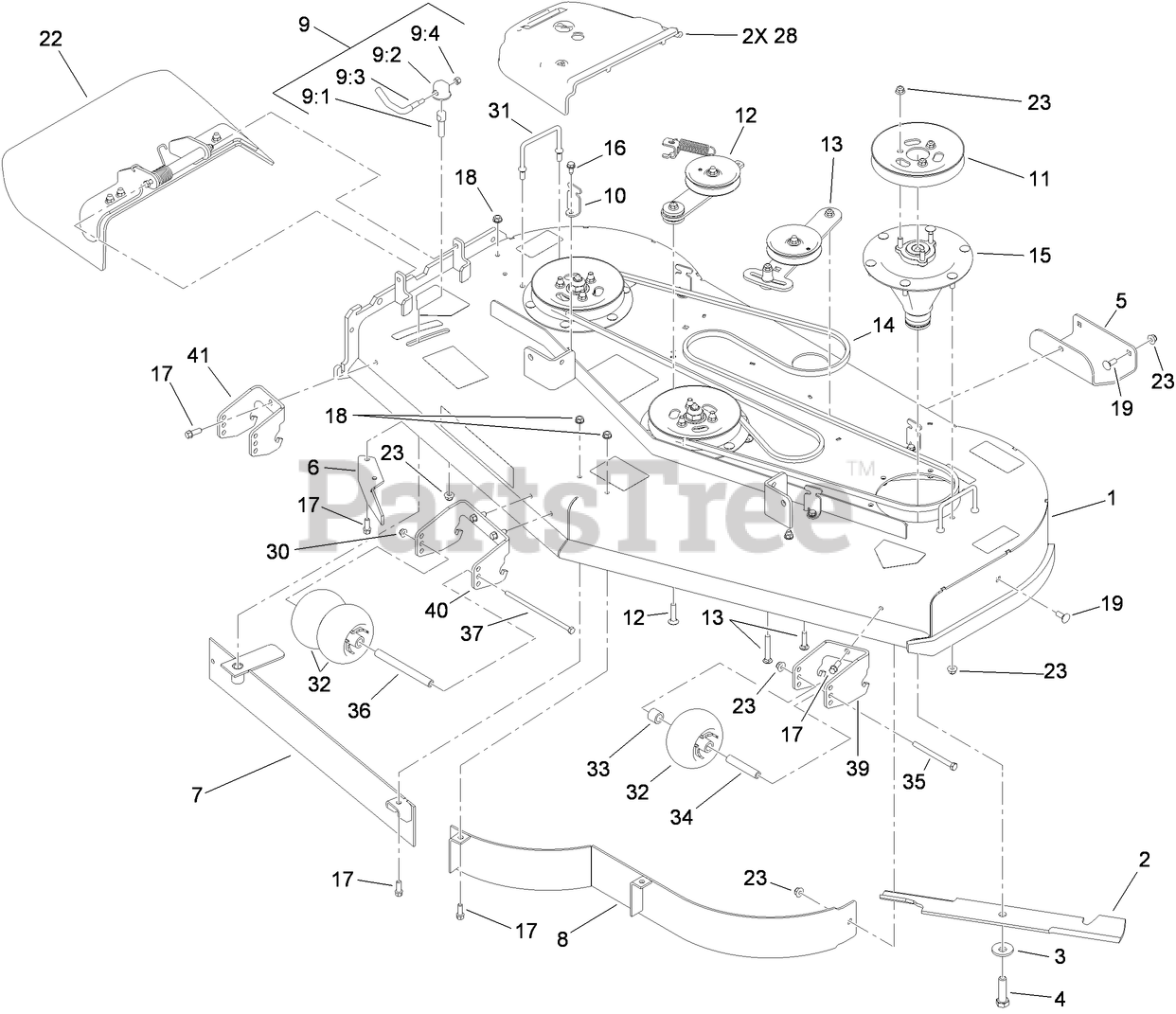

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 117-0501

DECK ASM

$

$

Not available

2

Toro 105-7718-03

BLADE-HI FLOW

$25.99

$

In Stock, Qty 9

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

4

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

5

Toro 114-1908-01

SKID

$84.99

$

Usually ships in 3-6 days

0

6

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

7

Toro 117-9604-01

BAFFLE ASM

$179.99

$

Usually ships in 3-6 days

0

8

Toro 117-9701-01

BAFFLE ASM

$173.99

$

Usually ships in 3-6 days

0

9

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

9:1

Toro 106-3239

Screw-Lock

$52.99

$

Usually ships in 3-6 days

0

9:2

Toro 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

9:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

9:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 117-5758-03

BRACKET-COVER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 105-7734

Pulley

$49.99

$

In Stock, Qty 9

0

12

Toro 117-0445

SPRING IDLER ASM

$213.99

$

Usually ships in 3-6 days

0

13

Toro 117-9791

IDLER ADJUST ASM

$210.99

$

Usually ships in 3-6 days

0

14

Toro 117-9607

BELT-V

$174.99

$

Usually ships in 3-6 days

0

15

Toro 117-6158

SPINDLE ASM
(Superseded to 119-8560)

$581.99

$

In Stock, Qty 11

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

22

Toro 114-1910

DEFLECTOR ASM

$271.99

$

Usually ships in 3-6 days

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

32

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

33

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

34

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

35

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

36

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

37

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

39

Toro 114-5204-01

BRACKET-WHEEL, LH

$71.99

$

In Stock, only 3 left!

0

40

Toro 114-5208-01

BRACKET-WHEEL, CENTER

$71.99

$

Usually ships in 3-6 days

0

41

Toro 114-5213-01

BRACKET-WHEEL, RH

$71.99

$

In Stock, only 3 left!

0
