79548 - Toro 48" GrandStand Stand-On Mower (SN: 313001001 - 313999999) (2013) GROUND DRIVE ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

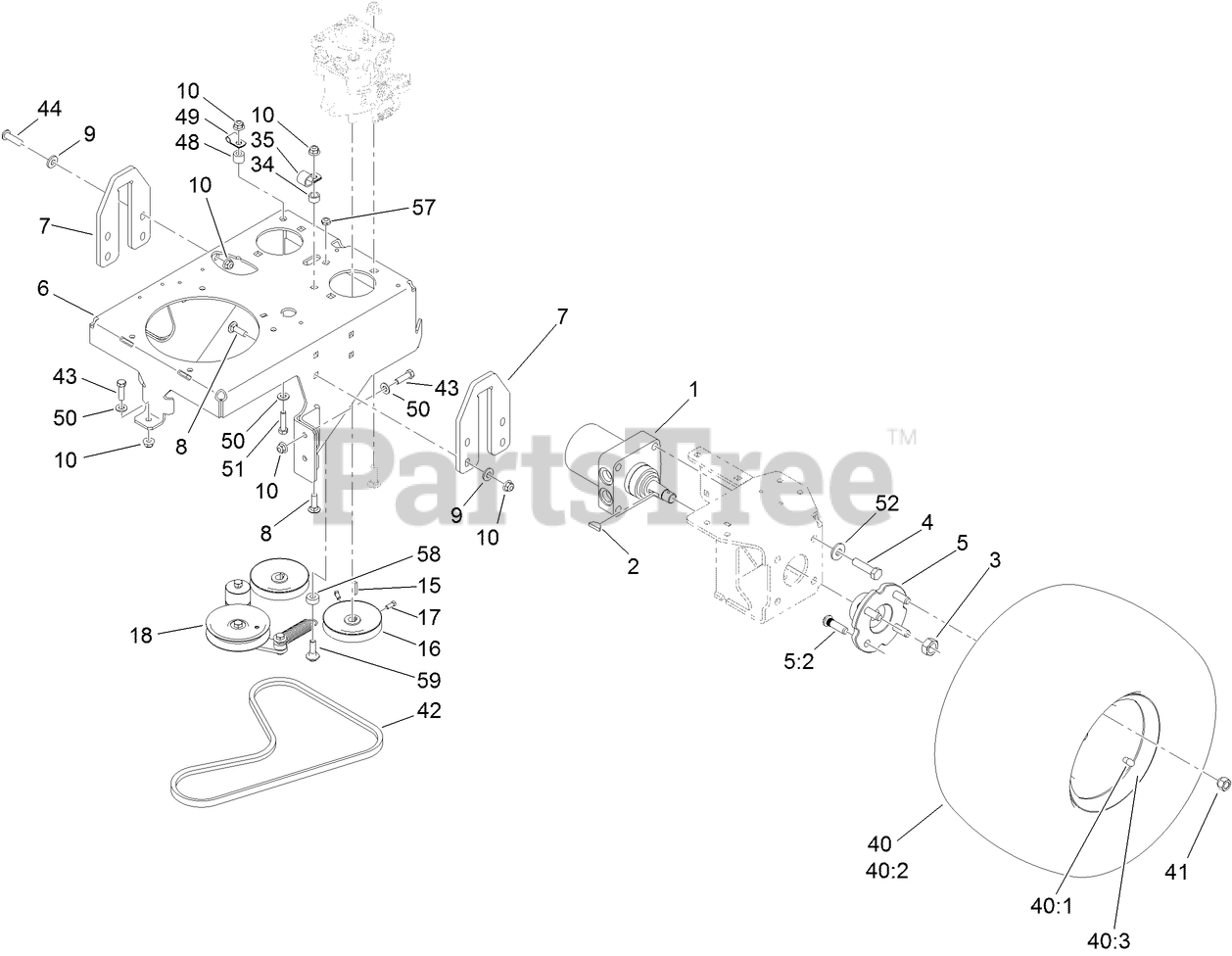

GROUND DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 114-0549

HYD MOTOR ASM

$1311.99

$

In Stock, only 1 left!

0

2

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 6

0

3

Toro 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

4

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

5

Toro 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

5:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

6

Toro 120-6456-01

BASE-ENGINE

$599.99

$

Usually ships in 3-6 days

0

7

Toro 119-8662

PLATE-LIFT

$50.99

$

Usually ships in 3-6 days

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

$5.99

$

In Stock, Qty 11

0

16

Toro 105-5648

PULLEY-PUMP

$125.99

$

Usually ships in 3-6 days

0

17

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

18

PUMP IDLER ASM

Note: Not serviced separately

$

$

Not available

34

Toro 1-653069

SPACER-WHEEL

$12.99

$

Usually ships in 3-6 days

0

35

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

40

Toro 120-6465

WHEEL/TIRE ASM

$285.99

$

Usually ships in 3-6 days

0

40:1

Toro 116-4605

RIM-8 INCH

$108.99

$

Usually ships in 3-6 days

0

40:2

$149.99

$

Usually ships in 3-6 days

0

40:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

41

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

42

Toro 114567

BELT-V, LOWER PTO

$30.99

$

In Stock, Qty 9

0

43

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

44

Toro 3274-63

SCREW-HSBH

$4.99

$

In Stock, only 1 left!

0

48

Toro 121-1760

SPACER

$2.99

$

In Stock, only 2 left!

0

49

Toro 116-3362

CLIP-TUBE

$5.49

$

Usually ships in 3-6 days

0

50

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

51

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

57

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

58

Toro 104-8426

SPACER

$10.99

$

In Stock, only 3 left!

0

59

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 6

0
