79548 - Toro 48" GrandStand Stand-On Mower (SN: 311000001 - 311999999) (2011) GROUND DRIVE ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

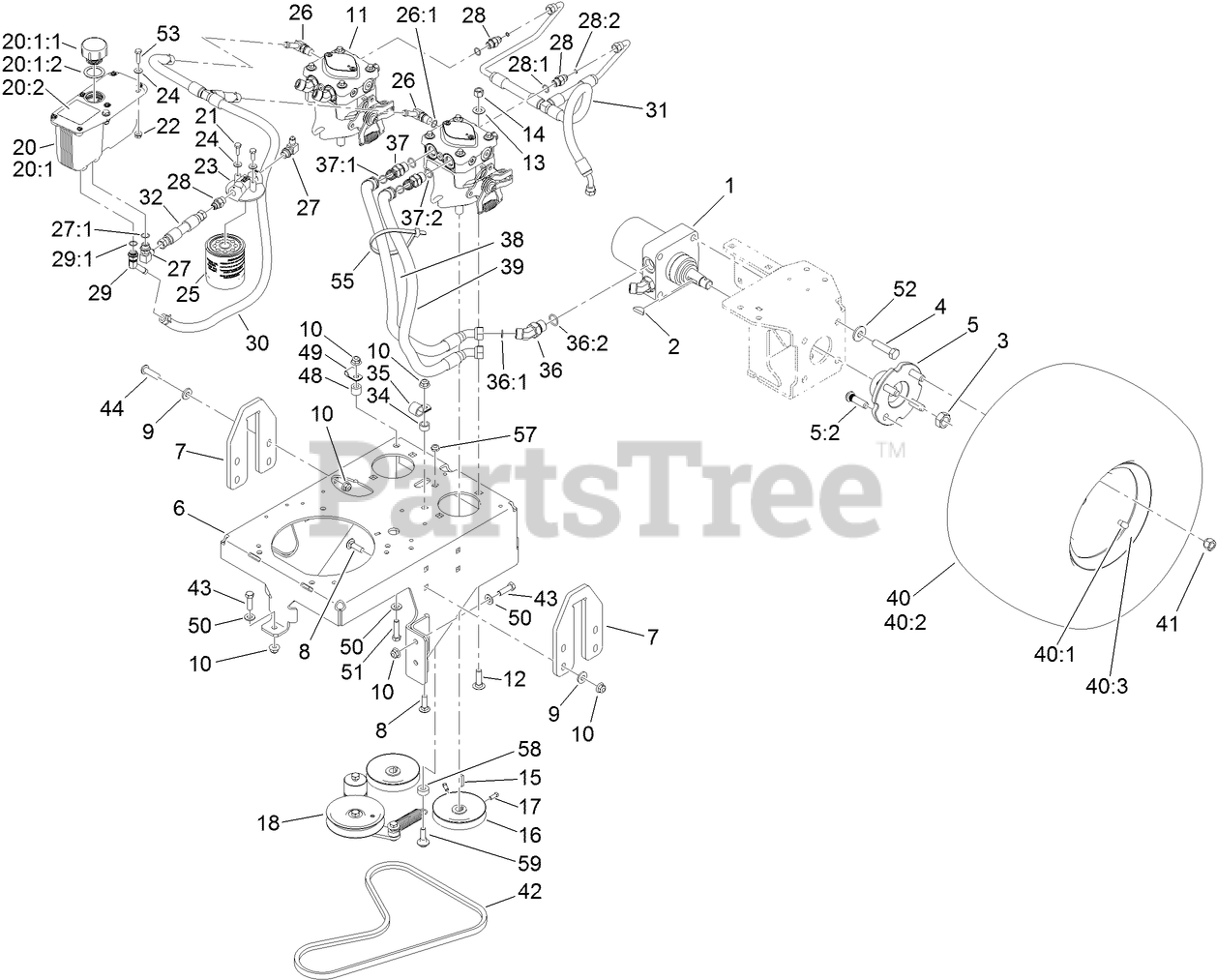

GROUND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-0549

HYD MOTOR ASM

$1381.99

$

In Stock, only 1 left!

0

2

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

3

Toro 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

4

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

5

Toro 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

5:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

6

Toro 119-8710-01

BASE-ENGINE

$

$

Not available

7

Toro 119-8662

PLATE-LIFT

$50.99

$

Usually ships in 3-6 days

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 119-7375

HYDRAULIC PUMP ASM
(Superseded to 125-4672)

$1176.99

$

Usually ships in 3-6 days

0

12

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

13

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

16

Toro 105-5648

PULLEY-PUMP

$125.99

$

Usually ships in 3-6 days

0

17

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

18

PUMP IDLER ASM

Note: Not serviced separately

$

$

Not available

20

Toro 107-8433

HYD RESERVOIR ASM

$384.99

$

Usually ships in 3-6 days

0

20:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

20:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$32.99

$

In Stock, Qty 20+

0

20:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

20:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 20+

0

23

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 114-3494

ELEMENT-FILTER, 25 MICRON

$17.99

$

In Stock, Qty 6

0

26

Toro 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

26:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

27

Toro 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

27:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28

Toro 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 3 left!

0

28:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

29

Toro 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

30

Toro 116-2579

TANK HOSE ASM

$45.99

$

Usually ships in 3-6 days

0

31

Toro 119-8732

CHARGE HOSE ASM

$121.99

$

Usually ships in 3-6 days

0

32

Toro 116-2604

HYD HOSE ASM

$22.99

$

Usually ships in 3-6 days

0

34

Toro 1-653069

SPACER-WHEEL

$12.99

$

Usually ships in 3-6 days

0

35

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

36

Toro 340-89

FITTING-HYD, 45 DEG

$44.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

36:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

37

Toro 340-101

FITTING-HYD, 45 DEG

$37.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

37:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

38

Toro 117-0442

HYD HOSE ASM
(Superseded to 120-6491)

$173.99

$

In Stock, only 1 left!

0

39

Toro 117-0449

HYD HOSE ASM
(Superseded to 120-6492)

$173.99

$

Usually ships in 3-6 days

0

40

Toro 117-0429

WHEEL ASM

$386.99

$

Usually ships in 3-6 days

0

40:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

40:2

Toro 117-0428

TIRE

$265.99

$

Usually ships in 3-6 days

0

40:3

Toro 106-8133

RIM-8 INCH

$

$

Not available

41

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

42

Toro 114567

BELT-V, LOWER PTO

$30.99

$

In Stock, Qty 13

0

43

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

44

Toro 3274-63

SCREW-HSBH

$4.99

$

In Stock, only 1 left!

0

48

Toro 108326

SPACER-PIVOT

$23.99

$

Usually ships in 3-6 days

0

49

Toro 116-3362

CLIP-TUBE

$5.49

$

Usually ships in 3-6 days

0

50

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

53

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

55

Toro 103-2446

TIE-CABLE

$2.99

$

Usually ships in 3-6 days

0

57

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

58

Toro 104-8426

SPACER

$10.99

$

In Stock, only 1 left!

0

59

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0
