79534 - Toro 36" GrandStand Stand-On Mower (SN: 314000001 - 314999999) (2014) MAIN FRAME ASSEMBLY Parts Diagram

36" GrandStand Stand-On Mower

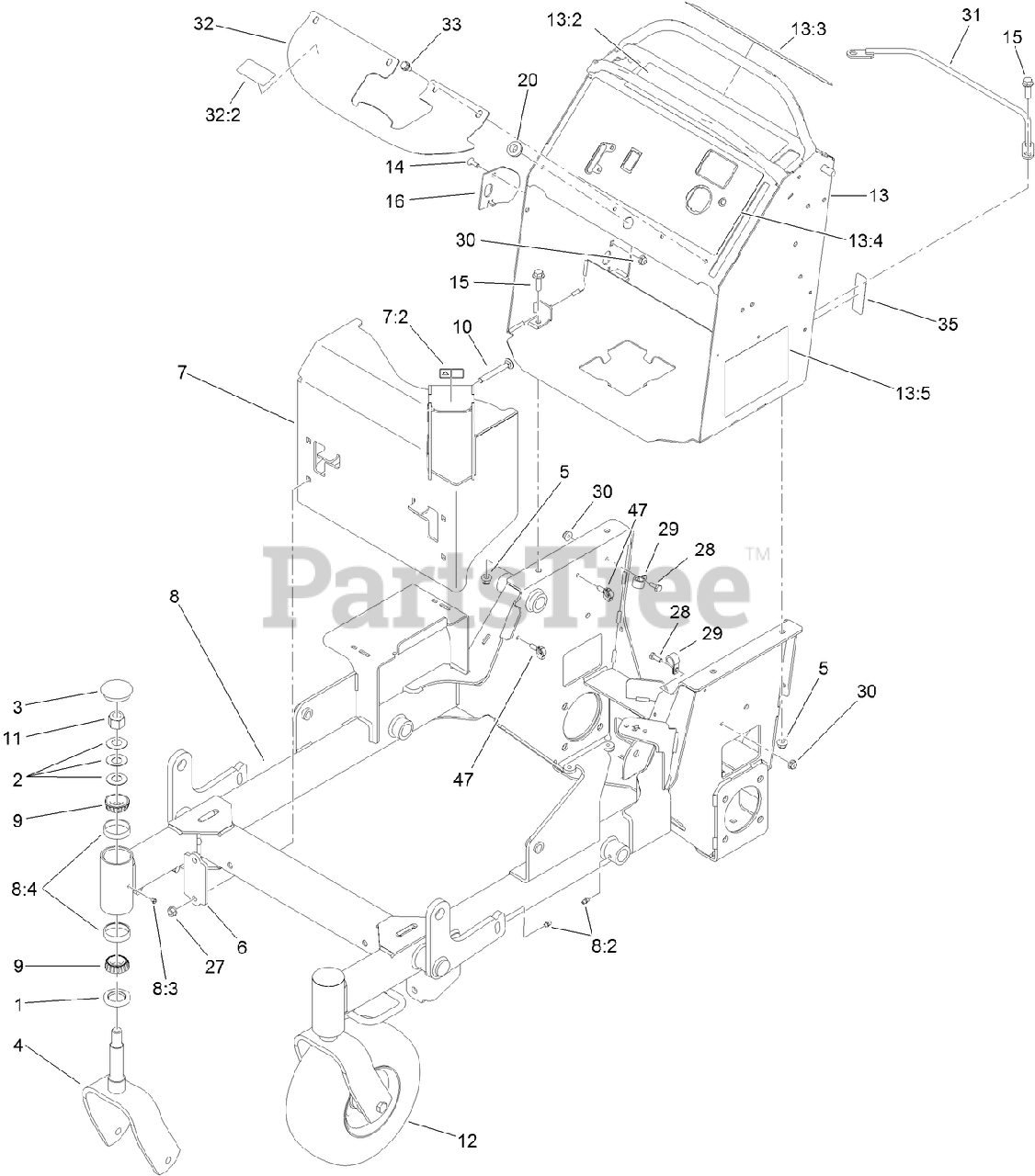

MAIN FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

2

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

4

Toro 121-7988-01

FORK-CASTER

$201.99

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 119-7303-01

BRACKET-MOUNTING, GUARD

$13.99

$

Usually ships in 3-6 days

0

7

Toro 116-8739

MUFFLER GUARD ASM

$237.99

$

Usually ships in 3-6 days

0

7:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

8

Toro 125-4650

FRAME ASM

$1855.99

$

Usually ships in 3-6 days

0

8:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8:3

$5.49

$

In Stock, Qty 11

0

8:4

Toro 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

9

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

10

Toro 3231-10

SCREW-CARR

$4.49

$

In Stock, only 4 left!

0

11

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

12

Toro 130-4558

WHEEL/TIRE AND BEARING ASM

$225.99

$

Usually ships in 3-6 days

0

13

Toro 125-4675

CONTROL TOWER ASM

$809.99

$

Usually ships in 3-6 days

0

13:2

Toro 117-0454

DECAL-OPC

$42.99

$

Usually ships in 3-6 days

0

13:3

Toro 117-3626

DECAL-WARNING

$37.99

$

Usually ships in 3-6 days

0

13:4

Toro 125-4679

DECAL-PANEL, CONTROL

$54.99

$

Usually ships in 3-6 days

0

13:5

Toro 119-0185

DECAL-SERVICE/SPARK ARREST

$12.99

$

Usually ships in 3-6 days

0

14

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

15

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

16

Toro 119-7312

PLATE-STRIKER

$21.99

$

Usually ships in 3-6 days

0

20

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

30

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Toro 119-1878-03

RETAINER-CABLE

$45.99

$

Usually ships in 3-6 days

0

32

Toro 119-0239

COVER-TANK

$77.99

$

Usually ships in 3-6 days

0

32:2

Toro 116-3290

DECAL-FILL, FUEL

$3.49

$

In Stock, only 1 left!

0

33

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

35

Toro 116-3267

DECAL-FUSE

$5.49

$

Usually ships in 3-6 days

0

47

Toro 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0
