79534 - Toro 36" GrandStand Stand-On Mower (SN: 313000001 - 313999999) (2013) FUEL TANK ASSEMBLY Parts Diagram

36" GrandStand Stand-On Mower

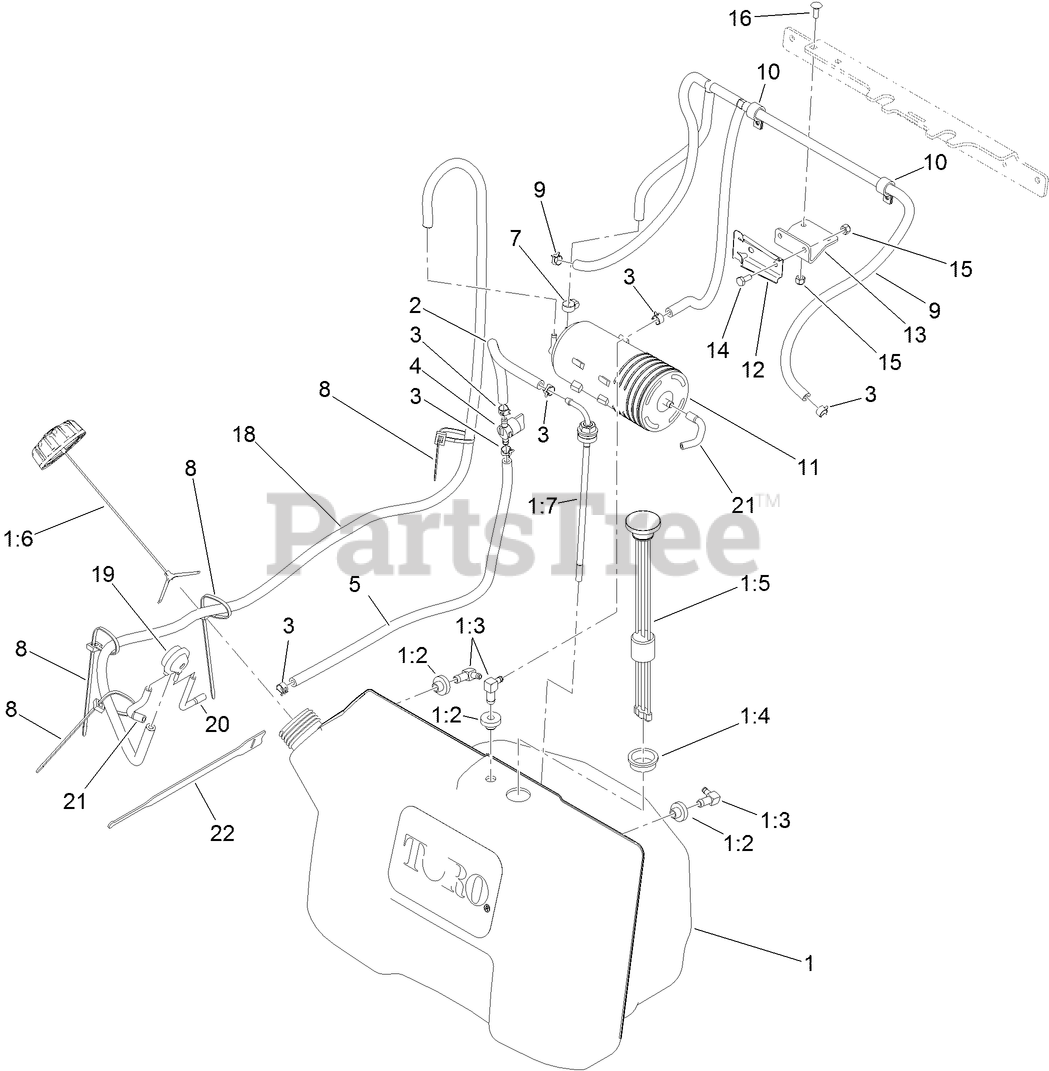

FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 119-7340

TANK ASM

$506.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

1:3

Toro 1-643172

ELBOW-90 DEG

$11.99

$

In Stock, only 2 left!

0

1:4

Toro 95-8972

GROMMET

$11.99

$

In Stock, Qty 12

0

1:5

Toro 117-9719

GUAGE-FUEL

$175.99

$

Usually ships in 3-6 days

0

1:6

Toro 116-1704

CAP-FUEL, RATCHETING
(Superseded to 126-1789)

$37.99

$

In Stock, only 1 left!

0

1:7

Toro 116-3408

FITTING-FUEL, BULKHEAD

$45.99

$

Usually ships in 3-6 days

0

2

Toro 109-0297

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

5

Toro 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

7

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

VENT HOSE ASM

Note: Not serviced separately

$

$

Not available

10

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

11

Toro 117-1221

CANISTER-CARBON, 800CC

$75.99

$

Usually ships in 3-6 days

0

12

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

13

Toro 119-0207-01

BRACKET-CANISTER

$20.99

$

Usually ships in 3-6 days

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 120-6446

HOSE-FUEL

$34.99

$

Usually ships in 3-6 days

0

19

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

20

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

21

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

22

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0
