79518 - Toro 48" GrandStand Stand-On Mower (SN: 400000000 - 403253999) Ground Drive Assembly Parts Diagram

48" GrandStand Stand-On Mower

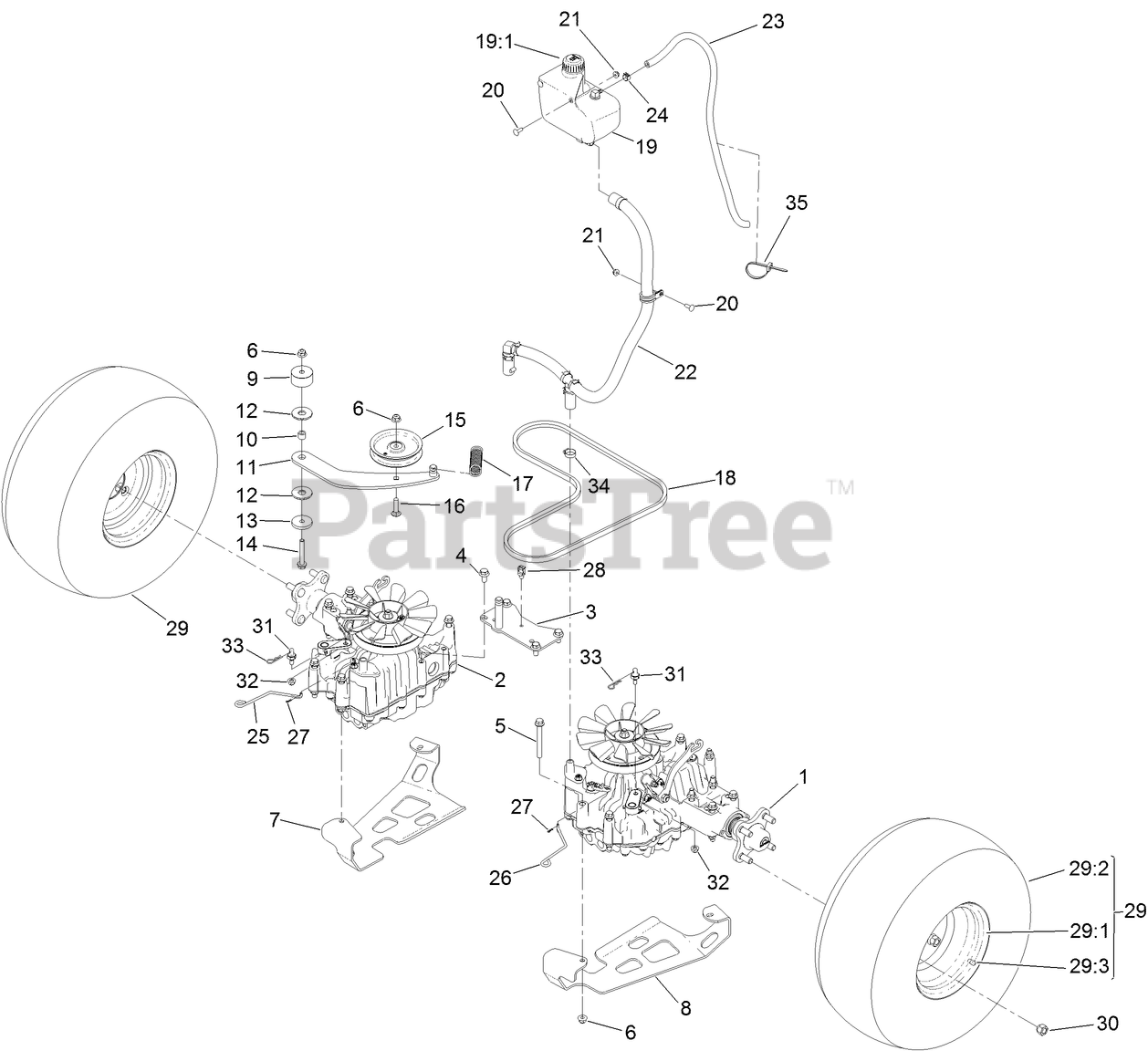

Ground Drive Assembly Parts Diagram

  • Title

1

Toro 136-4101

LH TRANSMISSION ASM
(Superseded to 138-5838)

$2746.99

$

Usually ships in 3-6 days

0

2

Toro 136-4102

RH TRANSMISSION ASM
(Superseded to 138-5839)

$2746.99

$

Usually ships in 3-6 days

0

3

Toro 131-1131-03

SUPPORT-TRANSAXLE

$42.99

$

Usually ships in 3-6 days

0

4

Toro 93-2569

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 116-4701

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 131-7405-03

PLATE-SKID, TRANSMISSION (RH)

$86.99

$

Usually ships in 3-6 days

0

8

Toro 131-7404-03

PLATE-SKID, TRANSMISSION (LH)

$86.99

$

Usually ships in 3-6 days

0

9

Toro 117-5351

SPACER

$22.99

$

Usually ships in 3-6 days

0

10

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

11

Toro 131-1175

ARM-IDLER

$61.99

$

Usually ships in 3-6 days

0

12

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 5

0

13

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 4 left!

0

14

Toro 3234-39

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

15

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

16

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Toro 132-1184

SPRING-EXTENSION

$21.99

$

In Stock, only 1 left!

0

18

Toro 131-1124

BELT-V

$33.99

$

In Stock, only 3 left!

0

19

Toro 132-1135

TANK-HYD

$134.99

$

Usually ships in 3-6 days

0

19:1

Toro 133-8677

CAP-VENTED

$17.99

$

In Stock, only 2 left!

0

20

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

21

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 131-7427

HYD HOSE ASM
(Superseded to 145-3466)

$108.99

$

In Stock, only 1 left!

0

23

Toro 109-0309

HOSE-FUEL

$19.99

$

Usually ships in 3-6 days

0

24

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

25

Toro 131-7469

ROD-BYPASS, RH

$18.99

$

Usually ships in 3-6 days

0

26

Toro 131-7470

ROD-BYPASS, LH

$18.99

$

Usually ships in 3-6 days

0

27

Toro 108-2992

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

28

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

29

Toro 132-7574

WHEEL AND TIRE ASM

$351.99

$

In Stock, only 1 left!

0

29:1

Toro 133-1414

RIM-8 INCH, GRAY

$128.99

$

In Stock, only 4 left!

0

29:2

Toro 133-1417

TIRE
(Superseded to 120-6466)

$149.99

$

Usually ships in 3-6 days

0

29:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

30

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

31

Toro 132-7584

SPACER-HEX

$30.99

$

Usually ships in 3-6 days

0

32

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

33

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

34

Toro 2412-141

CLAMP-DRIVE, WORM

$2.99

$

Usually ships in 3-6 days

0

35

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
