79504 - Toro 48" GrandStand Stand-On Mower (SN: 403290000 - 404314999) 48 Inch Deck Assembly Parts Diagram

48" GrandStand Stand-On Mower

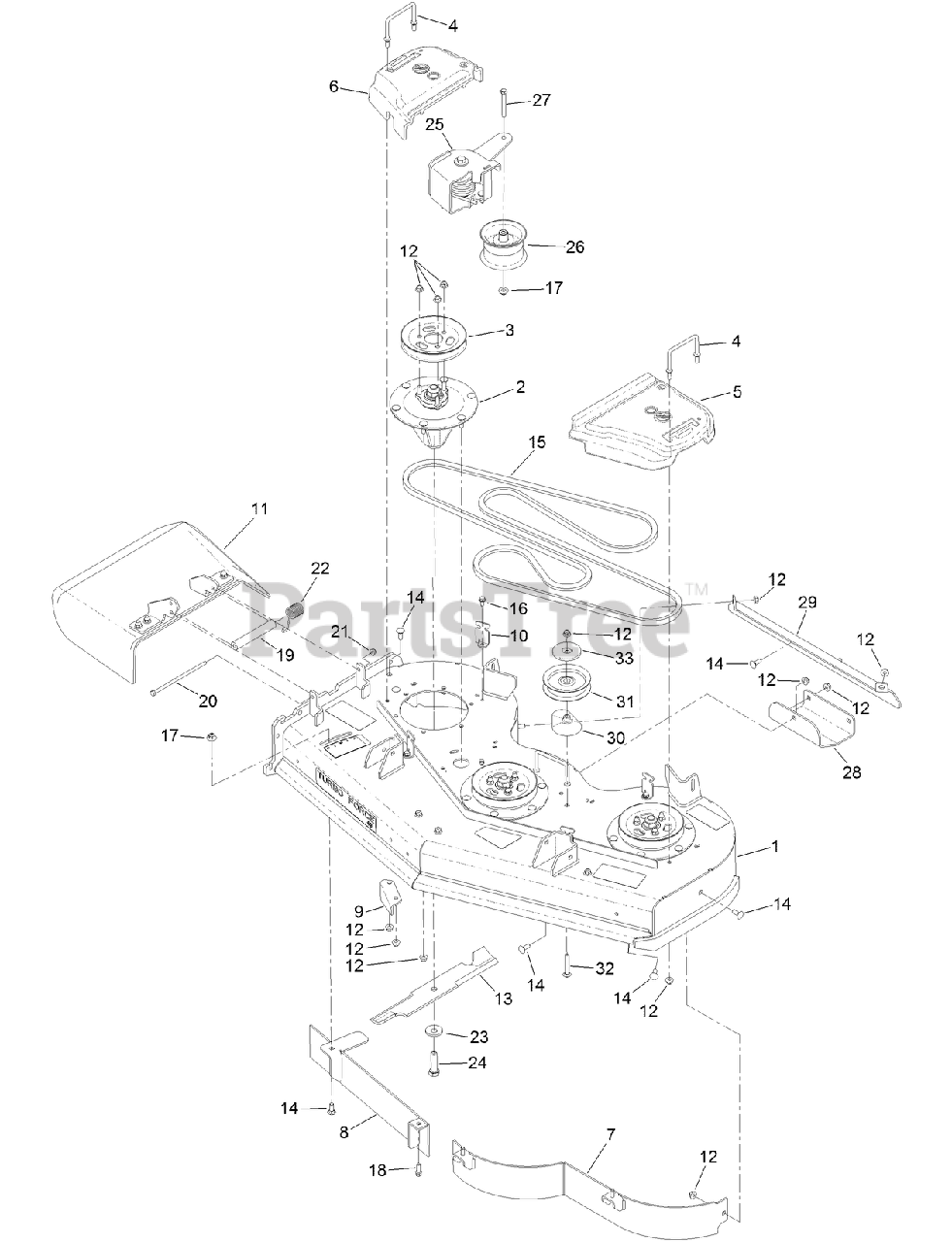

48 Inch Deck Assembly Parts Diagram

  • Title
1

Toro 127-1931

DECK ASM

$2015.99

$

Usually ships in 3-6 days

0

2

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, Qty 12

0

3

Toro 120-6433

PULLEY

$44.99

$

In Stock, only 1 left!

0

4

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 10

0

5

Toro 109-6936

COVER-BELT, LH

$38.99

$

In Stock, Qty 12

0

6

Toro 109-6935

COVER-BELT, RH

$38.99

$

In Stock, Qty 7

0

7

Toro 117-0410-01

48 INCH BAFFLE ASM

$271.99

$

Usually ships in 3-6 days

0

8

$132.99

$

Usually ships in 3-6 days

0

9

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

10

Toro 117-5758-03

BRACKET-COVER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 120-2451

DEFLECTOR ASM

$239.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$30.99

$

In Stock, Qty 20+

0

14

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 131-1121

BELT-V

$160.99

$

In Stock, Qty 13

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

19

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0

20

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, Qty 5

0

23

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 20+

0

24

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

25

Toro 136-7395

IDLER TORSION ASM
(Superseded to 145-3450)

$240.99

$

In Stock, only 1 left!

0

26

Toro 127-1971

PULLEY-IDLER

$126.99

$

In Stock, Qty 5

0

27

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

$84.99

$

Usually ships in 3-6 days

0

29

Toro 130-6649-01

BRACKET-SKID

$73.99

$

Usually ships in 3-6 days

0

30

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

31

Toro 132-4718

PULLEY-IDLER, FLAT

$33.99

$

In Stock, Qty 20+

0

32

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

33

Toro 132-5154

SHIELD-DUST

$14.99

$

In Stock, Qty 6

0
