79504 - Toro 48" GrandStand Stand-On Mower (SN: 400000000 - 403289999) Wire Harness Assembly Parts Diagram

48" GrandStand Stand-On Mower

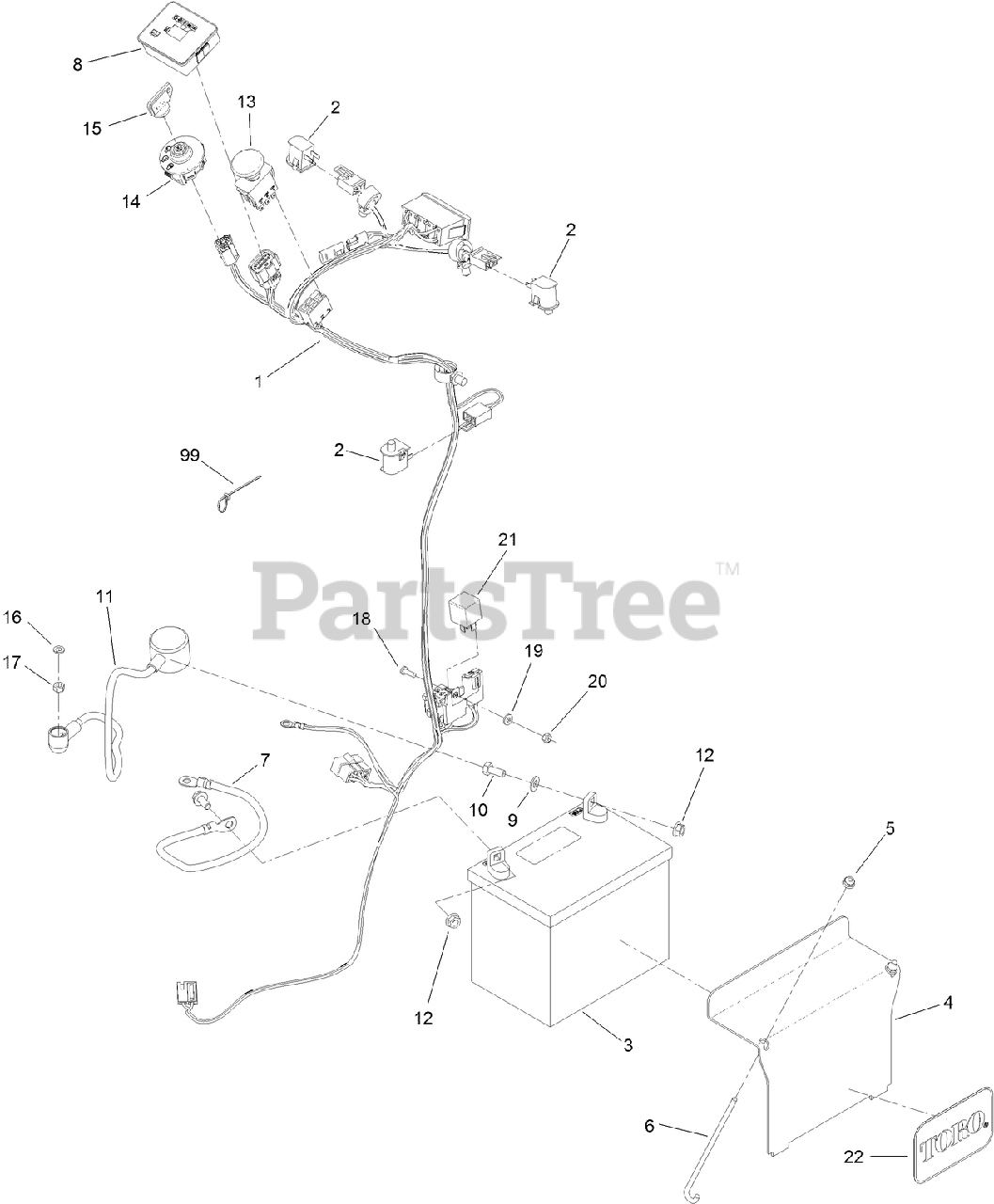

Wire Harness Assembly Parts Diagram

  • Title

1

Toro 136-5423

HARNESS-WIRE

$425.99

$

Usually ships in 3-6 days

0

2

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

3

Toro 104-8162

BATTERY-DRY

$

$

Not available

4

Toro 130-6635-01

BRACKET-HOLD DOWN, BATTERY

$29.99

$

Usually ships in 3-6 days

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

7

Toro 112-7063

CABLE-BATTERY, BLACK

$47.99

$

Usually ships in 3-6 days

0

8

Toro 130-6570

MODULE-METER, HOUR

$155.99

$

In Stock, only 3 left!

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

In Stock, Qty 7

0

12

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 114-0279

SWITCH-PTO, ON-ON

$59.99

$

In Stock, Qty 18

0

14

Toro 117-2222

See Supercession: 137-4101
(Superseded to 137-4101)

$34.99

$

In Stock, Qty 19

0

15

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

16

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

17

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

18

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

22

Toro 67-1300

DECAL

$31.99

$

In Stock, only 2 left!

0

99

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
