79504 - Toro 48" GrandStand Stand-On Mower (SN: 400000000 - 403289999) Frame Assembly Parts Diagram

48" GrandStand Stand-On Mower

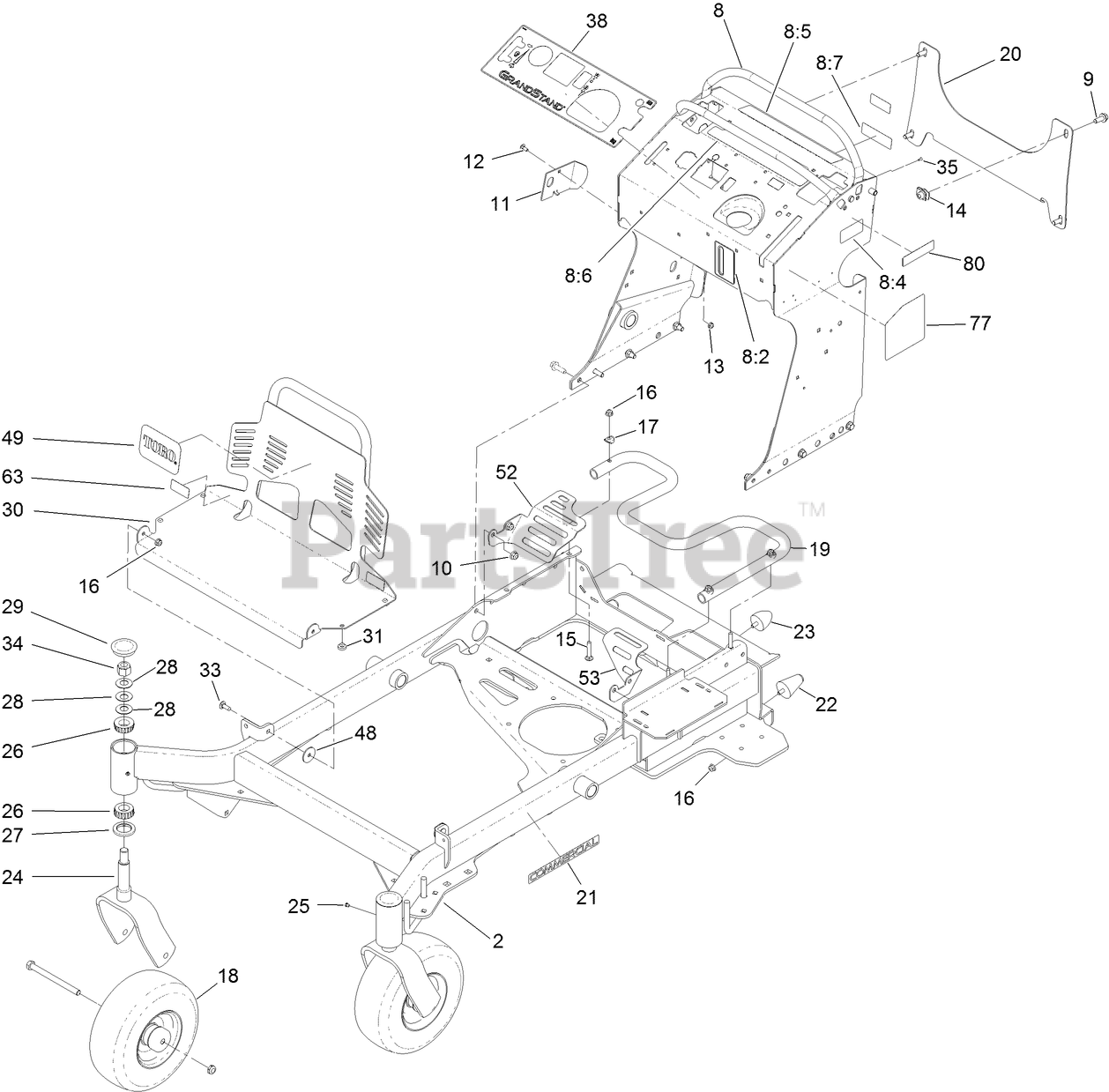

Frame Assembly Parts Diagram

  • Title

2

Toro 131-7423-01

FRAME

$1759.99

$

Usually ships in 3-6 days

0

8

Toro 132-7537

TOWER DECAL ASM
(Superseded to 140-4283)

$941.99

$

Usually ships in 3-6 days

0

8:2

Toro 131-3524

DECAL-LEVEL, OIL

$

$

Not available

8:4

Toro 116-8775

DECAL-FILL, FUEL

$9.49

$

Usually ships in 3-6 days

0

8:5

Toro 136-5438

DECAL-CAUTION

$

$

Not available

8:6

Toro 131-3526

DECAL-CONTROLS

$12.99

$

Usually ships in 3-6 days

0

8:7

Toro 131-3528

DECAL-FUSE

$

$

Not available

9

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 19

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 131-7455

PLATE-STRIKER

$15.99

$

Usually ships in 3-6 days

0

12

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 9

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

15

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 12

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 107-3844

WASHER

$1.99

$

In Stock, Qty 8

0

18

Toro 130-4558

WHEEL/TIRE AND BEARING ASM

$239.99

$

In Stock, Qty 5

0

19

Toro 132-5161-01

TUBE-MOUNT, FUEL TANK

$72.99

$

Usually ships in 3-6 days

0

20

Toro 132-1145-03

BRACKET-CROSS

$53.99

$

Usually ships in 3-6 days

0

21

Toro 117-3591

DECAL-COMMERCIAL

$17.99

$

In Stock, only 2 left!

0

22

Toro 114-1925

BUMPER-RUBBER

$27.99

$

In Stock, Qty 13

0

23

Toro 114-1926

BUMPER-RUBBER

$29.99

$

In Stock, Qty 20+

0

24

Toro 121-7988-01

FORK-CASTER
(Superseded to 147-6343-01)

$189.99

$

Usually ships in 3-6 days

0

25

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

26

Toro 1-543509

BEARING-ROLLER, TAPERED

$14.99

$

In Stock, Qty 20+

0

27

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

28

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

29

Toro 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

30

Toro 132-5150-03

GUARD-ENGINE
(Superseded to 161-3586)

$289.99

$

Usually ships in 0 days

0

31

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

33

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

34

Toro 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 20+

0

35

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

38

Toro 131-3525

DECAL-PANEL, CONTROL

$49.99

$

Usually ships in 3-6 days

0

48

Toro 107-3002

WASHER-NYLON

$3.49

$

In Stock, only 4 left!

0

49

Toro 105-8278

DECAL

$12.99

$

Usually ships in 3-6 days

0

52

Toro 132-7578-01

GUARD-FAN, RH

$38.99

$

Usually ships in 3-6 days

0

53

Toro 132-7598-01

GUARD-FAN, LH

$26.99

$

Usually ships in 3-6 days

0

63

Toro 133-4641

DECAL-WARNING, NO RIDERS

$2.99

$

Usually ships in 3-6 days

0

77

Toro 131-3529

DECAL-SERVICE AID

$10.99

$

Usually ships in 3-6 days

0

80

Toro 117-2718

DECAL-ARRESTER, SPARK

$8.49

$

In Stock, only 2 left!

0
