795 (190-795-100) - Cub Cadet 26" Mower Deck (1986) 26" Side Discharge Mowing Deck Parts Diagram

26" Mower Deck

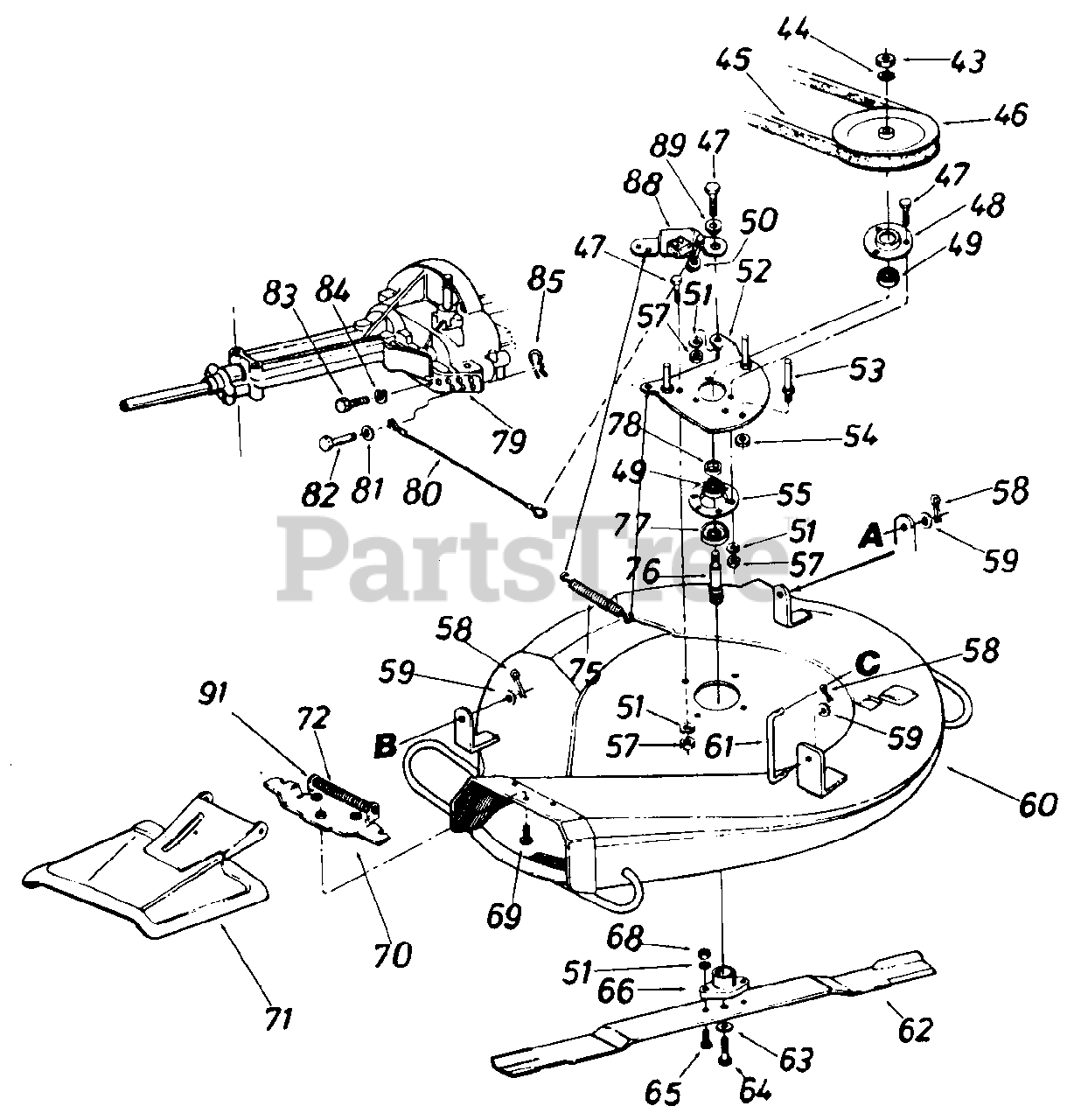

26" Side Discharge Mowing Deck Parts Diagram

  • Title

43

Cub Cadet 712-0318

NUT-HEX JAM 5/8-18

$3.49

$

In Stock, Qty 12

0

44

Cub Cadet 736-0317

WASHER-BELL

$7.99

$

In Stock, Qty 20+

0

45

Cub Cadet 754-0264

BELT-V 1/2 X 52
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 756-0485

PULLEY-1/2 V

$

$

Not available

47

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 15296

HOUSING-BRG
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

49

Cub Cadet 741-0919

BEARING-BALL
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

50

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet 15919

PLATE-MTG-SPINDLE

$

$

Currently unavailable

53

Cub Cadet 711-0780

STUD-3/8-16 X 3.0 LG

$

$

Not available

54

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

55

Cub Cadet 08253

HOUSING-BRG
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

57

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 714-0145

PIN-INTERN COT

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

Note: .

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 16498

DECK ASSEMBLY-26IN

$

$

Currently unavailable

61

Cub Cadet 747-0428

LINK-DECK

$

$

Currently unavailable

62

Cub Cadet 742-0255

BLADE-26IN

$

$

Not available

63

Cub Cadet 736-0356

WASHER-BELL .390 ID X 1.375 X .062
(Superseded to 936-0356)

$

$

Not available

64

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 748-0300

ADAPTER-BLADE

$13.99

$

In Stock, only 4 left!

0

68

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

69

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 11396

ADAPTER

$

$

Not available

71

Cub Cadet 11634

COVER-CHUTE-COMP

$

$

Not available

72

Cub Cadet 732-0261

SPRING-TORSION

$

$

Not available

75

Cub Cadet 732-0157

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 738-0578

SPINDLE-BLADE

$

$

Not available

77

Cub Cadet 13703

SHIELD-BRG

$

$

Not available

78

Cub Cadet 750-0456

SPACER

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 15625

GUARD-BELT-LOWER

$

$

Not available

80

Cub Cadet 727-0290

CABLE ASSY-BRAKE
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

82

Cub Cadet 711-0701

PIN-CLEVIS-1/4X1/2
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

83

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

84

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

85

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

88

Cub Cadet 16053

BRACKET ASSY

$

$

Not available

89

Cub Cadet 748-0234

SPACER-SHLD

$4.49

$

In Stock, Qty 20+

0

91

Cub Cadet 711-0571

PIN-HINGE

$

$

Not available
