79487 - Toro ROPS Kit for TimeCutter Max or Titan Mower (SN: 400000000 - 999999999) ROPS Kit Assembly Parts Diagram

ROPS Kit for TimeCutter Max or Titan Mower

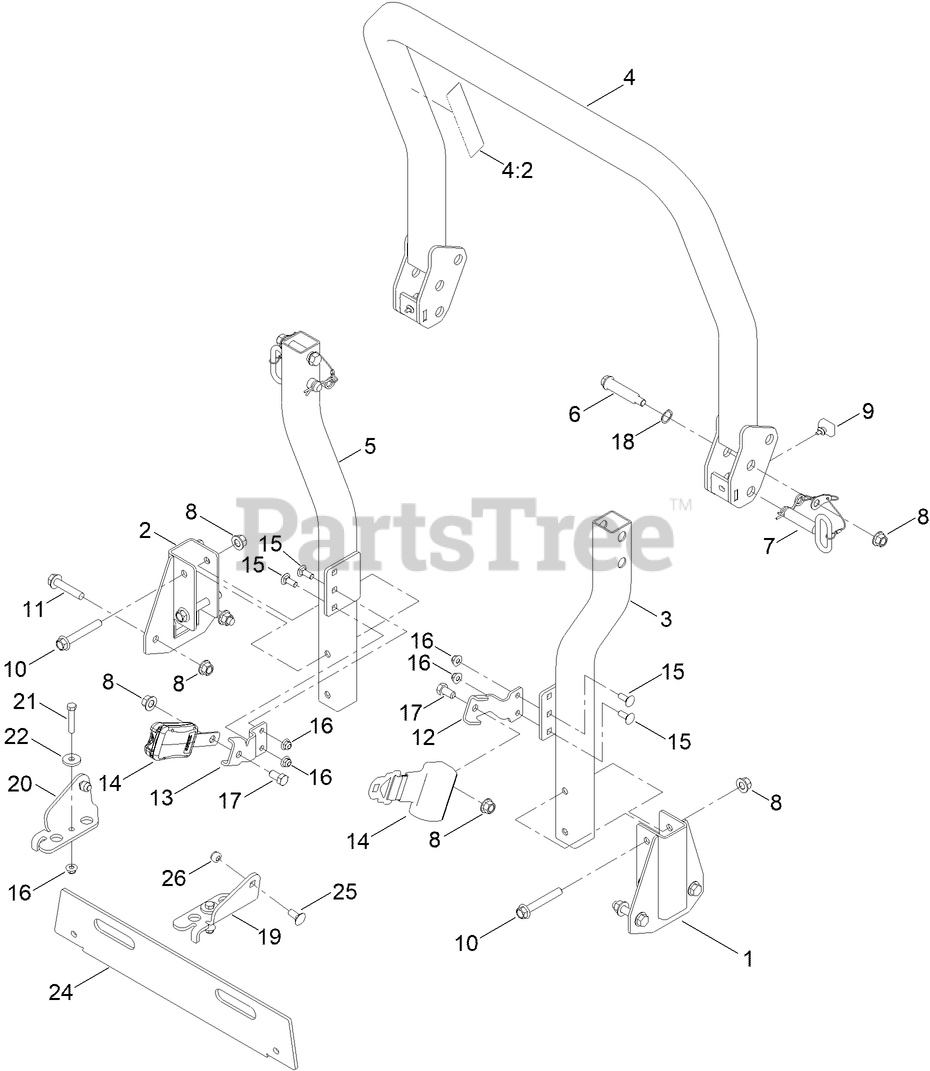

ROPS Kit Assembly Parts Diagram

  • Title

1

Toro 147-3036-03

BRACKET ROPS LH [BLACK]

$

$

Currently unavailable

2

Toro 147-3037-03

BRACKET ROPS RH [BLACK]

$

$

Currently unavailable

3

Toro 161-4506-03

TUBE-ROPS, LOWER LH [BLACK]

$

$

Currently unavailable

4

Toro 161-4508

TUBE-ROPS, UPPER ASM

$

$

Currently unavailable

4:2

Toro 107-3069

DECAL-WARNING

$22.99

$

Usually ships in 3-6 days

0

5

Toro 161-4507-03

TUBE-ROPS, LOWER RH [BLACK]

$

$

Currently unavailable

6

Toro 161-4505

BOLT-SHOULDER

$11.99

$

Usually ships in 0 days

0

7

Toro 161-4477

PIN-ROPS, ASM

$34.99

$

Usually ships in 0 days

0

8

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

9

Toro 109-5337

BUMPER-ROPS

$6.49

$

In Stock, only 4 left!

0

10

Toro 114-8419

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

11

Toro 127-7444

SCREW-HHF

$9.99

$

Usually ships in 3-6 days

0

12

Toro 161-4453-03

BRACKET-SEAT BELT, LH

$

$

Currently unavailable

13

Toro 161-4454-03

BRACKET-SEATBELT, RH

$

$

Currently unavailable

14

Toro 109-9805

SEAT BELT KIT

$311.99

$

Usually ships in 3-6 days

0

15

Toro 139-2590

Screw

$1.49

$

Usually ships in 3-6 days

0

16

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 16

0

17

Toro 139-2628

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

18

Toro 119-4164

WASHER-WAVE

$3.49

$

In Stock, only 3 left!

0

19

Toro 139-5821-03

BRACKET - LH SEAT BELT

$33.99

$

Usually ships in 3-6 days

0

20

Toro 139-5822-03

BRACKET - RH SEAT BELT

$33.99

$

Usually ships in 3-6 days

0

21

Toro HDW07736

HHCS 3/8-16 X 2, GR5, CZ

$1.49

$

Usually ships in 3-6 days

0

22

Toro 140-5063

WASHER-HARDENED, CZ

$2.99

$

In Stock, only 1 left!

0

24

Toro 147-7582-03

WEIGHT-BAGGER

$36.99

$

Usually ships in 0 days

0

25

Toro 3232-1

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

26

Toro 119-4039

NUT-HEX, NI

$0.99

$

Usually ships in 0 days

0
